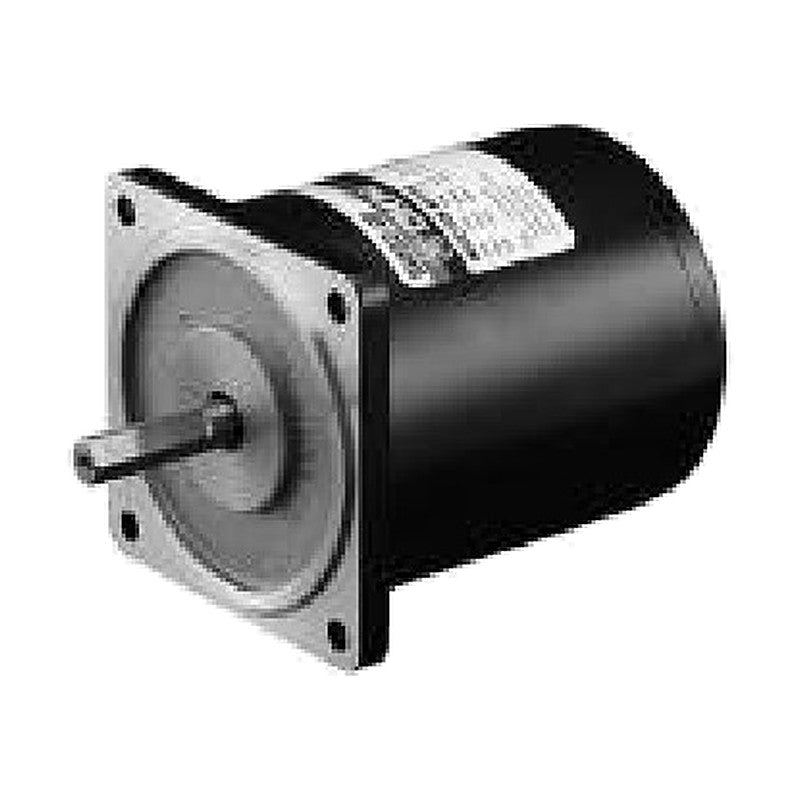

DKM 9ID-40-A 2-Pole Induction Motor 40W, 90 mm Frame

DKM 9ID-40-A 2-Pole Induction Motor 40W, 90 mm Frame

40 W single- and three-phase 2-pole AC induction motor with 90 mm square frame for high-speed (approx. 2,700-3,300 r/min) unidirectional continuous operation; D-cut or key output shaft.

Key features

  • 2-pole design for high-speed continuous operation
  • Single-phase capacitor-run and three-phase versions
  • D-cut or key output shaft for direct drive (no gearbox)
  • Lead-wire or terminal-box connection

Specifications

Output 40 W
Frame size 90 mm square
Poles 2
Duty Continuous
Rated speed 2600 / 2700 / 3200 / 3300 r/min (depends on voltage/frequency)
Rated torque 0.119-0.15 N·m
Starting torque 0.135-0.686 N·m
Shaft options D-cut, key
Connection Lead wire or terminal box (-T)
Insulation class Class B (130 °C)
Insulation resistance 100 MΩ min. at 500 VDC megger (windings to frame)
Dielectric strength 1.5 kV at 50/60 Hz for 1 minute
DKM 9ID-40-A 2-Pole Induction Motor 40W, 90 mm Frame
9IDD1-40-A Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 3300 r/min | Rated torque: 0.119 N·m | Rated current: 1 A | Starting torque: 0.165 N·m | Capacitor: 12.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDA-40-A; terminal-box version 9IDD1-40-AT
9IDK1-40-A Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 3300 r/min | Rated torque: 0.119 N·m | Rated current: 1 A | Starting torque: 0.165 N·m | Capacitor: 12.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKA-40-A; terminal-box version 9IDK1-40-AT
9IDDB-40-A Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 1-1.1 A | Starting torque: 0.135-0.14 N·m | Capacitor: 12.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDB-40-AT
9IDKB-40-A Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 1-1.1 A | Starting torque: 0.135-0.14 N·m | Capacitor: 12.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKB-40-AT
9IDDC-40-A Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 0.46-0.57 A | Starting torque: 0.17-0.185 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDC-40-AT
9IDKC-40-A Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 0.46-0.57 A | Starting torque: 0.17-0.185 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKC-40-AT
9IDD2-40-A Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.122 N·m | Rated current: 0.63 A | Starting torque: 0.182 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDD-40-A; terminal-box version 9IDD2-40-AT
9IDK2-40-A Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.122 N·m | Rated current: 0.63 A | Starting torque: 0.182 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKD-40-A; terminal-box version 9IDK2-40-AT
9IDDE-40-A Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 2700 r/min | Rated torque: 0.144 N·m | Rated current: 0.49-0.52 A | Starting torque: 0.175-0.205 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDE-40-AT
9IDKE-40-A Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 2700 r/min | Rated torque: 0.144 N·m | Rated current: 0.49-0.52 A | Starting torque: 0.175-0.205 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKE-40-AT
9IDD3-40-A Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 0.28-0.3 A | Starting torque: 0.415-0.563 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDG-40-A; terminal-box version 9IDD3-40-AT
9IDK3-40-A Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 0.28-0.3 A | Starting torque: 0.415-0.563 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKG-40-A; terminal-box version 9IDK3-40-AT
9IDDJ-40-A Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 2600 / 3200 / 2700 r/min | Rated torque: 0.122-0.15 N·m | Rated current: 0.27-0.32 A | Starting torque: 0.37-0.516 N·m | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDJ-40-AT
9IDKJ-40-A Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 2600 / 3200 / 2700 r/min | Rated torque: 0.122-0.15 N·m | Rated current: 0.27-0.32 A | Starting torque: 0.37-0.516 N·m | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKJ-40-AT
9IDD4-40-A Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 0.18-0.2 A | Starting torque: 0.496-0.686 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDK-40-A; terminal-box version 9IDD4-40-AT
9IDK4-40-A Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 0.18-0.2 A | Starting torque: 0.496-0.686 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKK-40-A; terminal-box version 9IDK4-40-AT
9IDD5-40-A Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 0.17-0.18 A | Starting torque: 0.495-0.68 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDL-40-A; terminal-box version 9IDD5-40-AT
9IDK5-40-A Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 0.17-0.18 A | Starting torque: 0.495-0.68 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKL-40-A; terminal-box version 9IDK5-40-AT
AC Induction MotorsDKM
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9ID-40-A 2-Pole Induction Motor 40W, 90 mm Frame

Brand DKM·AC Induction Motors

Available part numbers (18)

9IDD1-40-A, 9IDK1-40-A, 9IDDB-40-A, 9IDKB-40-A, 9IDDC-40-A, 9IDKC-40-A, 9IDD2-40-A, 9IDK2-40-A, 9IDDE-40-A, 9IDKE-40-A + 8 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 9ID-40-A 2-Pole Induction Motor 40W, 90 mm Frame
0 selected
RFQ List (0)
Product codeSpec
9IDD1-40-APower supply: 1ø AC 110 V, 60 Hz | Rated speed: 3300 r/min | Rated torque: 0.119 N·m | Rated current: 1 A | Starting torque: 0.165 N·m | Capacitor: 12.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDA-40-A; terminal-box version 9IDD1-40-AT
9IDK1-40-APower supply: 1ø AC 110 V, 60 Hz | Rated speed: 3300 r/min | Rated torque: 0.119 N·m | Rated current: 1 A | Starting torque: 0.165 N·m | Capacitor: 12.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKA-40-A; terminal-box version 9IDK1-40-AT
9IDDB-40-APower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 1-1.1 A | Starting torque: 0.135-0.14 N·m | Capacitor: 12.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDB-40-AT
9IDKB-40-APower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 1-1.1 A | Starting torque: 0.135-0.14 N·m | Capacitor: 12.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKB-40-AT
9IDDC-40-APower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 0.46-0.57 A | Starting torque: 0.17-0.185 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDC-40-AT
9IDKC-40-APower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 0.46-0.57 A | Starting torque: 0.17-0.185 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKC-40-AT
9IDD2-40-APower supply: 1ø AC 220 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.122 N·m | Rated current: 0.63 A | Starting torque: 0.182 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDD-40-A; terminal-box version 9IDD2-40-AT
9IDK2-40-APower supply: 1ø AC 220 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.122 N·m | Rated current: 0.63 A | Starting torque: 0.182 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKD-40-A; terminal-box version 9IDK2-40-AT
9IDDE-40-APower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 2700 r/min | Rated torque: 0.144 N·m | Rated current: 0.49-0.52 A | Starting torque: 0.175-0.205 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDE-40-AT
9IDKE-40-APower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 2700 r/min | Rated torque: 0.144 N·m | Rated current: 0.49-0.52 A | Starting torque: 0.175-0.205 N·m | Capacitor: 4.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKE-40-AT
9IDD3-40-APower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 0.28-0.3 A | Starting torque: 0.415-0.563 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDG-40-A; terminal-box version 9IDD3-40-AT
9IDK3-40-APower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 0.28-0.3 A | Starting torque: 0.415-0.563 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKG-40-A; terminal-box version 9IDK3-40-AT
9IDDJ-40-APower supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 2600 / 3200 / 2700 r/min | Rated torque: 0.122-0.15 N·m | Rated current: 0.27-0.32 A | Starting torque: 0.37-0.516 N·m | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDJ-40-AT
9IDKJ-40-APower supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 2600 / 3200 / 2700 r/min | Rated torque: 0.122-0.15 N·m | Rated current: 0.27-0.32 A | Starting torque: 0.37-0.516 N·m | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKJ-40-AT
9IDD4-40-APower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 0.18-0.2 A | Starting torque: 0.496-0.686 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDK-40-A; terminal-box version 9IDD4-40-AT
9IDK4-40-APower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 0.18-0.2 A | Starting torque: 0.496-0.686 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKK-40-A; terminal-box version 9IDK4-40-AT
9IDD5-40-APower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 0.17-0.18 A | Starting torque: 0.495-0.68 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDL-40-A; terminal-box version 9IDD5-40-AT
9IDK5-40-APower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.122-0.144 N·m | Rated current: 0.17-0.18 A | Starting torque: 0.495-0.68 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKL-40-A; terminal-box version 9IDK5-40-AT
