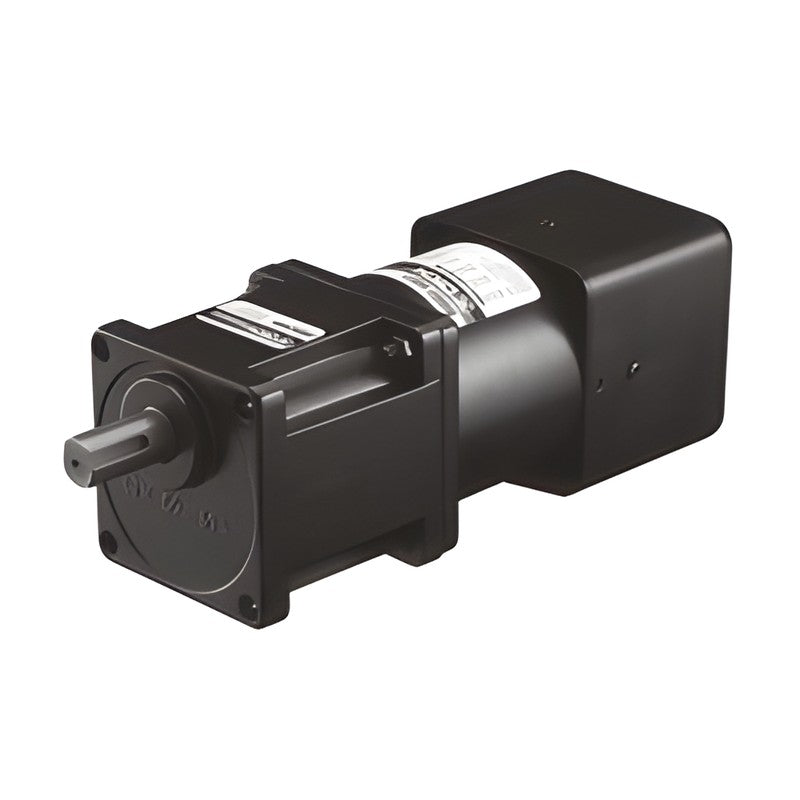

DKM 9SD Speed Control Induction Motor, 180 W, □90 mm Frame

DKM 9SD Speed Control Induction Motor, 180 W, □90 mm Frame

Single-phase AC speed control induction motor with built-in tachogenerator, for variable-speed continuous operation together with a DKM speed controller.

Key features

  • Speed adjustable with DKM speed controllers FX3000, DX3000, DSA or DSKM
  • Built-in tachogenerator (T.G) for speed feedback
  • Speed range 90-1400 r/min (50 Hz) / 90-1700 r/min (60 Hz)
  • Available in connector type (-C) and lead wire type (-L)

Specifications

Output 180 W
Frame size 90 mm square
Poles 4
Phase Single-phase AC
Voltage codes 1 = 1-phase 110 V 60 Hz; A = 1-phase 110 V 60 Hz, thermal protector; 2 = 1-phase 220 V 60 Hz; D = 1-phase 220 V 60 Hz, thermal protector; E = 1-phase 220-240 V 50 Hz, thermal protector
Rating Continuous
Speed range 90-1400 r/min (50 Hz) / 90-1700 r/min (60 Hz)
Starting torque 0.64-0.7 N·m
Permissible torque at 1200 r/min 1-1.1 N·m
Permissible torque at 90 r/min 0.3-0.33 N·m
Capacitor 1/A: 30.0 µF/250 VAC; 2/D: 8.0 µF/400 VAC; E: 8.0 µF/400 VAC
Motor weight 4.25 kg
9SDG-180F2H Shaft: gear type pinion | For gearbox: high powerful box/flange gearbox 9HBK□BH / 9HFK□BH | Voltage codes: 1/A/2/D/E | Order as: 9SDG[voltage code]-180F2H + -C (connector) or -L (lead wire)
9SDG-180F2HC Shaft: gear type pinion | For gearbox: Helicross right-angle gearbox (9HC□) | Voltage codes: 1/A/2/D/E | Order as: 9SDG[voltage code]-180F2HC + -C (connector) or -L (lead wire)
9SDG-180F2WH Shaft: gear type pinion | For gearbox: worm hollow right-angle gearbox (9WHD□) | Voltage codes: 1/A/2/D/E | Order as: 9SDG[voltage code]-180F2WH + -C (connector) or -L (lead wire)
9SDD-180F2 Shaft: D-cut shaft (motor only) | Voltage codes: 1/A/2/D/E | Order as: 9SDD[voltage code]-180F2 + -C (connector) or -L (lead wire)
9SDK-180F2 Shaft: Key shaft (motor only) | Voltage codes: 1/A/2/D/E | Order as: 9SDK[voltage code]-180F2 + -C (connector) or -L (lead wire)
Speed Control MotorsDKM
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9SD Speed Control Induction Motor, 180 W, □90 mm Frame

Brand DKM·Speed Control Motors

Available part numbers (5)

9SDG-180F2H, 9SDG-180F2HC, 9SDG-180F2WH, 9SDD-180F2, 9SDK-180F2

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9SDG-180F2HShaft: gear type pinion | For gearbox: high powerful box/flange gearbox 9HBK□BH / 9HFK□BH | Voltage codes: 1/A/2/D/E | Order as: 9SDG[voltage code]-180F2H + -C (connector) or -L (lead wire)
9SDG-180F2HCShaft: gear type pinion | For gearbox: Helicross right-angle gearbox (9HC□) | Voltage codes: 1/A/2/D/E | Order as: 9SDG[voltage code]-180F2HC + -C (connector) or -L (lead wire)
9SDG-180F2WHShaft: gear type pinion | For gearbox: worm hollow right-angle gearbox (9WHD□) | Voltage codes: 1/A/2/D/E | Order as: 9SDG[voltage code]-180F2WH + -C (connector) or -L (lead wire)
9SDD-180F2Shaft: D-cut shaft (motor only) | Voltage codes: 1/A/2/D/E | Order as: 9SDD[voltage code]-180F2 + -C (connector) or -L (lead wire)
9SDK-180F2Shaft: Key shaft (motor only) | Voltage codes: 1/A/2/D/E | Order as: 9SDK[voltage code]-180F2 + -C (connector) or -L (lead wire)
