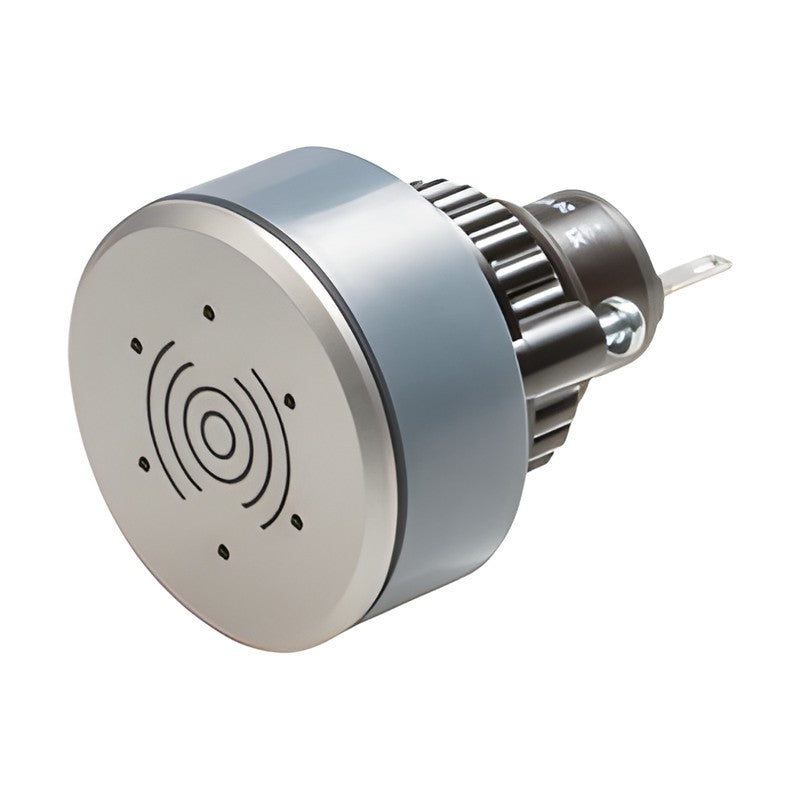

EAO Series 04 Buzzers (22.5 mm)

EAO Series 04 Buzzers (22.5 mm)

Buzzers for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the catalogue ordering tables.

Key features

  • Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
  • Front dimension options: Ø 35 mm, Ø 29 mm
  • Protection options: IP 40, IP 65
  • Front cap options: Aluminium black anodized, Aluminium natural anodized, Plastic black, Brass nickel-plated
  • Each part number covers the components shown in the catalogue; further parts (e.g. switching elements, LEDs) are selected separately
  • 4 part numbers exactly as printed in the ordering tables

Specifications

Brand EAO
Product family Buzzers
Series EAO Series 04 (22.5 mm modular)
Mounting cut-out Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Design Flush / Raised
Actuator Buzzer
Operating voltage 24 VDC
Terminal Solder 2.8 x 0.5 mm
Catalogue EAO Series 04 catalogue (Edition 02/2014)
Part numbers 4 printed codes
Source EAO Series 04 catalogue (Edition 02/2014), p. 12-73
14-810.910 Front dimension: Ø 35 mm | Protection: IP 40 | Front cap: Aluminium black anodized
14-810.918 Front dimension: Ø 35 mm | Protection: IP 40 | Front cap: Aluminium natural anodized
14-810.002 Front dimension: Ø 29 mm | Protection: IP 65 | Front cap: Plastic black
14-810.902 Front dimension: Ø 29 mm | Protection: IP 65 | Front cap: Brass nickel-plated
BuzzersEAO
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 04 Buzzers (22.5 mm)

Brand EAO·Buzzers

Available part numbers (4)

14-810.910, 14-810.918, 14-810.002, 14-810.902

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
14-810.910Front dimension: Ø 35 mm | Protection: IP 40 | Front cap: Aluminium black anodized
14-810.918Front dimension: Ø 35 mm | Protection: IP 40 | Front cap: Aluminium natural anodized
14-810.002Front dimension: Ø 29 mm | Protection: IP 65 | Front cap: Plastic black
14-810.902Front dimension: Ø 29 mm | Protection: IP 65 | Front cap: Brass nickel-plated
