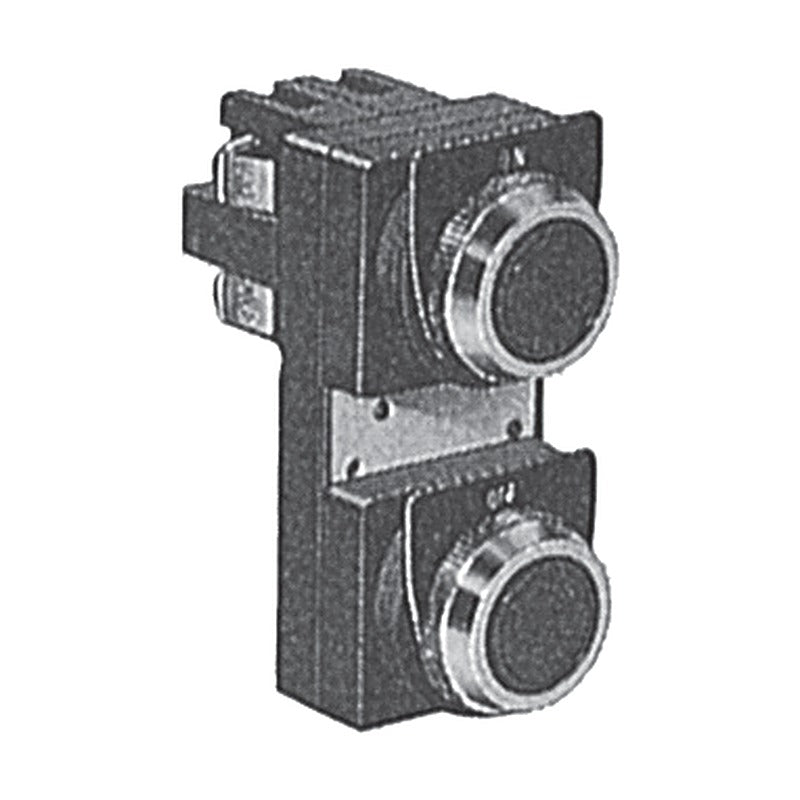

IDEC TWS Series 25 mm Twin Flush Self-Holding Units (ABBS11)

IDEC TWS Series 25 mm Twin Flush Self-Holding Units (ABBS11)

TWS Series ABBS11 twin flush pushbutton units with self-holding (2-button) action.

Key features

  • Supplied with B, G, R buttons
  • Square UWQN two-button units are listed under the φ30 Series
  • φ25 mm heavy-duty series with finger-protected SS terminals; no terminal cover needed
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600)
  • Up to 2 tiers (4 blocks) of contacts per operator
  • UL/CSA listed and EN compliant (some models excluded)

Specifications

Colour B/G/R buttons supplied
Series IDEC TWS Series (φ25)
Panel thickness 0.8 to 6 mm
Contact block HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Protection IP65 (A-prefix), IP40 (U-prefix square units)
Source IDEC TWS Series φ25 Control Units catalogue, p. 9
ABBS1110 Operator: 2-button self-holding flush + flush | Action: Self-holding | Contacts: 1a (1NO)
ABBS1101 Operator: 2-button self-holding flush + flush | Action: Self-holding | Contacts: 1b (1NC)
ABBS1111 Operator: 2-button self-holding flush + flush | Action: Self-holding | Contacts: 1a-1b (1NO+1NC)
ABBS1120 Operator: 2-button self-holding flush + flush | Action: Self-holding | Contacts: 2a (2NO)
ABBS1102 Operator: 2-button self-holding flush + flush | Action: Self-holding | Contacts: 2b (2NC)
ABBS1122 Operator: 2-button self-holding flush + flush | Action: Self-holding | Contacts: 2a-2b (2NO+2NC)
PushbuttonsIDEC
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TWS Series 25 mm Twin Flush Self-Holding Units (ABBS11)

Brand IDEC·Pushbuttons

Available part numbers (6)

ABBS1110, ABBS1101, ABBS1111, ABBS1120, ABBS1102, ABBS1122
