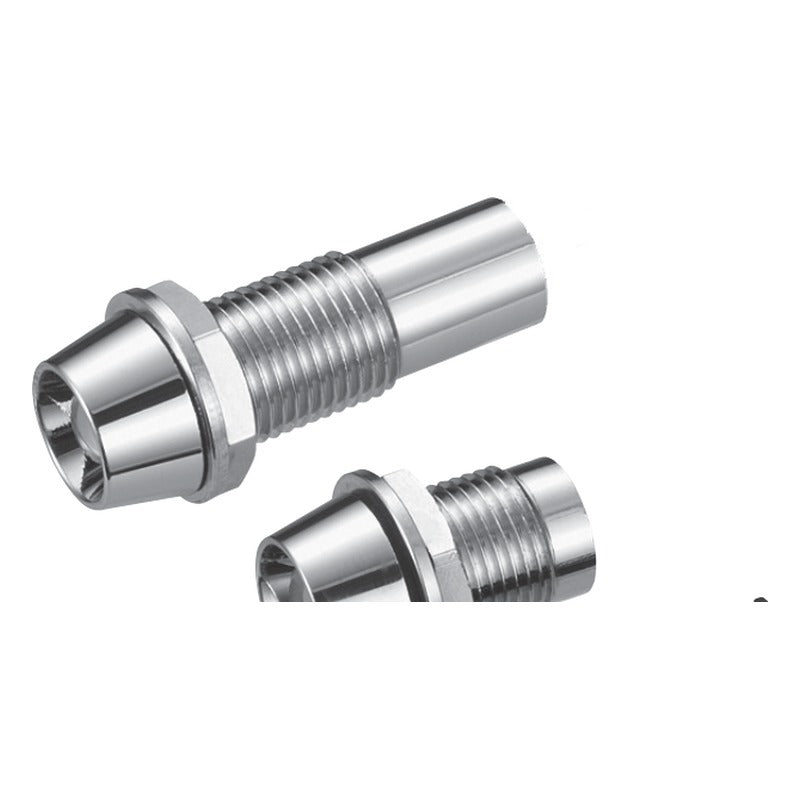

IDEC UP Series LED Miniature Indicators (one-board, phi 8/9)

IDEC UP Series LED Miniature Indicators (one-board, phi 8/9)

IDEC UP series LED miniature indicators designed to share the same PCB with LB/LBW series control units for one-board panel construction.

Key features

  • Mounts on the same PCB as LB/LBW units
  • Red, green or white LED
  • phi 8 mm (IP40) or phi 9 mm (IP65) panel hole
  • Hood type, LED not replaceable
  • External current-limiting resistor required

Specifications

Rated current R/W 7 mA, G 2 mA
Forward voltage R/W 2 V, G 2.7 V (typ.)
Operating temperature -20 to +55 C
Dielectric strength AC500V, 1 min
Pack 10 pcs
Source IDEC LB/LBW Series catalogue, p. 46-47
UP8-89V1RPN10 Hole size: phi 8 | For switch: Standard bezel | Protection: IP40 | Colour: Red | Pack: 10 pcs
UP8-89V1GPN10 Hole size: phi 8 | For switch: Standard bezel | Protection: IP40 | Colour: Green | Pack: 10 pcs
UP8-89V1WPN10 Hole size: phi 8 | For switch: Standard bezel | Protection: IP40 | Colour: White | Pack: 10 pcs
UP8-89V2RPN10 Hole size: phi 8 | For switch: Flush bezel | Protection: IP40 | Colour: Red | Pack: 10 pcs
UP8-89V2GPN10 Hole size: phi 8 | For switch: Flush bezel | Protection: IP40 | Colour: Green | Pack: 10 pcs
UP8-89V2WPN10 Hole size: phi 8 | For switch: Flush bezel | Protection: IP40 | Colour: White | Pack: 10 pcs
UP9P-99V1RPN10 Hole size: phi 9 | For switch: Standard/flush | Protection: IP65 | Colour: Red | Pack: 10 pcs
UP9P-99V1GPN10 Hole size: phi 9 | For switch: Standard/flush | Protection: IP65 | Colour: Green | Pack: 10 pcs
UP9P-99V1WPN10 Hole size: phi 9 | For switch: Standard/flush | Protection: IP65 | Colour: White | Pack: 10 pcs
Indicator LightsIDEC
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC UP Series LED Miniature Indicators (one-board, phi 8/9)

Brand IDEC·Indicator Lights

Available part numbers (9)

UP8-89V1RPN10, UP8-89V1GPN10, UP8-89V1WPN10, UP8-89V2RPN10, UP8-89V2GPN10, UP8-89V2WPN10, UP9P-99V1RPN10, UP9P-99V1GPN10, UP9P-99V1WPN10

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UP8-89V1RPN10Hole size: phi 8 | For switch: Standard bezel | Protection: IP40 | Colour: Red | Pack: 10 pcs
UP8-89V1GPN10Hole size: phi 8 | For switch: Standard bezel | Protection: IP40 | Colour: Green | Pack: 10 pcs
UP8-89V1WPN10Hole size: phi 8 | For switch: Standard bezel | Protection: IP40 | Colour: White | Pack: 10 pcs
UP8-89V2RPN10Hole size: phi 8 | For switch: Flush bezel | Protection: IP40 | Colour: Red | Pack: 10 pcs
UP8-89V2GPN10Hole size: phi 8 | For switch: Flush bezel | Protection: IP40 | Colour: Green | Pack: 10 pcs
UP8-89V2WPN10Hole size: phi 8 | For switch: Flush bezel | Protection: IP40 | Colour: White | Pack: 10 pcs
UP9P-99V1RPN10Hole size: phi 9 | For switch: Standard/flush | Protection: IP65 | Colour: Red | Pack: 10 pcs
UP9P-99V1GPN10Hole size: phi 9 | For switch: Standard/flush | Protection: IP65 | Colour: Green | Pack: 10 pcs
UP9P-99V1WPN10Hole size: phi 9 | For switch: Standard/flush | Protection: IP65 | Colour: White | Pack: 10 pcs
