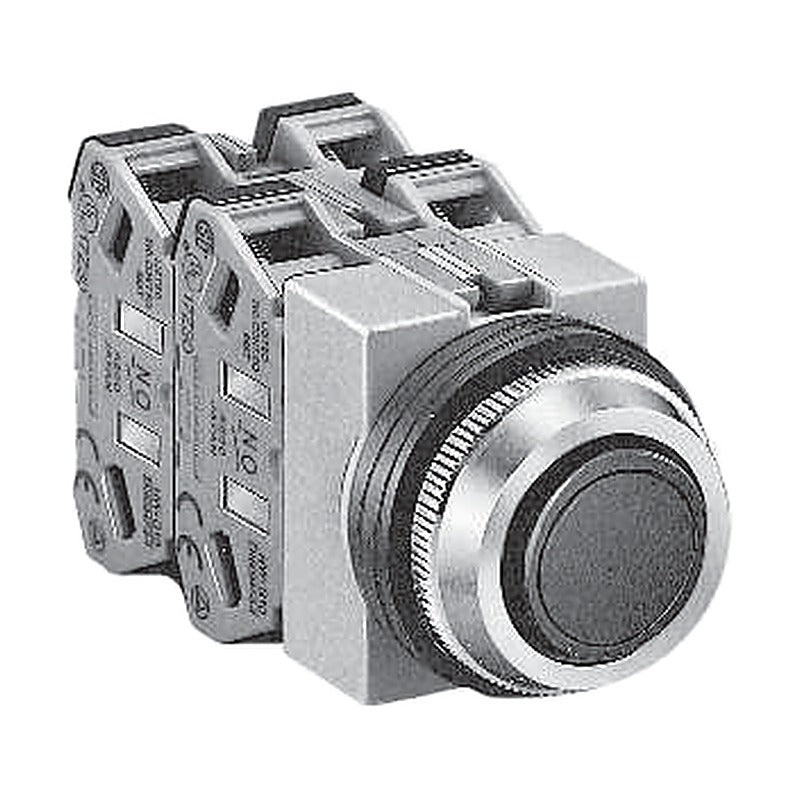

IDEC TWS Series 25 mm Pushbuttons (Flush, Extended, Guard)

IDEC TWS Series 25 mm Pushbuttons (Flush, Extended, Guard)

TWS Series φ25 pushbuttons with flush, extended, extended half-guard and full-guard buttons, momentary or alternate.

Key features

  • Chrome-plated ring
  • Flush types without colour code are supplied with B, G, R buttons
  • φ25 mm heavy-duty series with finger-protected SS terminals; no terminal cover needed
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600)
  • Up to 2 tiers (4 blocks) of contacts per operator
  • UL/CSA listed and EN compliant (some models excluded)

Specifications

Series IDEC TWS Series (φ25)
Panel thickness 0.8 to 6 mm
Contact block HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Protection IP65 (A-prefix), IP40 (U-prefix square units)
Source IDEC TWS Series φ25 Control Units catalogue, p. 6
ABS110N Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: B/G/R caps supplied
ABS110NY Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABS110NS Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABS110NW Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABS101N Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: B/G/R caps supplied
ABS101NY Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABS101NS Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABS101NW Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABS111N Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: B/G/R caps supplied
ABS111NY Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABS111NS Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABS111NW Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABS120N Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: B/G/R caps supplied
ABS120NY Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABS120NS Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABS120NW Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABS102N Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: B/G/R caps supplied
ABS102NY Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABS102NS Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABS102NW Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABS122N Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: B/G/R caps supplied
ABS122NY Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABS122NS Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABS122NW Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOS110N Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: B/G/R caps supplied
AOS110NY Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOS110NS Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOS110NW Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOS101N Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: B/G/R caps supplied
AOS101NY Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOS101NS Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOS101NW Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOS111N Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: B/G/R caps supplied
AOS111NY Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOS111NS Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOS111NW Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOS120N Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: B/G/R caps supplied
AOS120NY Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOS120NS Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOS120NW Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOS102N Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: B/G/R caps supplied
AOS102NY Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOS102NS Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOS102NW Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOS122N Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: B/G/R caps supplied
AOS122NY Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOS122NS Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOS122NW Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABS210NB Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABS210NG Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABS210NR Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABS210NY Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABS210NS Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABS210NW Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABS201NB Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABS201NG Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABS201NR Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABS201NY Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABS201NS Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABS201NW Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABS211NB Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABS211NG Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABS211NR Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABS211NY Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABS211NS Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABS211NW Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABS220NB Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABS220NG Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABS220NR Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABS220NY Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABS220NS Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABS220NW Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABS202NB Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABS202NG Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABS202NR Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABS202NY Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABS202NS Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABS202NW Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABS222NB Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABS222NG Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABS222NR Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABS222NY Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABS222NS Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABS222NW Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOS210NB Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOS210NG Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOS210NR Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOS210NY Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOS210NS Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOS210NW Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOS201NB Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOS201NG Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOS201NR Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOS201NY Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOS201NS Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOS201NW Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOS211NB Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOS211NG Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOS211NR Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOS211NY Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOS211NS Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOS211NW Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOS220NB Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOS220NG Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOS220NR Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOS220NY Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOS220NS Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOS220NW Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOS202NB Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOS202NG Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOS202NR Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOS202NY Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOS202NS Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOS202NW Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOS222NB Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOS222NG Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOS222NR Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOS222NY Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOS222NS Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOS222NW Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABGS210NB Operator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABGS210NG Operator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABGS210NR Operator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABGS210NY Operator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABGS210NS Operator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABGS210NW Operator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABGS201NB Operator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABGS201NG Operator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABGS201NR Operator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABGS201NY Operator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABGS201NS Operator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABGS201NW Operator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABGS211NB Operator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABGS211NG Operator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABGS211NR Operator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABGS211NY Operator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABGS211NS Operator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABGS211NW Operator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABGS220NB Operator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABGS220NG Operator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABGS220NR Operator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABGS220NY Operator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABGS220NS Operator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABGS220NW Operator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABGS202NB Operator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABGS202NG Operator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABGS202NR Operator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABGS202NY Operator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABGS202NS Operator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABGS202NW Operator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABGS222NB Operator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABGS222NG Operator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABGS222NR Operator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABGS222NY Operator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABGS222NS Operator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABGS222NW Operator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOGS210NB Operator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOGS210NG Operator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOGS210NR Operator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOGS210NY Operator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOGS210NS Operator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOGS210NW Operator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOGS201NB Operator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOGS201NG Operator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOGS201NR Operator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOGS201NY Operator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOGS201NS Operator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOGS201NW Operator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOGS211NB Operator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOGS211NG Operator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOGS211NR Operator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOGS211NY Operator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOGS211NS Operator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOGS211NW Operator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOGS220NB Operator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOGS220NG Operator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOGS220NR Operator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOGS220NY Operator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOGS220NS Operator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOGS220NW Operator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOGS202NB Operator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOGS202NG Operator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOGS202NR Operator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOGS202NY Operator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOGS202NS Operator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOGS202NW Operator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOGS222NB Operator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOGS222NG Operator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOGS222NR Operator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOGS222NY Operator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOGS222NS Operator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOGS222NW Operator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABFS210NB Operator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABFS210NG Operator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABFS210NR Operator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABFS210NY Operator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABFS210NS Operator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABFS210NW Operator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABFS201NB Operator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABFS201NG Operator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABFS201NR Operator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABFS201NY Operator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABFS201NS Operator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABFS201NW Operator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABFS211NB Operator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABFS211NG Operator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABFS211NR Operator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABFS211NY Operator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABFS211NS Operator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABFS211NW Operator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABFS220NB Operator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABFS220NG Operator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABFS220NR Operator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABFS220NY Operator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABFS220NS Operator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABFS220NW Operator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABFS202NB Operator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABFS202NG Operator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABFS202NR Operator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABFS202NY Operator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABFS202NS Operator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABFS202NW Operator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABFS222NB Operator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABFS222NG Operator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABFS222NR Operator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABFS222NY Operator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABFS222NS Operator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABFS222NW Operator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOFS210NB Operator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOFS210NG Operator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOFS210NR Operator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOFS210NY Operator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOFS210NS Operator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOFS210NW Operator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOFS201NB Operator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOFS201NG Operator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOFS201NR Operator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOFS201NY Operator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOFS201NS Operator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOFS201NW Operator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOFS211NB Operator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOFS211NG Operator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOFS211NR Operator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOFS211NY Operator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOFS211NS Operator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOFS211NW Operator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOFS220NB Operator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOFS220NG Operator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOFS220NR Operator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOFS220NY Operator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOFS220NS Operator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOFS220NW Operator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOFS202NB Operator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOFS202NG Operator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOFS202NR Operator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOFS202NY Operator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOFS202NS Operator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOFS202NW Operator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOFS222NB Operator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOFS222NG Operator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOFS222NR Operator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOFS222NY Operator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOFS222NS Operator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOFS222NW Operator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
PushbuttonsIDEC
264 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TWS Series 25 mm Pushbuttons (Flush, Extended, Guard)

Brand IDEC·Pushbuttons

Available part numbers (264)

ABS110N, ABS110NY, ABS110NS, ABS110NW, ABS101N, ABS101NY, ABS101NS, ABS101NW, ABS111N, ABS111NY + 254 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ABS110NOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: B/G/R caps supplied
ABS110NYOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABS110NSOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABS110NWOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABS101NOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: B/G/R caps supplied
ABS101NYOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABS101NSOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABS101NWOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABS111NOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: B/G/R caps supplied
ABS111NYOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABS111NSOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABS111NWOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABS120NOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: B/G/R caps supplied
ABS120NYOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABS120NSOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABS120NWOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABS102NOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: B/G/R caps supplied
ABS102NYOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABS102NSOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABS102NWOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABS122NOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: B/G/R caps supplied
ABS122NYOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABS122NSOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABS122NWOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOS110NOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: B/G/R caps supplied
AOS110NYOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOS110NSOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOS110NWOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOS101NOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: B/G/R caps supplied
AOS101NYOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOS101NSOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOS101NWOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOS111NOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: B/G/R caps supplied
AOS111NYOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOS111NSOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOS111NWOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOS120NOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: B/G/R caps supplied
AOS120NYOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOS120NSOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOS120NWOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOS102NOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: B/G/R caps supplied
AOS102NYOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOS102NSOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOS102NWOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOS122NOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: B/G/R caps supplied
AOS122NYOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOS122NSOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOS122NWOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABS210NBOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABS210NGOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABS210NROperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABS210NYOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABS210NSOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABS210NWOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABS201NBOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABS201NGOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABS201NROperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABS201NYOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABS201NSOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABS201NWOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABS211NBOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABS211NGOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABS211NROperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABS211NYOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABS211NSOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABS211NWOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABS220NBOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABS220NGOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABS220NROperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABS220NYOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABS220NSOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABS220NWOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABS202NBOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABS202NGOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABS202NROperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABS202NYOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABS202NSOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABS202NWOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABS222NBOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABS222NGOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABS222NROperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABS222NYOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABS222NSOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABS222NWOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOS210NBOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOS210NGOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOS210NROperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOS210NYOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOS210NSOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOS210NWOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOS201NBOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOS201NGOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOS201NROperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOS201NYOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOS201NSOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOS201NWOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOS211NBOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOS211NGOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOS211NROperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOS211NYOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOS211NSOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOS211NWOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOS220NBOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOS220NGOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOS220NROperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOS220NYOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOS220NSOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOS220NWOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOS202NBOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOS202NGOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOS202NROperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOS202NYOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOS202NSOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOS202NWOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOS222NBOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOS222NGOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOS222NROperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOS222NYOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOS222NSOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOS222NWOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABGS210NBOperator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABGS210NGOperator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABGS210NROperator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABGS210NYOperator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABGS210NSOperator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABGS210NWOperator: Extended, half guard | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABGS201NBOperator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABGS201NGOperator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABGS201NROperator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABGS201NYOperator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABGS201NSOperator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABGS201NWOperator: Extended, half guard | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABGS211NBOperator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABGS211NGOperator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABGS211NROperator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABGS211NYOperator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABGS211NSOperator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABGS211NWOperator: Extended, half guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABGS220NBOperator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABGS220NGOperator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABGS220NROperator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABGS220NYOperator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABGS220NSOperator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABGS220NWOperator: Extended, half guard | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABGS202NBOperator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABGS202NGOperator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABGS202NROperator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABGS202NYOperator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABGS202NSOperator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABGS202NWOperator: Extended, half guard | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABGS222NBOperator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABGS222NGOperator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABGS222NROperator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABGS222NYOperator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABGS222NSOperator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABGS222NWOperator: Extended, half guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOGS210NBOperator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOGS210NGOperator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOGS210NROperator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOGS210NYOperator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOGS210NSOperator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOGS210NWOperator: Extended, half guard | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOGS201NBOperator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOGS201NGOperator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOGS201NROperator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOGS201NYOperator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOGS201NSOperator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOGS201NWOperator: Extended, half guard | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOGS211NBOperator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOGS211NGOperator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOGS211NROperator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOGS211NYOperator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOGS211NSOperator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOGS211NWOperator: Extended, half guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOGS220NBOperator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOGS220NGOperator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOGS220NROperator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOGS220NYOperator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOGS220NSOperator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOGS220NWOperator: Extended, half guard | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOGS202NBOperator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOGS202NGOperator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOGS202NROperator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOGS202NYOperator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOGS202NSOperator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOGS202NWOperator: Extended, half guard | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOGS222NBOperator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOGS222NGOperator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOGS222NROperator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOGS222NYOperator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOGS222NSOperator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOGS222NWOperator: Extended, half guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABFS210NBOperator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABFS210NGOperator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABFS210NROperator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABFS210NYOperator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABFS210NSOperator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABFS210NWOperator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABFS201NBOperator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABFS201NGOperator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABFS201NROperator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABFS201NYOperator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABFS201NSOperator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABFS201NWOperator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABFS211NBOperator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABFS211NGOperator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABFS211NROperator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABFS211NYOperator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABFS211NSOperator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABFS211NWOperator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABFS220NBOperator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABFS220NGOperator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABFS220NROperator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABFS220NYOperator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABFS220NSOperator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABFS220NWOperator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABFS202NBOperator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABFS202NGOperator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABFS202NROperator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABFS202NYOperator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABFS202NSOperator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABFS202NWOperator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABFS222NBOperator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABFS222NGOperator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABFS222NROperator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABFS222NYOperator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABFS222NSOperator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABFS222NWOperator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOFS210NBOperator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOFS210NGOperator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOFS210NROperator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOFS210NYOperator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOFS210NSOperator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOFS210NWOperator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOFS201NBOperator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOFS201NGOperator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOFS201NROperator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOFS201NYOperator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOFS201NSOperator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOFS201NWOperator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOFS211NBOperator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOFS211NGOperator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOFS211NROperator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOFS211NYOperator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOFS211NSOperator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOFS211NWOperator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOFS220NBOperator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOFS220NGOperator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOFS220NROperator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOFS220NYOperator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOFS220NSOperator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOFS220NWOperator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOFS202NBOperator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOFS202NGOperator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOFS202NROperator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOFS202NYOperator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOFS202NSOperator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOFS202NWOperator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOFS222NBOperator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOFS222NGOperator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOFS222NROperator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOFS222NYOperator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOFS222NSOperator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOFS222NWOperator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
