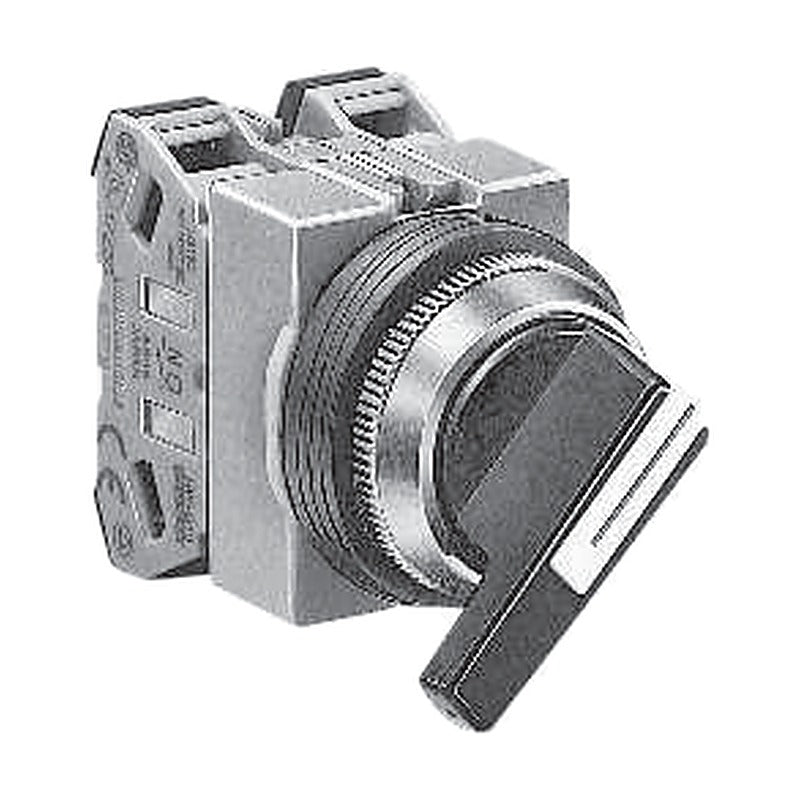

IDEC TWS Series 25 mm Selector Switches (Lever Handle)

IDEC TWS Series 25 mm Selector Switches (Lever Handle)

TWS Series φ25 selector switches with lever handle, 2- to 5-position, maintained or spring return.

Key features

  • 90° 2-position, 45° 3-/4-position and 30° 5-position
  • Black handle, chrome-plated ring
  • φ25 mm heavy-duty series with finger-protected SS terminals; no terminal cover needed
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600)
  • Up to 2 tiers (4 blocks) of contacts per operator
  • UL/CSA listed and EN compliant (some models excluded)

Specifications

Operator Lever handle
Series IDEC TWS Series (φ25)
Panel thickness 0.8 to 6 mm
Contact block HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Protection IP65 (A-prefix), IP40 (U-prefix square units)
Source IDEC TWS Series φ25 Control Units catalogue, p. 19
ASS2L10N Positions: 90° 2-position | Operation: Maintained | Contacts: 1a (1NO)
ASS2L11N Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASS2L20N Positions: 90° 2-position | Operation: Maintained | Contacts: 2a (2NO)
ASS2L22N Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASS2L2RN-118 Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASS3L20N Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO)
ASS3L02N Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC)
ASS3L22N Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASS3L40N Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASS3L04N Positions: 45° 3-position | Operation: Maintained | Contacts: 4b (4NC)
ASS3L3SN-243 Positions: 45° 3-position | Operation: Maintained | Contacts: 3S
ASS4L4SN-407 Positions: 45° 4-position | Operation: Maintained | Contacts: 4S
ASS4L4SN-411 Positions: 45° 4-position | Operation: Maintained | Contacts: 4S
ASS4L3SN-461 Positions: 45° 4-position | Operation: Maintained | Contacts: 3S
ASS21L10N Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a (1NO)
ASS21L11N Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASS21L20N Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASS21L22N Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASS21L2RN-118 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASS31L20N Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASS31L02N Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC)
ASS31L22N Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASS31L40N Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a (4NO)
ASS31L04N Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4b (4NC)
ASS5L4SN-501 Positions: 30° 5-position | Operation: Maintained | Contacts: 4S
ASS22L10N Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a (1NO)
ASS22L11N Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASS22L20N Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASS22L22N Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASS22L2RN-169 Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASS32L20N Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASS32L02N Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC)
ASS32L22N Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASS32L40N Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a (4NO)
ASS32L04N Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4b (4NC)
ASS33L20N Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO)
ASS33L02N Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC)
ASS33L22N Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC)
ASS33L40N Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a (4NO)
ASS33L04N Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4b (4NC)
Selector SwitchesIDEC
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TWS Series 25 mm Selector Switches (Lever Handle)

Brand IDEC·Selector Switches

Available part numbers (40)

ASS2L10N, ASS2L11N, ASS2L20N, ASS2L22N, ASS2L2RN-118, ASS3L20N, ASS3L02N, ASS3L22N, ASS3L40N, ASS3L04N + 30 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ASS2L10NPositions: 90° 2-position | Operation: Maintained | Contacts: 1a (1NO)
ASS2L11NPositions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASS2L20NPositions: 90° 2-position | Operation: Maintained | Contacts: 2a (2NO)
ASS2L22NPositions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASS2L2RN-118Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASS3L20NPositions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO)
ASS3L02NPositions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC)
ASS3L22NPositions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASS3L40NPositions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASS3L04NPositions: 45° 3-position | Operation: Maintained | Contacts: 4b (4NC)
ASS3L3SN-243Positions: 45° 3-position | Operation: Maintained | Contacts: 3S
ASS4L4SN-407Positions: 45° 4-position | Operation: Maintained | Contacts: 4S
ASS4L4SN-411Positions: 45° 4-position | Operation: Maintained | Contacts: 4S
ASS4L3SN-461Positions: 45° 4-position | Operation: Maintained | Contacts: 3S
ASS21L10NPositions: 90° 2-position | Operation: Spring return from right | Contacts: 1a (1NO)
ASS21L11NPositions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASS21L20NPositions: 90° 2-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASS21L22NPositions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASS21L2RN-118Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASS31L20NPositions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASS31L02NPositions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC)
ASS31L22NPositions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASS31L40NPositions: 45° 3-position | Operation: Spring return from right | Contacts: 4a (4NO)
ASS31L04NPositions: 45° 3-position | Operation: Spring return from right | Contacts: 4b (4NC)
ASS5L4SN-501Positions: 30° 5-position | Operation: Maintained | Contacts: 4S
ASS22L10NPositions: 90° 2-position | Operation: Spring return from left | Contacts: 1a (1NO)
ASS22L11NPositions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASS22L20NPositions: 90° 2-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASS22L22NPositions: 90° 2-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASS22L2RN-169Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASS32L20NPositions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASS32L02NPositions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC)
ASS32L22NPositions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASS32L40NPositions: 45° 3-position | Operation: Spring return from left | Contacts: 4a (4NO)
ASS32L04NPositions: 45° 3-position | Operation: Spring return from left | Contacts: 4b (4NC)
ASS33L20NPositions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO)
ASS33L02NPositions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC)
ASS33L22NPositions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC)
ASS33L40NPositions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a (4NO)
ASS33L04NPositions: 45° 3-position | Operation: Spring return both sides | Contacts: 4b (4NC)
