EAO Series 04 Emergency-Stop Accessories (22.5 mm)

EAO Series 04 Emergency-Stop Accessories (22.5 mm)

Emergency-Stop Accessories for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

  • Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
  • Item options: Emergency-stop legend, E-stop protective shroud, Emergency-stop enclosure
  • Colour options: yellow
  • Marking options: NOT AUS, EMERGENCY STOP, ARRET D'URGENCE, NOT HALT, NOT-AUS and more
  • Dimension options: Ø 90 x 1 mm, Ø 59 x 1 mm, Ø 50 mm, Ø 83 mm, Ø 65 mm and more
  • 18 part numbers exactly as printed in the ordering tables

Specifications

Brand EAO
Product family Emergency-Stop Accessories
Series EAO Series 04 (22.5 mm modular)
Mounting cut-out Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Catalogue EAO Series 04 catalogue (Edition 02/2014)
Part numbers 18 printed codes
Source EAO Series 04 catalogue (Edition 02/2014), p. 153-155

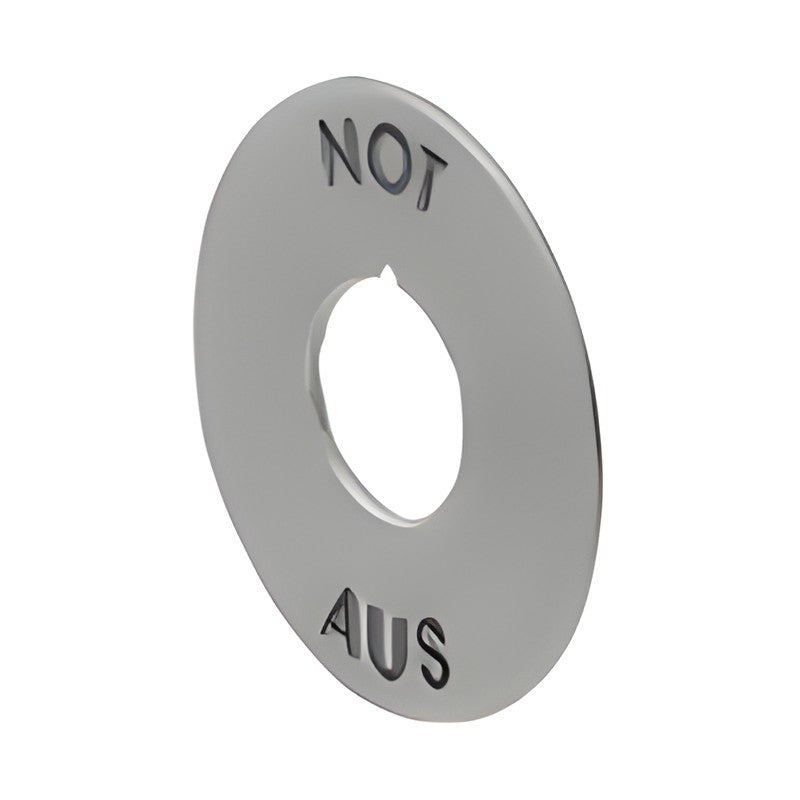

704.963.0 Item: Emergency-stop legend | Colour: yellow | Marking: NOT AUS | Dimension: Ø 90 x 1 mm | Mounting cut-out: Ø 22.5 mm | Details: -
704.963.1 Item: Emergency-stop legend | Colour: yellow | Marking: EMERGENCY STOP | Dimension: Ø 90 x 1 mm | Mounting cut-out: Ø 22.5 mm | Details: -
704.963.2 Item: Emergency-stop legend | Colour: yellow | Marking: ARRET D'URGENCE | Dimension: Ø 90 x 1 mm | Mounting cut-out: Ø 22.5 mm | Details: -
704.963.3 Item: Emergency-stop legend | Colour: yellow | Marking: NOT HALT | Dimension: Ø 90 x 1 mm | Mounting cut-out: Ø 22.5 mm | Details: -
704.963.5 Item: Emergency-stop legend | Colour: yellow | Marking: NOT AUS | Dimension: Ø 59 x 1 mm | Mounting cut-out: Ø 22.5 mm | Details: -
704.963.6 Item: Emergency-stop legend | Colour: yellow | Marking: EMERGENCY STOP | Dimension: Ø 59 x 1 mm | Mounting cut-out: Ø 22.5 mm | Details: -
704.963.7 Item: Emergency-stop legend | Colour: yellow | Marking: ARRET D'URGENCE | Dimension: Ø 59 x 1 mm | Mounting cut-out: Ø 22.5 mm | Details: -
704.963.8 Item: Emergency-stop legend | Colour: yellow | Marking: NOT HALT | Dimension: Ø 59 x 1 mm | Mounting cut-out: Ø 22.5 mm | Details: -
704.927.8 Item: E-stop protective shroud | Colour: yellow | Marking: - | Dimension: Ø 50 mm | Mounting cut-out: - | Details: Plastic
704.927.9 Item: E-stop protective shroud | Colour: yellow | Marking: - | Dimension: Ø 83 mm | Mounting cut-out: - | Details: Plastic, SEMI S2-93/12.4.c
704.927.6 Item: E-stop protective shroud | Colour: yellow | Marking: - | Dimension: Ø 65 mm | Mounting cut-out: - | Details: IK 07
704.927.6A Item: E-stop protective shroud | Colour: yellow | Marking: NOT-AUS | Dimension: Ø 65 mm | Mounting cut-out: - | Details: IK 07
704.927.6B Item: E-stop protective shroud | Colour: yellow | Marking: EMERGENCY-STOP | Dimension: Ø 65 mm | Mounting cut-out: - | Details: IK 07
704.927.6C Item: E-stop protective shroud | Colour: yellow | Marking: EMERGENCY-STOP / NOT-AUS | Dimension: Ø 65 mm | Mounting cut-out: - | Details: IK 07
704.927.6D Item: E-stop protective shroud | Colour: yellow | Marking: NOT-HALT | Dimension: Ø 65 mm | Mounting cut-out: - | Details: IK 07
704.945.0 Item: Emergency-stop enclosure | Colour: - | Marking: - | Dimension: L 94 x B 94 x H 81 mm | Mounting cut-out: - | Details: with mounting cut-out 1xØ 22.5 mm, with
704.945.7 Item: Emergency-stop enclosure | Colour: - | Marking: - | Dimension: L 65 x B 65 x H 81 mm | Mounting cut-out: - | Details: with mounting cut-out 1xØ 22.5 mm, with
704.945.8 Item: Emergency-stop enclosure | Colour: - | Marking: - | Dimension: L 94 x B 65 x H 81 mm | Mounting cut-out: - | Details: with mounting cut-out 1xØ 22.5 mm, with
Pushbutton AccessoriesEAO
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 04 Emergency-Stop Accessories (22.5 mm)

Brand EAO·Pushbutton Accessories

Available part numbers (18)

704.963.0, 704.963.1, 704.963.2, 704.963.3, 704.963.5, 704.963.6, 704.963.7, 704.963.8, 704.927.8, 704.927.9 + 8 more — see full table ↓
