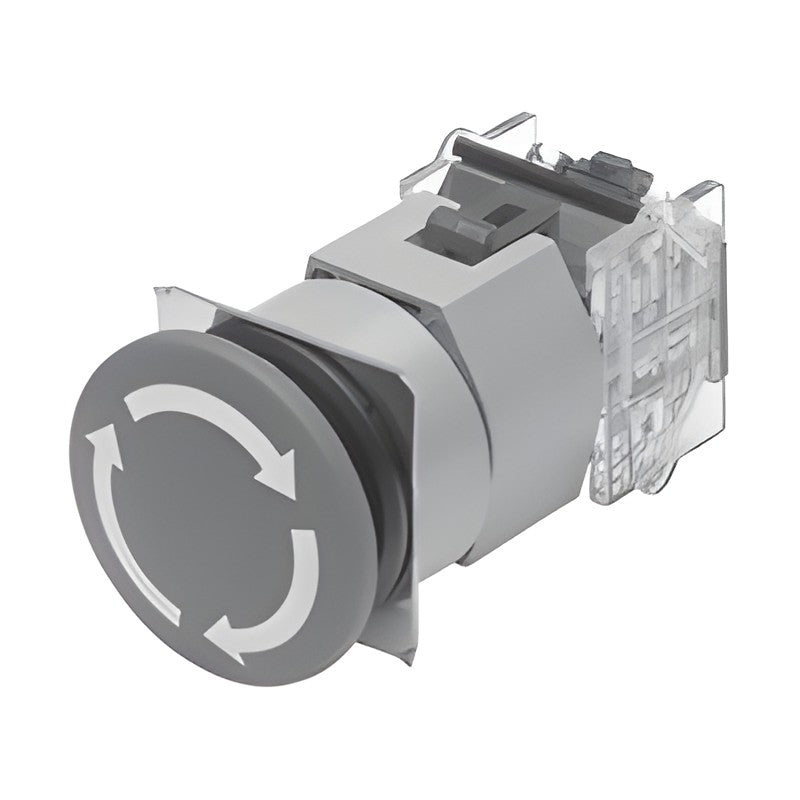

EAO Series 04 Emergency-Stop & Stop Switches (22.5 mm)

Emergency-Stop & Stop Switches for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the catalogue ordering tables.

Key features

Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
Actuator options: Stop switch, E-stop, foolproof
Front dimension options: Ø 40 mm, Ø 37 mm
Bezel / ring options: Aluminium natural anodized, Aluminium black anodized, Plastic grey
Marking options: Arrows, Stop, without
Each part number covers the components shown in the catalogue; further parts (e.g. switching elements, LEDs) are selected separately

Specifications

Brand	EAO
Product family	Emergency-Stop & Stop Switches
Series	EAO Series 04 (22.5 mm modular)
Mounting cut-out	Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Design	Flush / Raised
Protection	IP 65
Lens	Plastic red
Switching action	C (maintained)
Catalogue	EAO Series 04 catalogue (Edition 02/2014)
Part numbers	12 printed codes
Source	EAO Series 04 catalogue (Edition 02/2014), p. 21-85

704.075.218		Actuator: Stop switch \| Front dimension: Ø 40 mm \| Bezel / ring: Aluminium natural anodized \| Marking: Arrows \| Product attribute: -
704.075.318		Actuator: Stop switch \| Front dimension: Ø 40 mm \| Bezel / ring: Aluminium natural anodized \| Marking: Stop \| Product attribute: -
704.074.210		Actuator: Stop switch \| Front dimension: Ø 40 mm \| Bezel / ring: Aluminium black anodized \| Marking: Arrows \| Product attribute: -
704.075.310		Actuator: Stop switch \| Front dimension: Ø 40 mm \| Bezel / ring: Aluminium black anodized \| Marking: Stop \| Product attribute: -
704.064.2		Actuator: E-stop, foolproof \| Front dimension: Ø 37 mm \| Bezel / ring: - \| Marking: Arrows \| Product attribute: Twist to unlock anti-clockwise
704.066.2		Actuator: E-stop, foolproof \| Front dimension: Ø 37 mm \| Bezel / ring: - \| Marking: Arrows \| Product attribute: Key to unlock anti-clockwise
704.074.2		Actuator: Stop switch \| Front dimension: Ø 40 mm \| Bezel / ring: Plastic grey \| Marking: Arrows \| Product attribute: Twist to unlock clockwise
704.074.3		Actuator: Stop switch \| Front dimension: Ø 40 mm \| Bezel / ring: Plastic grey \| Marking: Stop \| Product attribute: Twist to unlock clockwise
704.075.2		Actuator: Stop switch \| Front dimension: Ø 40 mm \| Bezel / ring: Aluminium natural anodized \| Marking: Arrows \| Product attribute: Twist to unlock clockwise
704.075.3		Actuator: Stop switch \| Front dimension: Ø 40 mm \| Bezel / ring: Aluminium natural anodized \| Marking: Stop \| Product attribute: Twist to unlock clockwise
704.076.0		Actuator: Stop switch \| Front dimension: Ø 40 mm \| Bezel / ring: Plastic grey \| Marking: without \| Product attribute: Key to unlock clockwise
704.078.0		Actuator: Stop switch \| Front dimension: Ø 40 mm \| Bezel / ring: Aluminium natural anodized \| Marking: without \| Product attribute: Key to unlock clockwise

Emergency Stop SwitchesEAO

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 04 Emergency-Stop & Stop Switches (22.5 mm)

Brand EAO·Emergency Stop Switches

Available part numbers (12)

704.075.218, 704.075.318, 704.074.210, 704.075.310, 704.064.2, 704.066.2, 704.074.2, 704.074.3, 704.075.2, 704.075.3 + 2 more — see full table ↓
