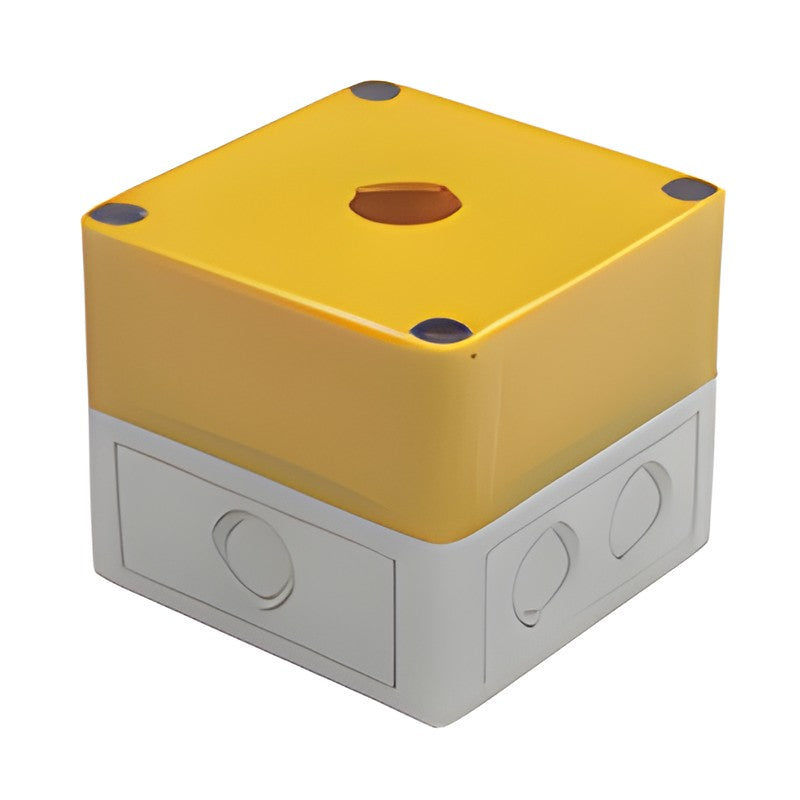

EAO Series 04 Enclosures & Cable Glands (22.5 mm)

Enclosures & Cable Glands for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
Item options: Cable gland, Enclosure
Colour options: grey, grey, similar RAL 7035
Product attribute options: Clamping range Ø 4 ... 10 mm, thread, Clamping range Ø 6 ... 12 mm, thread, with mounting cut-out 1xØ 22.5 mm, with, with mounting
Dimension options: L 94 x B 94 x H 81 mm, L 130 x B 94 x H 81 mm, L 180 x B 94 x H 81 mm, L 180 x B 182 x H 110 mm
7 part numbers exactly as printed in the ordering tables

Specifications

Brand	EAO
Product family	Enclosures & Cable Glands
Series	EAO Series 04 (22.5 mm modular)
Mounting cut-out	Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Material	Plastic
Catalogue	EAO Series 04 catalogue (Edition 02/2014)
Part numbers	7 printed codes
Source	EAO Series 04 catalogue (Edition 02/2014), p. 155-160

61-9481.6		Item: Cable gland \| Colour: grey \| Product attribute: Clamping range Ø 4 ... 10 mm, thread \| Dimension: - \| Details: M16 x 1.5
704.945.6		Item: Cable gland \| Colour: grey \| Product attribute: Clamping range Ø 6 ... 12 mm, thread \| Dimension: - \| Details: M20 x 1.5
704.945.1		Item: Enclosure \| Colour: grey, similar RAL 7035 \| Product attribute: with mounting cut-out 1xØ 22.5 mm, with \| Dimension: L 94 x B 94 x H 81 mm \| Details: -
704.945.2		Item: Enclosure \| Colour: grey, similar RAL 7035 \| Product attribute: with mounting cut-out 2xØ 22.5 mm, with \| Dimension: L 130 x B 94 x H 81 mm \| Details: -
704.945.3		Item: Enclosure \| Colour: grey, similar RAL 7035 \| Product attribute: with mounting cut-out 3xØ 22.5 mm, with \| Dimension: L 180 x B 94 x H 81 mm \| Details: -
704.945.4		Item: Enclosure \| Colour: grey, similar RAL 7035 \| Product attribute: with mounting cut-out 4xØ 22.5 mm, with \| Dimension: L 180 x B 182 x H 110 mm \| Details: -
704.945.5		Item: Enclosure \| Colour: grey, similar RAL 7035 \| Product attribute: with mounting cut-out 6xØ 22.5 mm, with \| Dimension: L 180 x B 182 x H 110 mm \| Details: -

Enclosures & Control BoxesEAO

7 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 04 Enclosures & Cable Glands (22.5 mm)

Brand EAO·Enclosures & Control Boxes

Available part numbers (7)

61-9481.6, 704.945.6, 704.945.1, 704.945.2, 704.945.3, 704.945.4, 704.945.5

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	61-9481.6	Item: Cable gland \| Colour: grey \| Product attribute: Clamping range Ø 4 ... 10 mm, thread \| Dimension: - \| Details: M16 x 1.5
	704.945.6	Item: Cable gland \| Colour: grey \| Product attribute: Clamping range Ø 6 ... 12 mm, thread \| Dimension: - \| Details: M20 x 1.5
	704.945.1	Item: Enclosure \| Colour: grey, similar RAL 7035 \| Product attribute: with mounting cut-out 1xØ 22.5 mm, with \| Dimension: L 94 x B 94 x H 81 mm \| Details: -
	704.945.2	Item: Enclosure \| Colour: grey, similar RAL 7035 \| Product attribute: with mounting cut-out 2xØ 22.5 mm, with \| Dimension: L 130 x B 94 x H 81 mm \| Details: -
	704.945.3	Item: Enclosure \| Colour: grey, similar RAL 7035 \| Product attribute: with mounting cut-out 3xØ 22.5 mm, with \| Dimension: L 180 x B 94 x H 81 mm \| Details: -
	704.945.4	Item: Enclosure \| Colour: grey, similar RAL 7035 \| Product attribute: with mounting cut-out 4xØ 22.5 mm, with \| Dimension: L 180 x B 182 x H 110 mm \| Details: -
	704.945.5	Item: Enclosure \| Colour: grey, similar RAL 7035 \| Product attribute: with mounting cut-out 6xØ 22.5 mm, with \| Dimension: L 180 x B 182 x H 110 mm \| Details: -
