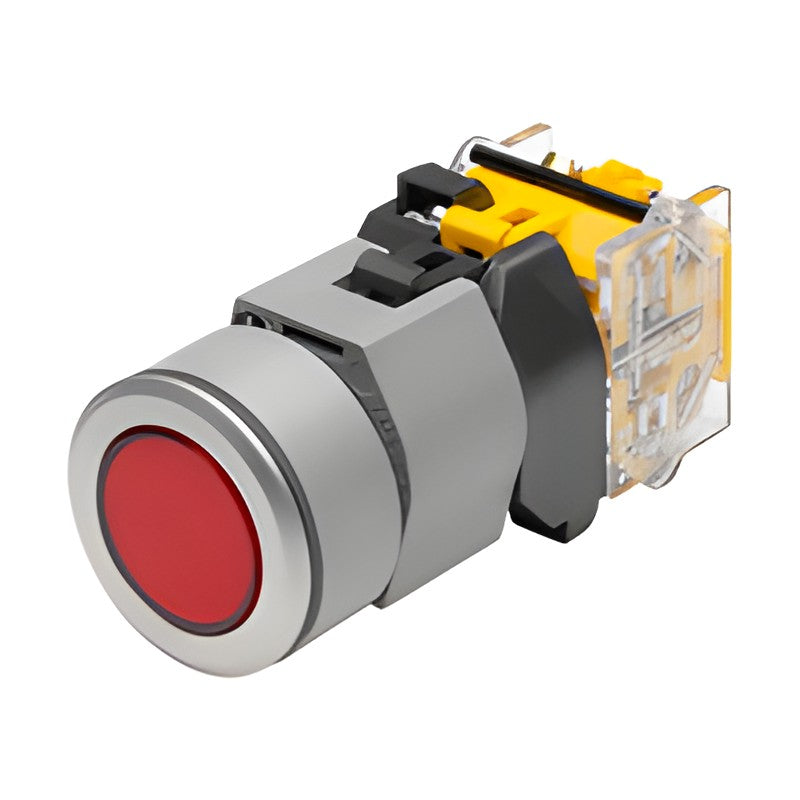

EAO Series 04 Illuminated Pushbuttons (22.5 mm, Flush Design)

EAO Series 04 Illuminated Pushbuttons (22.5 mm, Flush Design)

Illuminated Pushbuttons for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the catalogue ordering tables.

Key features

  • Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
  • Front dimension options: 35 x 35 mm, Ø 35 mm
  • Housing options: Plastic black, Plastic grey
  • Switching action options: B (momentary), C (maintained)
  • Lens options: Plastic red, Plastic yellow, Plastic green, Plastic blue, Plastic colourless
  • Each part number covers the components shown in the catalogue; further parts (e.g. switching elements, LEDs) are selected separately

Specifications

Brand EAO
Product family Illuminated Pushbuttons
Series EAO Series 04 (22.5 mm modular)
Mounting cut-out Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Design Flush
Actuator Illuminated pushbutton
Protection IP 65
Catalogue EAO Series 04 catalogue (Edition 02/2014)
Part numbers 30 printed codes
Source EAO Series 04 catalogue (Edition 02/2014), p. 17-18
704.229.200 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic black
704.229.400 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic black
704.229.500 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic black
704.229.600 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic black
704.229.700 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic black
704.230.208 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic silver
704.230.408 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic silver
704.230.508 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic silver
704.230.608 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic silver
704.230.708 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic silver
704.259.200 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic black
704.259.400 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic black
704.259.500 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic black
704.259.600 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Plastic black
704.259.700 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Plastic black
704.260.208 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic silver
704.260.408 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic silver
704.260.508 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic silver
704.260.608 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Plastic silver
704.260.708 Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Plastic silver
704.032.218 Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Aluminium natural anodized
704.032.418 Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized
704.032.518 Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Aluminium natural anodized
704.032.618 Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Aluminium natural anodized
704.032.718 Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Aluminium natural anodized
704.062.218 Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Aluminium natural anodized
704.062.418 Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized
704.062.518 Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Aluminium natural anodized
704.062.618 Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Aluminium natural anodized
704.062.718 Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Aluminium natural anodized
Illuminated PushbuttonsEAO
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 04 Illuminated Pushbuttons (22.5 mm, Flush Design)

Brand EAO·Illuminated Pushbuttons

Available part numbers (30)

704.229.200, 704.229.400, 704.229.500, 704.229.600, 704.229.700, 704.230.208, 704.230.408, 704.230.508, 704.230.608, 704.230.708 + 20 more — see full table ↓

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
704.229.200Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic black
704.229.400Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic black
704.229.500Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic black
704.229.600Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic black
704.229.700Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic black
704.230.208Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic silver
704.230.408Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic silver
704.230.508Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic silver
704.230.608Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic silver
704.230.708Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic silver
704.259.200Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic black
704.259.400Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic black
704.259.500Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic black
704.259.600Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Plastic black
704.259.700Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Plastic black
704.260.208Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic silver
704.260.408Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic silver
704.260.508Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic silver
704.260.608Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Plastic silver
704.260.708Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Plastic silver
704.032.218Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Aluminium natural anodized
704.032.418Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized
704.032.518Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Aluminium natural anodized
704.032.618Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Aluminium natural anodized
704.032.718Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Aluminium natural anodized
704.062.218Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Aluminium natural anodized
704.062.418Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized
704.062.518Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Aluminium natural anodized
704.062.618Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Aluminium natural anodized
704.062.718Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Aluminium natural anodized
