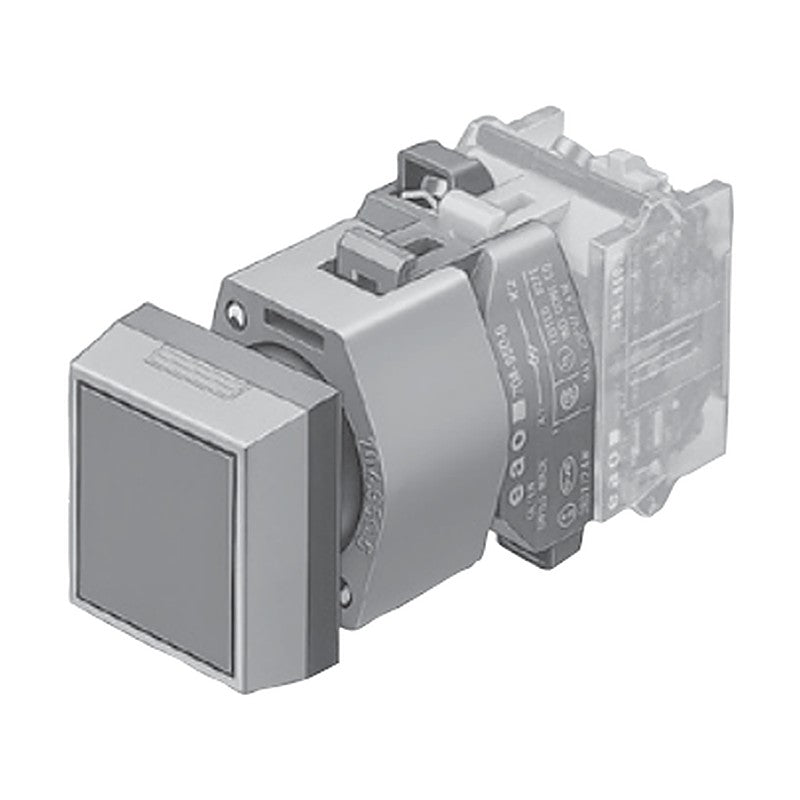

EAO Series 04 Illuminated Pushbuttons (22.5 mm, Raised Design)

EAO Series 04 Illuminated Pushbuttons (22.5 mm, Raised Design)

Illuminated Pushbuttons for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the catalogue ordering tables.

Key features

  • Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
  • Actuator options: Illuminated pushbutton, Mushroom-head pushbutton illuminated
  • Front dimension options: 30 x 30 mm, Ø 29 mm, Ø 40 mm
  • Housing options: Plastic black, Plastic grey
  • Switching action options: B (momentary), C (maintained)
  • Each part number covers the components shown in the catalogue; further parts (e.g. switching elements, LEDs) are selected separately

Specifications

Brand EAO
Product family Illuminated Pushbuttons
Series EAO Series 04 (22.5 mm modular)
Mounting cut-out Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Design Raised
Catalogue EAO Series 04 catalogue (Edition 02/2014)
Part numbers 68 printed codes
Source EAO Series 04 catalogue (Edition 02/2014), p. 79-88
704.230.2 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic grey
704.230.4 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic grey
704.230.5 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic grey
704.230.6 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic grey
704.230.7 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic grey
704.229.2 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic black
704.229.4 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic black
704.229.5 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic black
704.229.6 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic black
704.229.7 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic black
704.260.2 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic grey
704.260.4 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic grey
704.260.5 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic grey
704.260.6 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Plastic grey
704.260.7 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Plastic grey
704.259.2 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic black
704.259.4 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic black
704.259.5 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic black
704.259.6 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Plastic black
704.259.7 Actuator: Illuminated pushbutton | Front dimension: 30 x 30 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Plastic black
704.030.2 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic grey
704.030.4 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic grey
704.030.5 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic grey
704.030.6 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic grey
704.030.7 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic grey
704.029.2 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic black
704.029.4 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic black
704.029.5 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic black
704.029.6 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic black
704.029.7 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic black
704.060.2 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic grey
704.060.4 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic grey
704.060.5 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic grey
704.060.6 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Plastic grey
704.060.7 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Plastic grey
704.059.2 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic black
704.059.4 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic black
704.059.5 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic black
704.059.6 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Plastic black
704.059.7 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Plastic black
704.032.2 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Aluminium natural anodized
704.032.4 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized
704.032.5 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Aluminium natural anodized
704.032.6 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Aluminium natural anodized
704.032.7 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Aluminium natural anodized
704.033.2 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Alu natural anodized with protective cap
704.033.4 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Alu natural anodized with protective cap
704.033.5 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Alu natural anodized with protective cap
704.033.6 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Alu natural anodized with protective cap
704.033.7 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Alu natural anodized with protective cap
704.062.2 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Aluminium natural anodized
704.062.4 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized
704.062.5 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Aluminium natural anodized
704.062.6 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Aluminium natural anodized
704.062.7 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Aluminium natural anodized
704.063.2 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Alu natural anodized with protective cap
704.063.4 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Alu natural anodized with protective cap
704.063.5 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Alu natural anodized with protective cap
704.063.6 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Alu natural anodized with protective cap
704.063.7 Actuator: Illuminated pushbutton | Front dimension: Ø 29 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Alu natural anodized with protective cap
704.084.2 Actuator: Mushroom-head pushbutton illuminated | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic grey
704.084.4 Actuator: Mushroom-head pushbutton illuminated | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic grey
704.084.5 Actuator: Mushroom-head pushbutton illuminated | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic grey
704.084.6 Actuator: Mushroom-head pushbutton illuminated | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic grey
704.084.7 Actuator: Mushroom-head pushbutton illuminated | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic grey
704.086.2 Actuator: Mushroom-head pushbutton illuminated | Front dimension: Ø 40 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic grey
704.086.4 Actuator: Mushroom-head pushbutton illuminated | Front dimension: Ø 40 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic grey
704.086.5 Actuator: Mushroom-head pushbutton illuminated | Front dimension: Ø 40 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic grey
Illuminated PushbuttonsEAO
68 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 04 Illuminated Pushbuttons (22.5 mm, Raised Design)

Brand EAO·Illuminated Pushbuttons

Available part numbers (68)

704.230.2, 704.230.4, 704.230.5, 704.230.6, 704.230.7, 704.229.2, 704.229.4, 704.229.5, 704.229.6, 704.229.7 + 58 more — see full table ↓

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
