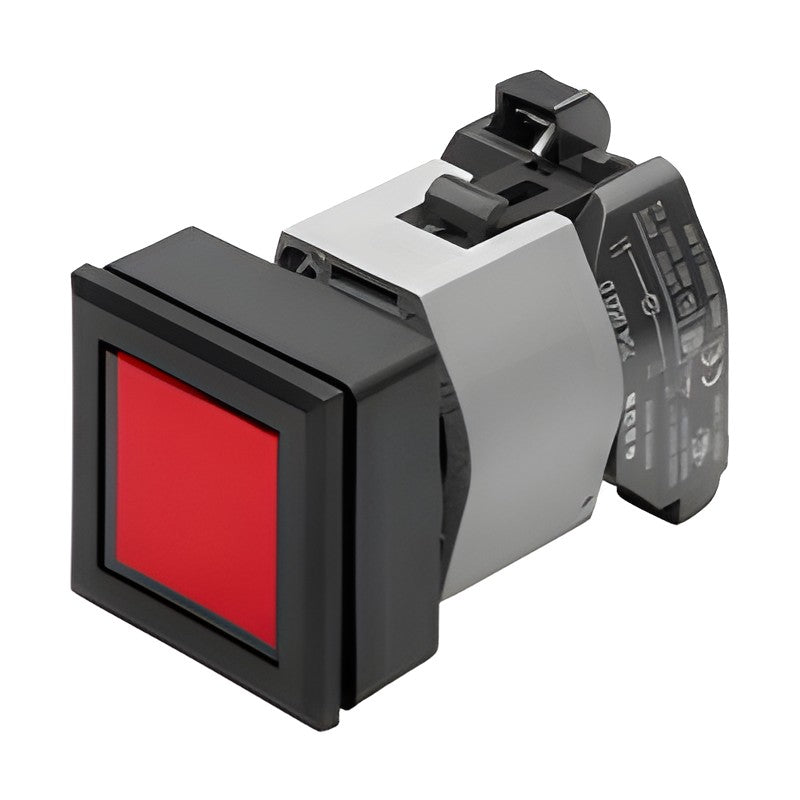

EAO Series 04 Indicators & Flashers (22.5 mm, Flush Design)

EAO Series 04 Indicators & Flashers (22.5 mm, Flush Design)

Indicators & Flashers for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the catalogue ordering tables.

Key features

  • Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
  • Actuator options: Indicator, Indicator square, flush design, Indicator round
  • Front dimension options: 35 x 35 mm, Ø 35 mm
  • Lens options: Plastic red, Plastic yellow, Plastic green, Plastic blue, Plastic colourless
  • Bezel / ring options: Plastic black, Plastic silver, Aluminium natural anodized
  • Each part number covers the components shown in the catalogue; further parts (e.g. switching elements, LEDs) are selected separately

Specifications

Brand EAO
Product family Indicators & Flashers
Series EAO Series 04 (22.5 mm modular)
Mounting cut-out Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Design Flush
Protection IP 65
Catalogue EAO Series 04 catalogue (Edition 02/2014)
Part numbers 18 printed codes
Source EAO Series 04 catalogue (Edition 02/2014), p. 4-7
704.206.200 Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic red | Bezel / ring: Plastic black | Terminal: Screw
704.206.400 Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic yellow | Bezel / ring: Plastic black | Terminal: Screw
704.206.500 Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic green | Bezel / ring: Plastic black | Terminal: Screw
704.206.600 Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic blue | Bezel / ring: Plastic black | Terminal: Screw
704.206.700 Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic colourless | Bezel / ring: Plastic black | Terminal: Screw
704.202.208 Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic red | Bezel / ring: Plastic silver | Terminal: Screw
704.202.408 Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic yellow | Bezel / ring: Plastic silver | Terminal: Screw
704.202.508 Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic green | Bezel / ring: Plastic silver | Terminal: Screw
704.202.608 Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic blue | Bezel / ring: Plastic silver | Terminal: Screw
704.202.708 Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic colourless | Bezel / ring: Plastic silver | Terminal: Screw
704.006.218 Actuator: Indicator | Front dimension: Ø 35 mm | Lens: Plastic red | Bezel / ring: Aluminium natural anodized | Terminal: Screw
704.006.418 Actuator: Indicator | Front dimension: Ø 35 mm | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized | Terminal: Screw
704.006.518 Actuator: Indicator | Front dimension: Ø 35 mm | Lens: Plastic green | Bezel / ring: Aluminium natural anodized | Terminal: Screw
704.006.618 Actuator: Indicator | Front dimension: Ø 35 mm | Lens: Plastic blue | Bezel / ring: Aluminium natural anodized | Terminal: Screw
704.006.718 Actuator: Indicator | Front dimension: Ø 35 mm | Lens: Plastic colourless | Bezel / ring: Aluminium natural anodized | Terminal: Screw
704.743.0 Actuator: Indicator square, flush design | Front dimension: 35 x 35 mm | Lens: - | Bezel / ring: Plastic black | Terminal: -
704.743.8 Actuator: Indicator square, flush design | Front dimension: 35 x 35 mm | Lens: - | Bezel / ring: Plastic silver | Terminal: -
704.633.1 Actuator: Indicator round | Front dimension: - | Lens: - | Bezel / ring: - | Terminal: -
Indicator LightsEAO
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 04 Indicators & Flashers (22.5 mm, Flush Design)

Brand EAO·Indicator Lights

Available part numbers (18)

704.206.200, 704.206.400, 704.206.500, 704.206.600, 704.206.700, 704.202.208, 704.202.408, 704.202.508, 704.202.608, 704.202.708 + 8 more — see full table ↓

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
704.206.200Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic red | Bezel / ring: Plastic black | Terminal: Screw
704.206.400Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic yellow | Bezel / ring: Plastic black | Terminal: Screw
704.206.500Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic green | Bezel / ring: Plastic black | Terminal: Screw
704.206.600Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic blue | Bezel / ring: Plastic black | Terminal: Screw
704.206.700Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic colourless | Bezel / ring: Plastic black | Terminal: Screw
704.202.208Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic red | Bezel / ring: Plastic silver | Terminal: Screw
704.202.408Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic yellow | Bezel / ring: Plastic silver | Terminal: Screw
704.202.508Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic green | Bezel / ring: Plastic silver | Terminal: Screw
704.202.608Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic blue | Bezel / ring: Plastic silver | Terminal: Screw
704.202.708Actuator: Indicator | Front dimension: 35 x 35 mm | Lens: Plastic colourless | Bezel / ring: Plastic silver | Terminal: Screw
704.006.218Actuator: Indicator | Front dimension: Ø 35 mm | Lens: Plastic red | Bezel / ring: Aluminium natural anodized | Terminal: Screw
704.006.418Actuator: Indicator | Front dimension: Ø 35 mm | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized | Terminal: Screw
704.006.518Actuator: Indicator | Front dimension: Ø 35 mm | Lens: Plastic green | Bezel / ring: Aluminium natural anodized | Terminal: Screw
704.006.618Actuator: Indicator | Front dimension: Ø 35 mm | Lens: Plastic blue | Bezel / ring: Aluminium natural anodized | Terminal: Screw
704.006.718Actuator: Indicator | Front dimension: Ø 35 mm | Lens: Plastic colourless | Bezel / ring: Aluminium natural anodized | Terminal: Screw
704.743.0Actuator: Indicator square, flush design | Front dimension: 35 x 35 mm | Lens: - | Bezel / ring: Plastic black | Terminal: -
704.743.8Actuator: Indicator square, flush design | Front dimension: 35 x 35 mm | Lens: - | Bezel / ring: Plastic silver | Terminal: -
704.633.1Actuator: Indicator round | Front dimension: - | Lens: - | Bezel / ring: - | Terminal: -
