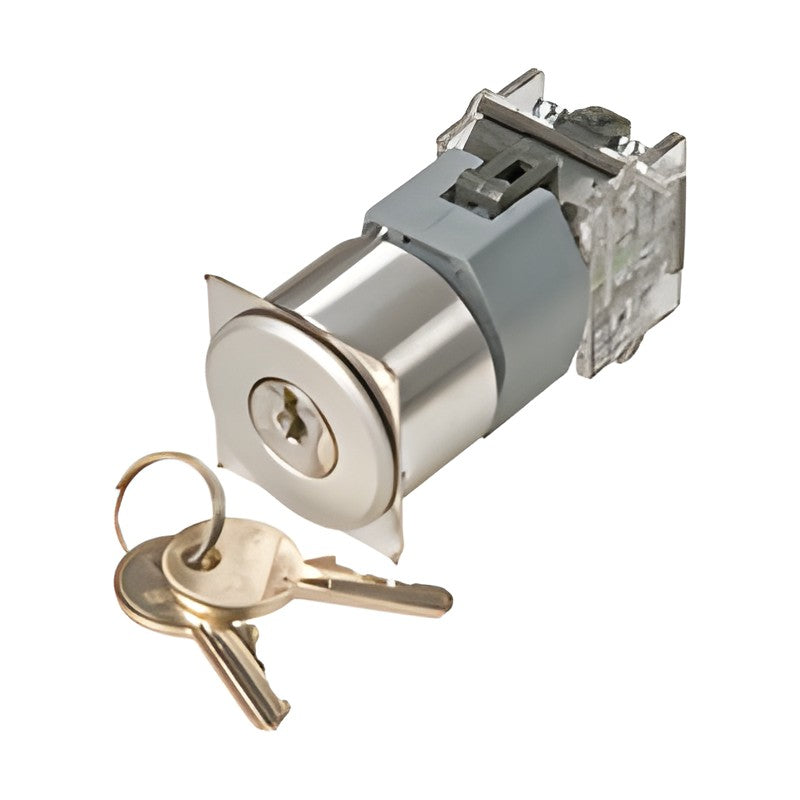

EAO Series 04 Keylock Switches (22.5 mm, Flush Design)

EAO Series 04 Keylock Switches (22.5 mm, Flush Design)

Keylock Switches for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the catalogue ordering tables.

Key features

  • Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
  • Actuator options: Keylock switch 2 positions, Keylock switch 3 positions, Keylock rotary switch, Key-insert switch 2 positions, Key-insert switch 3 positions
  • Front dimension options: 35 x 35 mm, Ø 35 mm, Ø 38 mm
  • Switching action options: A - B; B = 42°, A - C; C = 90°, B - A - C; B = 42°, C = 42°, C - A - B; C = 42°, B = 42°, B - A - B; B = 42° / 42° and more
  • Bezel / ring options: Plastic black, Plastic silver, Aluminium natural anodized, Stainless-steel natural
  • Each part number covers the components shown in the catalogue; further parts (e.g. switching elements, LEDs) are selected separately

Specifications

Brand EAO
Product family Keylock Switches
Series EAO Series 04 (22.5 mm modular)
Mounting cut-out Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Design Flush
Catalogue EAO Series 04 catalogue (Edition 02/2014)
Part numbers 41 printed codes
Source EAO Series 04 catalogue (Edition 02/2014), p. 23-52
704.343.000 Actuator: Keylock switch 2 positions | Front dimension: 35 x 35 mm | Switching action: A - B; B = 42° | Bezel / ring: Plastic black | Key remove: A | Switching positions: -
704.343.008 Actuator: Keylock switch 2 positions | Front dimension: 35 x 35 mm | Switching action: A - B; B = 42° | Bezel / ring: Plastic silver | Key remove: A | Switching positions: -
704.340.000 Actuator: Keylock switch 2 positions | Front dimension: 35 x 35 mm | Switching action: A - C; C = 90° | Bezel / ring: Plastic black | Key remove: C | Switching positions: -
704.341.000 Actuator: Keylock switch 2 positions | Front dimension: 35 x 35 mm | Switching action: A - C; C = 90° | Bezel / ring: Plastic black | Key remove: A | Switching positions: -
704.342.000 Actuator: Keylock switch 2 positions | Front dimension: 35 x 35 mm | Switching action: A - C; C = 90° | Bezel / ring: Plastic black | Key remove: A + C | Switching positions: -
704.340.008 Actuator: Keylock switch 2 positions | Front dimension: 35 x 35 mm | Switching action: A - C; C = 90° | Bezel / ring: Plastic silver | Key remove: C | Switching positions: -
704.341.008 Actuator: Keylock switch 2 positions | Front dimension: 35 x 35 mm | Switching action: A - C; C = 90° | Bezel / ring: Plastic silver | Key remove: A | Switching positions: -
704.342.008 Actuator: Keylock switch 2 positions | Front dimension: 35 x 35 mm | Switching action: A - C; C = 90° | Bezel / ring: Plastic silver | Key remove: A + C | Switching positions: -
704.123.018 Actuator: Keylock switch 2 positions | Front dimension: Ø 35 mm | Switching action: A - B; B = 42° | Bezel / ring: Aluminium natural anodized | Key remove: A | Switching positions: -
704.120.018 Actuator: Keylock switch 2 positions | Front dimension: Ø 35 mm | Switching action: A - C; C = 90° | Bezel / ring: Aluminium natural anodized | Key remove: C | Switching positions: -
704.121.018 Actuator: Keylock switch 2 positions | Front dimension: Ø 35 mm | Switching action: A - C; C = 90° | Bezel / ring: Aluminium natural anodized | Key remove: A | Switching positions: -
704.122.018 Actuator: Keylock switch 2 positions | Front dimension: Ø 35 mm | Switching action: A - C; C = 90° | Bezel / ring: Aluminium natural anodized | Key remove: A + C | Switching positions: -
704.338.000 Actuator: Keylock switch 3 positions | Front dimension: 35 x 35 mm | Switching action: B - A - C; B = 42°, C = 42° | Bezel / ring: Plastic black | Key remove: A | Switching positions: -
704.338.008 Actuator: Keylock switch 3 positions | Front dimension: 35 x 35 mm | Switching action: B - A - C; B = 42°, C = 42° | Bezel / ring: Plastic silver | Key remove: A | Switching positions: -
704.337.000 Actuator: Keylock switch 3 positions | Front dimension: 35 x 35 mm | Switching action: C - A - B; C = 42°, B = 42° | Bezel / ring: Plastic black | Key remove: C | Switching positions: -
704.344.000 Actuator: Keylock switch 3 positions | Front dimension: 35 x 35 mm | Switching action: C - A - B; C = 42°, B = 42° | Bezel / ring: Plastic black | Key remove: C + A | Switching positions: -
704.337.008 Actuator: Keylock switch 3 positions | Front dimension: 35 x 35 mm | Switching action: C - A - B; C = 42°, B = 42° | Bezel / ring: Plastic silver | Key remove: C | Switching positions: -
704.344.008 Actuator: Keylock switch 3 positions | Front dimension: 35 x 35 mm | Switching action: C - A - B; C = 42°, B = 42° | Bezel / ring: Plastic silver | Key remove: C + A | Switching positions: -
704.335.000 Actuator: Keylock switch 3 positions | Front dimension: 35 x 35 mm | Switching action: B - A - B; B = 42° / 42° | Bezel / ring: Plastic black | Key remove: A | Switching positions: -
704.335.008 Actuator: Keylock switch 3 positions | Front dimension: 35 x 35 mm | Switching action: B - A - B; B = 42° / 42° | Bezel / ring: Plastic silver | Key remove: A | Switching positions: -
704.334.000 Actuator: Keylock switch 3 positions | Front dimension: 35 x 35 mm | Switching action: C - A - C; C = 42° / 42° | Bezel / ring: Plastic black | Key remove: A | Switching positions: -
704.336.000 Actuator: Keylock switch 3 positions | Front dimension: 35 x 35 mm | Switching action: C - A - C; C = 42° / 42° | Bezel / ring: Plastic black | Key remove: C + C | Switching positions: -
704.334.008 Actuator: Keylock switch 3 positions | Front dimension: 35 x 35 mm | Switching action: C - A - C; C = 42° / 42° | Bezel / ring: Plastic silver | Key remove: A | Switching positions: -
704.336.008 Actuator: Keylock switch 3 positions | Front dimension: 35 x 35 mm | Switching action: C - A - C; C = 42° / 42° | Bezel / ring: Plastic silver | Key remove: C + C | Switching positions: -
704.333.000 Actuator: Keylock switch 3 positions | Front dimension: 35 x 35 mm | Switching action: C - A - C; C = 90° / 90° | Bezel / ring: Plastic black | Key remove: C + A + C | Switching positions: -
704.333.008 Actuator: Keylock switch 3 positions | Front dimension: 35 x 35 mm | Switching action: C - A - C; C = 90° / 90° | Bezel / ring: Plastic silver | Key remove: C + A + C | Switching positions: -
704.118.018 Actuator: Keylock switch 3 positions | Front dimension: Ø 35 mm | Switching action: B - A - C; B = 42°, C = 42° | Bezel / ring: Aluminium natural anodized | Key remove: A | Switching positions: -
704.117.018 Actuator: Keylock switch 3 positions | Front dimension: Ø 35 mm | Switching action: C - A - B; C = 42°, B = 42° | Bezel / ring: Aluminium natural anodized | Key remove: C | Switching positions: -
704.124.018 Actuator: Keylock switch 3 positions | Front dimension: Ø 35 mm | Switching action: C - A - B; C = 42°, B = 42° | Bezel / ring: Aluminium natural anodized | Key remove: C + A | Switching positions: -
704.115.018 Actuator: Keylock switch 3 positions | Front dimension: Ø 35 mm | Switching action: B - A - B; B = 42° / 42° | Bezel / ring: Aluminium natural anodized | Key remove: A | Switching positions: -
704.114.018 Actuator: Keylock switch 3 positions | Front dimension: Ø 35 mm | Switching action: C - A - C; C = 42° / 42° | Bezel / ring: Aluminium natural anodized | Key remove: A | Switching positions: -
704.116.018 Actuator: Keylock switch 3 positions | Front dimension: Ø 35 mm | Switching action: C - A - C; C = 42° / 42° | Bezel / ring: Aluminium natural anodized | Key remove: C + C | Switching positions: -
704.113.018 Actuator: Keylock switch 3 positions | Front dimension: Ø 35 mm | Switching action: C - A - C; C = 90° / 90° | Bezel / ring: Aluminium natural anodized | Key remove: C + A + C | Switching positions: -
704.123.018KN Actuator: Keylock rotary switch | Front dimension: Ø 35 mm | Switching action: C - A; C = 90° | Bezel / ring: Aluminium natural anodized | Key remove: 12 o'clock | Switching positions: Rest = 12 o'clock
704.123.118KN Actuator: Keylock rotary switch | Front dimension: Ø 35 mm | Switching action: C - A; C = 90° | Bezel / ring: Aluminium natural anodized | Key remove: 9 o'clock | Switching positions: Rest = 9 o'clock
704.101.0x28 Actuator: Key-insert switch 2 positions | Front dimension: Ø 38 mm | Switching action: A - C; C = 90° | Bezel / ring: Stainless-steel natural | Key remove: - | Switching positions: -
704.103.0x28 Actuator: Key-insert switch 2 positions | Front dimension: Ø 38 mm | Switching action: A - B; B = 45° | Bezel / ring: Stainless-steel natural | Key remove: - | Switching positions: -
704.093.0x28 Actuator: Key-insert switch 3 positions | Front dimension: Ø 38 mm | Switching action: C - A - C; C = 45° / 45° | Bezel / ring: Stainless-steel natural | Key remove: - | Switching positions: -
704.095.0x28 Actuator: Key-insert switch 3 positions | Front dimension: Ø 38 mm | Switching action: B - A - B; B = 45° / 45° | Bezel / ring: Stainless-steel natural | Key remove: - | Switching positions: -
704.097.0x28 Actuator: Key-insert switch 3 positions | Front dimension: Ø 38 mm | Switching action: C - A - B; C = 45°, B = 45° | Bezel / ring: Stainless-steel natural | Key remove: - | Switching positions: -
704.099.0x28 Actuator: Key-insert switch 3 positions | Front dimension: Ø 38 mm | Switching action: B - A - C; B = 45°, C = 45° | Bezel / ring: Stainless-steel natural | Key remove: - | Switching positions: -
