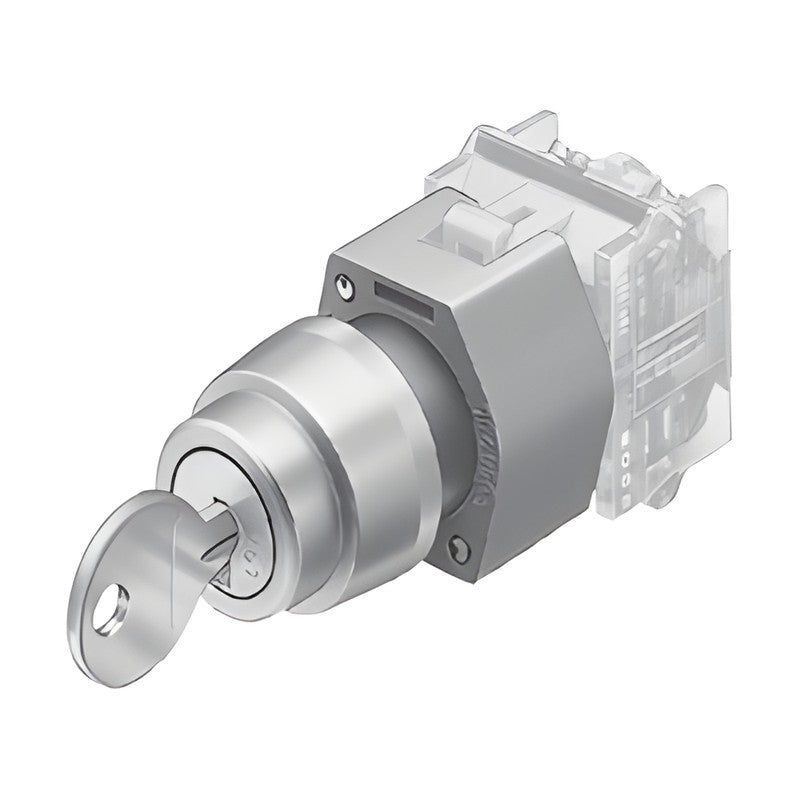

EAO Series 04 Keylock Switches (22.5 mm, Raised Design)

EAO Series 04 Keylock Switches (22.5 mm, Raised Design)

Keylock Switches for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the catalogue ordering tables.

Key features

  • Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
  • Actuator options: Keylock switch 2 positions, Keylock switch 3 positions
  • Front dimension options: 30 x 30 mm, Ø 29 mm
  • Switching action options: A - B; B = 42°, A - C; C = 90°, C - A - B; C = 42°, B = 42°, B - A - B; B = 42° / 42°, C - A - C; C = 42° / 42° and more
  • Bezel / ring options: Plastic grey, Aluminium chrome
  • Each part number covers the components shown in the catalogue; further parts (e.g. switching elements, LEDs) are selected separately

Specifications

Brand EAO
Product family Keylock Switches
Series EAO Series 04 (22.5 mm modular)
Mounting cut-out Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Design Raised
Protection IP 65
Catalogue EAO Series 04 catalogue (Edition 02/2014)
Part numbers 20 printed codes
Source EAO Series 04 catalogue (Edition 02/2014), p. 89-92
704.343.0 Actuator: Keylock switch 2 positions | Front dimension: 30 x 30 mm | Switching action: A - B; B = 42° | Bezel / ring: Plastic grey | Key remove: A
704.340.0 Actuator: Keylock switch 2 positions | Front dimension: 30 x 30 mm | Switching action: A - C; C = 90° | Bezel / ring: Plastic grey | Key remove: C
704.341.0 Actuator: Keylock switch 2 positions | Front dimension: 30 x 30 mm | Switching action: A - C; C = 90° | Bezel / ring: Plastic grey | Key remove: A
704.342.0 Actuator: Keylock switch 2 positions | Front dimension: 30 x 30 mm | Switching action: A - C; C = 90° | Bezel / ring: Plastic grey | Key remove: A + C
704.123.0 Actuator: Keylock switch 2 positions | Front dimension: Ø 29 mm | Switching action: A - B; B = 42° | Bezel / ring: Aluminium chrome | Key remove: A
704.120.0 Actuator: Keylock switch 2 positions | Front dimension: Ø 29 mm | Switching action: A - C; C = 90° | Bezel / ring: Aluminium chrome | Key remove: C
704.121.0 Actuator: Keylock switch 2 positions | Front dimension: Ø 29 mm | Switching action: A - C; C = 90° | Bezel / ring: Aluminium chrome | Key remove: A
704.122.0 Actuator: Keylock switch 2 positions | Front dimension: Ø 29 mm | Switching action: A - C; C = 90° | Bezel / ring: Aluminium chrome | Key remove: A + C
704.337.0 Actuator: Keylock switch 3 positions | Front dimension: 30 x 30 mm | Switching action: C - A - B; C = 42°, B = 42° | Bezel / ring: Plastic grey | Key remove: C
704.344.0 Actuator: Keylock switch 3 positions | Front dimension: 30 x 30 mm | Switching action: C - A - B; C = 42°, B = 42° | Bezel / ring: Plastic grey | Key remove: C + A
704.335.0 Actuator: Keylock switch 3 positions | Front dimension: 30 x 30 mm | Switching action: B - A - B; B = 42° / 42° | Bezel / ring: Plastic grey | Key remove: A
704.334.0 Actuator: Keylock switch 3 positions | Front dimension: 30 x 30 mm | Switching action: C - A - C; C = 42° / 42° | Bezel / ring: Plastic grey | Key remove: A
704.333.0 Actuator: Keylock switch 3 positions | Front dimension: 30 x 30 mm | Switching action: C - A - C; C = 90° / 90° | Bezel / ring: Plastic grey | Key remove: C + A + C
704.118.0 Actuator: Keylock switch 3 positions | Front dimension: Ø 29 mm | Switching action: B - A - C; B = 42°, C = 42° | Bezel / ring: Aluminium chrome | Key remove: A
704.117.0 Actuator: Keylock switch 3 positions | Front dimension: Ø 29 mm | Switching action: C - A - B; C = 42°, B = 42° | Bezel / ring: Aluminium chrome | Key remove: C
704.124.0 Actuator: Keylock switch 3 positions | Front dimension: Ø 29 mm | Switching action: C - A - B; C = 42°, B = 42° | Bezel / ring: Aluminium chrome | Key remove: C + A
704.115.0 Actuator: Keylock switch 3 positions | Front dimension: Ø 29 mm | Switching action: B - A - B; B = 42° / 42° | Bezel / ring: Aluminium chrome | Key remove: A
704.114.0 Actuator: Keylock switch 3 positions | Front dimension: Ø 29 mm | Switching action: C - A - C; C = 42° / 42° | Bezel / ring: Aluminium chrome | Key remove: A
704.116.0 Actuator: Keylock switch 3 positions | Front dimension: Ø 29 mm | Switching action: C - A - C; C = 42° / 42° | Bezel / ring: Aluminium chrome | Key remove: C + C
704.113.0 Actuator: Keylock switch 3 positions | Front dimension: Ø 29 mm | Switching action: C - A - C; C = 90° / 90° | Bezel / ring: Aluminium chrome | Key remove: C + A + C
