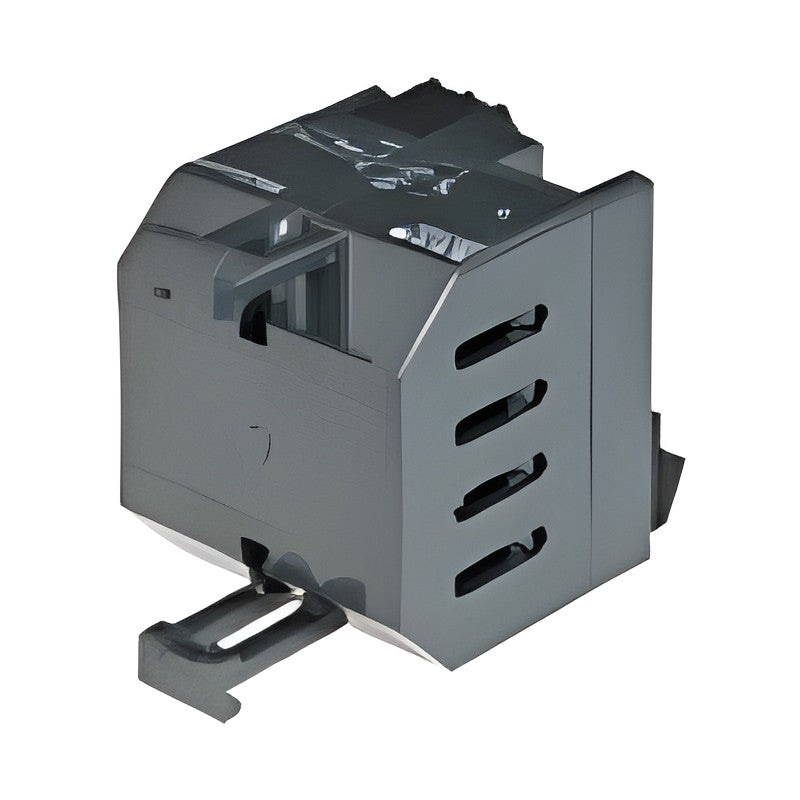

EAO Series 04 Lamp, Diode & Resistor Blocks (22.5 mm)

EAO Series 04 Lamp, Diode & Resistor Blocks (22.5 mm)

Lamp, Diode & Resistor Blocks for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

  • Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
  • Item options: Blind plug, Bayonet flange, Filament lamp, Lamp transformer
  • Operating voltage options: 230 VAC ±6 %, 115 VAC ±10 %, 130 VDC ±10 %, 24 VDC ±15 %, 115 / 24 VAC and more
  • Product attribute options: Lamp voltage/-current 130 V, 20 mA, Lamp voltage/- current 60 V, 33 mA, Lamp voltage/-current 130 V, 3 mA, Lamp voltage/-current 24
  • Terminal options: Push-in Terminal, Screw, Plug 6.3 x 0.8 mm, Double plug 6.3 x 0.8 mm
  • 32 part numbers exactly as printed in the ordering tables

Specifications

Brand EAO
Product family Lamp, Diode & Resistor Blocks
Series EAO Series 04 (22.5 mm modular)
Mounting cut-out Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Catalogue EAO Series 04 catalogue (Edition 02/2014)
Part numbers 32 printed codes
Source EAO Series 04 catalogue (Edition 02/2014), p. 131-152
704.943.0P Item: Blind plug | Operating voltage: 230 VAC ±6 % | Product attribute: Lamp voltage/-current 130 V, 20 mA | Terminal: Push-in Terminal | Details: -
704.943.0 Item: Blind plug | Operating voltage: 230 VAC ±6 % | Product attribute: Lamp voltage/-current 130 V, 20 mA | Terminal: Screw | Details: -
704.943.1P Item: Blind plug | Operating voltage: 115 VAC ±10 % | Product attribute: Lamp voltage/- current 60 V, 33 mA | Terminal: Push-in Terminal | Details: -
704.943.1 Item: Blind plug | Operating voltage: 115 VAC ±10 % | Product attribute: Lamp voltage/- current 60 V, 33 mA | Terminal: Screw | Details: -
704.943.2P Item: Blind plug | Operating voltage: 130 VDC ±10 % | Product attribute: Lamp voltage/-current 130 V, 3 mA | Terminal: Push-in Terminal | Details: -
704.943.2 Item: Blind plug | Operating voltage: 130 VDC ±10 % | Product attribute: Lamp voltage/-current 130 V, 3 mA | Terminal: Screw | Details: -
704.943.5P Item: Blind plug | Operating voltage: 24 VDC ±15 % | Product attribute: Lamp voltage/-current 24 V, 10 ... 85 mA | Terminal: Push-in Terminal | Details: -
704.943.5 Item: Blind plug | Operating voltage: 24 VDC ±15 % | Product attribute: Lamp voltage/-current 24 V, 10 ... 85 mA | Terminal: Screw | Details: -
704.950.5 Item: Bayonet flange | Operating voltage: - | Product attribute: - | Terminal: - | Details: Plastic
704.960.5 Item: Bayonet flange | Operating voltage: - | Product attribute: - | Terminal: - | Details: Metal
704.950.0 Item: Bayonet flange | Operating voltage: - | Product attribute: - | Terminal: Screw | Details: -
704.950.1 Item: Bayonet flange | Operating voltage: - | Product attribute: - | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.950.1/D Item: Bayonet flange | Operating voltage: - | Product attribute: Terminals nickel plated and blank Cu/Sn | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.950.3 Item: Bayonet flange | Operating voltage: - | Product attribute: - | Terminal: Push-in Terminal | Details: -
704.950.2/D Item: Bayonet flange | Operating voltage: - | Product attribute: Terminals nickel plated Cu/Sn | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.950.0B Item: Bayonet flange | Operating voltage: - | Product attribute: for ring cable shoe | Terminal: Screw | Details: -
704.951.0 Item: Bayonet flange | Operating voltage: - | Product attribute: - | Terminal: Screw | Details: -
704.951.1 Item: Bayonet flange | Operating voltage: - | Product attribute: - | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.951.1/D Item: Bayonet flange | Operating voltage: - | Product attribute: Terminals nickel plated and blank Cu/Sn | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.951.3 Item: Bayonet flange | Operating voltage: - | Product attribute: - | Terminal: Push-in Terminal | Details: -
704.942.5P Item: Filament lamp | Operating voltage: - | Product attribute: - | Terminal: Push-in Terminal | Details: 2
704.942.5 Item: Filament lamp | Operating voltage: - | Product attribute: - | Terminal: Screw | Details: 2
704.970.3 Item: Lamp transformer | Operating voltage: 115 / 24 VAC | Product attribute: - | Terminal: Screw | Details: -
704.970.4 Item: Lamp transformer | Operating voltage: 230 / 24 VAC | Product attribute: - | Terminal: Screw | Details: -
704.970.5 Item: Lamp transformer | Operating voltage: 400 / 24 VAC | Product attribute: - | Terminal: Screw | Details: -
704.970.6 Item: Lamp transformer | Operating voltage: 440 / 24 VAC | Product attribute: - | Terminal: Screw | Details: -
704.941.0P Item: Lamp transformer | Operating voltage: 230 / 130 VAC | Product attribute: Lamp voltage/-current 130 V, 20 mA | Terminal: Push-in Terminal | Details: -
704.941.0 Item: Lamp transformer | Operating voltage: 230 / 130 VAC | Product attribute: Lamp voltage/-current 130 V, 20 mA | Terminal: Screw | Details: -
704.941.5P Item: Lamp transformer | Operating voltage: 125 / 60 VAC | Product attribute: Lamp voltage/- current 60 V, 33 mA | Terminal: Push-in Terminal | Details: -
704.941.5 Item: Lamp transformer | Operating voltage: 125 / 60 VAC | Product attribute: Lamp voltage/- current 60 V, 33 mA | Terminal: Screw | Details: -
704.941.9 Item: Lamp transformer | Operating voltage: 230 / 130 VAC | Product attribute: - | Terminal: Screw | Details: -
704.941.9P Item: Lamp transformer | Operating voltage: 230 / 130 VAC | Product attribute: - | Terminal: Screw | Details: -
