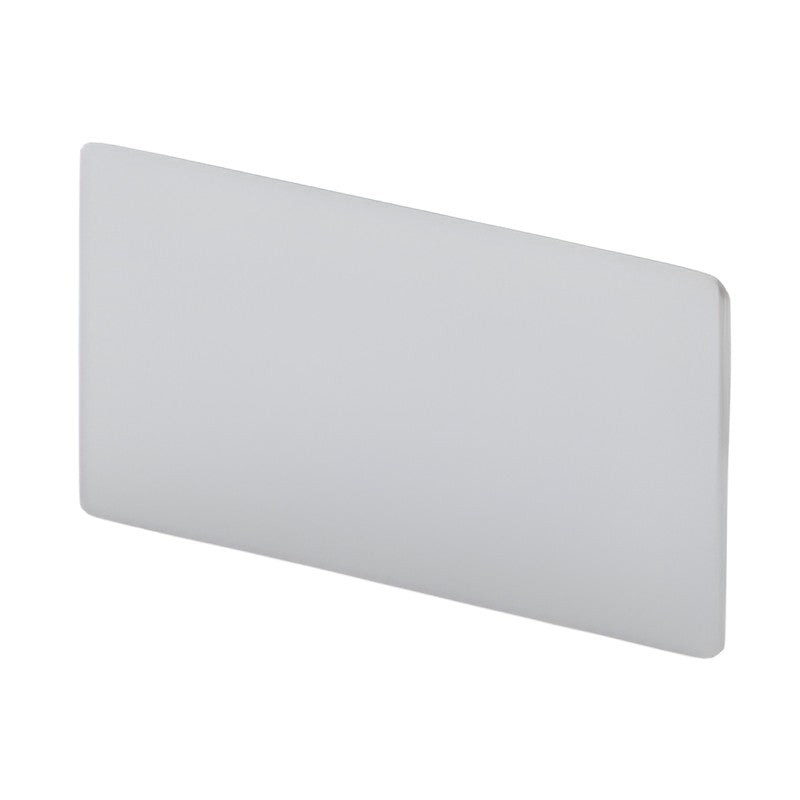

EAO Series 04 Legend Frames & Plates (22.5 mm)

EAO Series 04 Legend Frames & Plates (22.5 mm)

Legend Frames & Plates for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

  • Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
  • Item options: Legend frame, Legend plate for legend frame, Legend plate for flush design, Legend plate for rotary selector switch
  • Colour options: black anodized, natural anodized
  • Product attribute options: for raised design, for flush design, for raised design Ø 29 mm, for flush design Ø 35 mm
  • Dimension options: 30 x 50 x 0.75 mm, 35 x 57.5 x 0.75 mm, 14.5 x 23.5 mm, 18 x 35 mm, 48 x 48 mm and more
  • 10 part numbers exactly as printed in the ordering tables

Specifications

Brand EAO
Product family Legend Frames & Plates
Series EAO Series 04 (22.5 mm modular)
Mounting cut-out Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Material Aluminium
Mounting type adhesive
Catalogue EAO Series 04 catalogue (Edition 02/2014)
Part numbers 10 printed codes
Source EAO Series 04 catalogue (Edition 02/2014), p. 117-118
704.968.2 Item: Legend frame | Colour: black anodized | Product attribute: for raised design | Dimension: 30 x 50 x 0.75 mm
704.968.3 Item: Legend frame | Colour: black anodized | Product attribute: for flush design | Dimension: 35 x 57.5 x 0.75 mm
704.968.0 Item: Legend plate for legend frame | Colour: natural anodized | Product attribute: - | Dimension: 14.5 x 23.5 mm
704.968.1 Item: Legend plate for legend frame | Colour: black anodized | Product attribute: - | Dimension: 14.5 x 23.5 mm
704.968.4 Item: Legend plate for flush design | Colour: natural anodized | Product attribute: - | Dimension: 18 x 35 mm
704.968.5 Item: Legend plate for flush design | Colour: black anodized | Product attribute: - | Dimension: 18 x 35 mm
704.968.10 Item: Legend plate for rotary selector switch | Colour: black anodized | Product attribute: for raised design Ø 29 mm | Dimension: 48 x 48 mm
704.968.11 Item: Legend plate for rotary selector switch | Colour: black anodized | Product attribute: for flush design Ø 35 mm | Dimension: 48 x 48 mm
704.968.12 Item: Legend plate for rotary selector switch | Colour: black anodized | Product attribute: for raised design Ø 29 mm | Dimension: 48 x 60 mm
704.968.13 Item: Legend plate for rotary selector switch | Colour: black anodized | Product attribute: for flush design Ø 35 mm | Dimension: 48 x 60 mm
