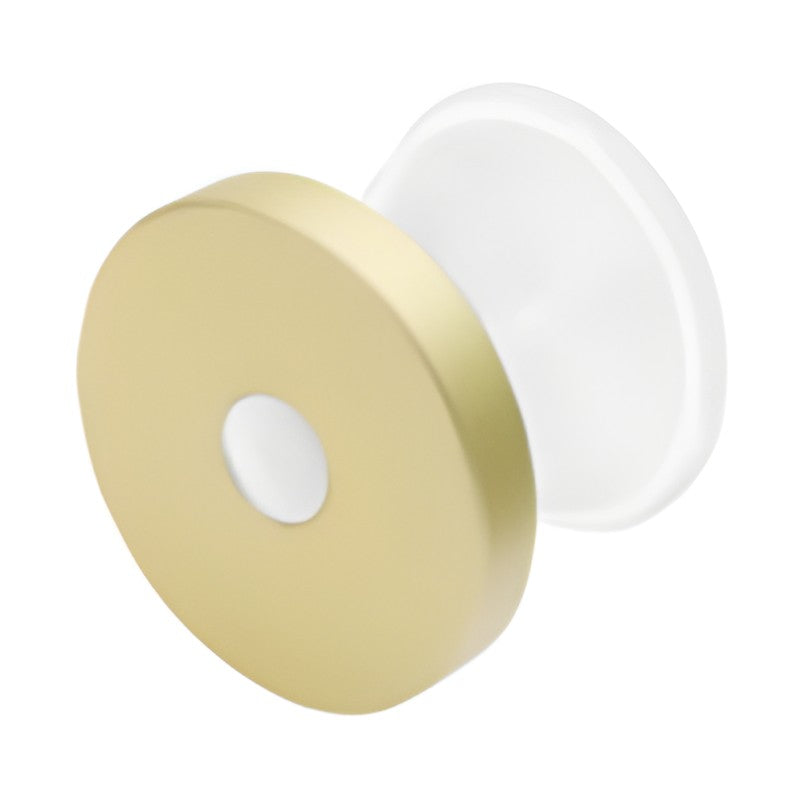

EAO Series 04 Lens Caps & Marking Plates (22.5 mm)

EAO Series 04 Lens Caps & Marking Plates (22.5 mm)

Lens Caps & Marking Plates for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

  • Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
  • Item options: Lens holder for lens square, Lens cap round, 29 mm, Lens cap square, 30x30 mm, Marking foil for lens square, front, Marking foil for lens square
  • Illumination options: LED, non-illuminative, LED and filament lamp, Halo illumination
  • Material/colour options: colourless transparent, white translucent, Plastic red, Plastic yellow, Plastic green and more
  • Details options: can be marked, colourless, can be hot stamped, Plastic, colourless, only together with lenses
  • 25 part numbers exactly as printed in the ordering tables

Specifications

Brand EAO
Product family Lens Caps & Marking Plates
Series EAO Series 04 (22.5 mm modular)
Mounting cut-out Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Catalogue EAO Series 04 catalogue (Edition 02/2014)
Part numbers 25 printed codes
Source EAO Series 04 catalogue (Edition 02/2014), p. 121-126
704.709.7 Item: Lens holder for lens square | Illumination: LED | Material/colour: colourless transparent | Details: -
704.709.9 Item: Lens holder for lens square | Illumination: LED | Material/colour: white translucent | Details: can be marked
704.603.2 Item: Lens cap round, 29 mm | Illumination: - | Material/colour: Plastic red | Details: -
704.603.4 Item: Lens cap round, 29 mm | Illumination: - | Material/colour: Plastic yellow | Details: -
704.603.5 Item: Lens cap round, 29 mm | Illumination: - | Material/colour: Plastic green | Details: -
704.603.6 Item: Lens cap round, 29 mm | Illumination: - | Material/colour: Plastic blue | Details: -
704.603.7 Item: Lens cap round, 29 mm | Illumination: - | Material/colour: Plastic colourless | Details: -
704.703.2 Item: Lens cap square, 30 x 30 mm | Illumination: - | Material/colour: Plastic red | Details: -
704.703.4 Item: Lens cap square, 30 x 30 mm | Illumination: - | Material/colour: Plastic yellow | Details: -
704.703.5 Item: Lens cap square, 30 x 30 mm | Illumination: - | Material/colour: Plastic green | Details: -
704.703.6 Item: Lens cap square, 30 x 30 mm | Illumination: - | Material/colour: Plastic blue | Details: -
704.703.7 Item: Lens cap square, 30 x 30 mm | Illumination: - | Material/colour: Plastic colourless | Details: -
704.707.7 Item: Marking foil for lens square, front | Illumination: - | Material/colour: - | Details: colourless, can be hot stamped, Plastic
704.706.7 Item: Marking foil for lens square, full face | Illumination: - | Material/colour: - | Details: colourless, can be hot stamped, Plastic
704.609.0 Item: Marking plate for lens round flat | Illumination: non-illuminative | Material/colour: black opaque | Details: -
704.609.7 Item: Marking plate for lens round flat | Illumination: LED | Material/colour: colourless transparent ripped | Details: -
704.609.9 Item: Marking plate for lens round flat | Illumination: LED and filament lamp | Material/colour: white translucent | Details: -
704.609.9A01 Item: Marking plate for lens round flat | Illumination: Halo illumination | Material/colour: white translucent | Details: -
704.610.7 Item: Marking cap for lens round raised | Illumination: LED | Material/colour: colourless transparent ripped | Details: -
704.610.9 Item: Marking cap for lens round raised | Illumination: LED and filament lamp | Material/colour: white translucent | Details: -
704.608.7 Item: Marking cap for lens cap round | Illumination: LED | Material/colour: colourless transparent ripped | Details: -
704.608.9 Item: Marking cap for lens cap round | Illumination: LED and filament lamp | Material/colour: white translucent | Details: -
704.708.7 Item: Diffusor cap for lens cap square | Illumination: - | Material/colour: colourless transparent | Details: -
704.708.9 Item: Diffusor cap for lens cap square | Illumination: - | Material/colour: white translucent | Details: can be marked
704.953.0 Item: Front protective cap | Illumination: - | Material/colour: - | Details: colourless, only together with lenses
