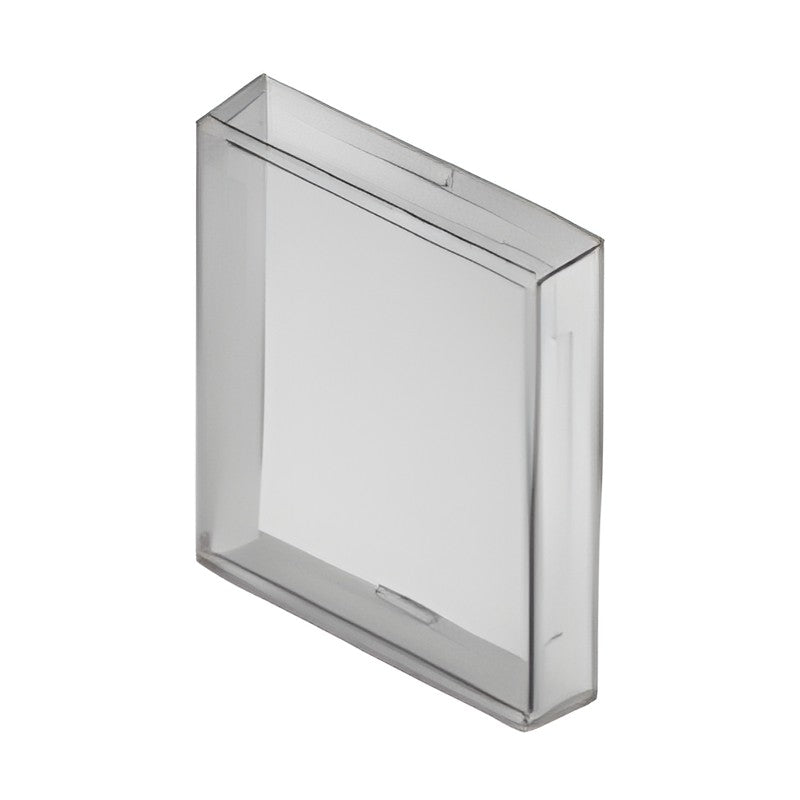

• EAO Series 04 Lenses (22.5 mm)
1 1

EAO Series 04 Lenses (22.5 mm)

EAO Series 04 Lenses (22.5 mm)

Lenses for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

  • Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
  • Item options: Lens plastic square, Lens plastic round flat, Lens plastic round raised, Lens metal round, Lens metal with spot round
  • Lens options: black opaque, red transparent, yellow transparent, green transparent, blue transparent and more
  • Product attribute options: non-illuminative, illuminative
  • Dimension options: 24.4 x 24.4 mm, Ø 23.7 mm
  • 34 part numbers exactly as printed in the ordering tables

Specifications

Brand EAO
Product family Lenses
Series EAO Series 04 (22.5 mm modular)
Mounting cut-out Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Catalogue EAO Series 04 catalogue (Edition 02/2014)
Part numbers 34 printed codes
Source EAO Series 04 catalogue (Edition 02/2014), p. 119-121
704.702.0 Item: Lens plastic square | Lens: black opaque | Product attribute: non-illuminative | Dimension: 24.4 x 24.4 mm | Details: -
704.702.2 Item: Lens plastic square | Lens: red transparent | Product attribute: illuminative | Dimension: 24.4 x 24.4 mm | Details: -
704.702.4 Item: Lens plastic square | Lens: yellow transparent | Product attribute: illuminative | Dimension: 24.4 x 24.4 mm | Details: -
704.702.5 Item: Lens plastic square | Lens: green transparent | Product attribute: illuminative | Dimension: 24.4 x 24.4 mm | Details: -
704.702.6 Item: Lens plastic square | Lens: blue transparent | Product attribute: illuminative | Dimension: 24.4 x 24.4 mm | Details: -
704.702.7 Item: Lens plastic square | Lens: colourless transparent | Product attribute: illuminative | Dimension: 24.4 x 24.4 mm | Details: -
704.702.9 Item: Lens plastic square | Lens: white opaque | Product attribute: non-illuminative | Dimension: 24.4 x 24.4 mm | Details: -
704.602.0 Item: Lens plastic round flat | Lens: black opaque | Product attribute: non-illuminative | Dimension: Ø 23.7 mm | Details: -
704.602.2 Item: Lens plastic round flat | Lens: red transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.602.4 Item: Lens plastic round flat | Lens: yellow transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.602.5 Item: Lens plastic round flat | Lens: green transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.602.6 Item: Lens plastic round flat | Lens: blue transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.602.7 Item: Lens plastic round flat | Lens: colourless transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.602.7A01 Item: Lens plastic round flat | Lens: colourless transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: Ring
704.611.2 Item: Lens plastic round raised | Lens: red transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.611.4 Item: Lens plastic round raised | Lens: yellow transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.611.5 Item: Lens plastic round raised | Lens: green transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.611.7 Item: Lens plastic round raised | Lens: colourless transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.0 Item: Lens metal round | Lens: Aluminium black anodized | Product attribute: non-illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.2 Item: Lens metal round | Lens: Aluminium red anodized | Product attribute: non-illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.4 Item: Lens metal round | Lens: Aluminium gold anodized | Product attribute: non-illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.5 Item: Lens metal round | Lens: Aluminium olive-green anodized | Product attribute: non-illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.6 Item: Lens metal round | Lens: Aluminium blue anodized | Product attribute: non-illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.8 Item: Lens metal round | Lens: Aluminium natural anodized | Product attribute: non-illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.9 Item: Lens metal round | Lens: Stainless-steel natural 304 | Product attribute: non-illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.10 Item: Lens metal round | Lens: Stainless-steel natural 316 | Product attribute: non-illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.01 Item: Lens metal with spot round | Lens: Aluminium black anodized | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.21 Item: Lens metal with spot round | Lens: Aluminium red anodized | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.41 Item: Lens metal with spot round | Lens: Aluminium gold anodized | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.51 Item: Lens metal with spot round | Lens: Aluminium olive-green anodized | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.61 Item: Lens metal with spot round | Lens: Aluminium blue anodized | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.81 Item: Lens metal with spot round | Lens: Aluminium natural anodized | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.91 Item: Lens metal with spot round | Lens: Stainless-steel natural 304 | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.101 Item: Lens metal with spot round | Lens: Stainless-steel natural 316 | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
Pushbutton AccessoriesEAO
34 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 04 Lenses (22.5 mm)

Brand EAO·Pushbutton Accessories

Available part numbers (34)

704.702.0, 704.702.2, 704.702.4, 704.702.5, 704.702.6, 704.702.7, 704.702.9, 704.602.0, 704.602.2, 704.602.4 + 24 more — see full table ↓

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
704.702.0Item: Lens plastic square | Lens: black opaque | Product attribute: non-illuminative | Dimension: 24.4 x 24.4 mm | Details: -
704.702.2Item: Lens plastic square | Lens: red transparent | Product attribute: illuminative | Dimension: 24.4 x 24.4 mm | Details: -
704.702.4Item: Lens plastic square | Lens: yellow transparent | Product attribute: illuminative | Dimension: 24.4 x 24.4 mm | Details: -
704.702.5Item: Lens plastic square | Lens: green transparent | Product attribute: illuminative | Dimension: 24.4 x 24.4 mm | Details: -
704.702.6Item: Lens plastic square | Lens: blue transparent | Product attribute: illuminative | Dimension: 24.4 x 24.4 mm | Details: -
704.702.7Item: Lens plastic square | Lens: colourless transparent | Product attribute: illuminative | Dimension: 24.4 x 24.4 mm | Details: -
704.702.9Item: Lens plastic square | Lens: white opaque | Product attribute: non-illuminative | Dimension: 24.4 x 24.4 mm | Details: -
704.602.0Item: Lens plastic round flat | Lens: black opaque | Product attribute: non-illuminative | Dimension: Ø 23.7 mm | Details: -
704.602.2Item: Lens plastic round flat | Lens: red transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.602.4Item: Lens plastic round flat | Lens: yellow transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.602.5Item: Lens plastic round flat | Lens: green transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.602.6Item: Lens plastic round flat | Lens: blue transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.602.7Item: Lens plastic round flat | Lens: colourless transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.602.7A01Item: Lens plastic round flat | Lens: colourless transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: Ring
704.611.2Item: Lens plastic round raised | Lens: red transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.611.4Item: Lens plastic round raised | Lens: yellow transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.611.5Item: Lens plastic round raised | Lens: green transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.611.7Item: Lens plastic round raised | Lens: colourless transparent | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.0Item: Lens metal round | Lens: Aluminium black anodized | Product attribute: non-illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.2Item: Lens metal round | Lens: Aluminium red anodized | Product attribute: non-illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.4Item: Lens metal round | Lens: Aluminium gold anodized | Product attribute: non-illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.5Item: Lens metal round | Lens: Aluminium olive-green anodized | Product attribute: non-illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.6Item: Lens metal round | Lens: Aluminium blue anodized | Product attribute: non-illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.8Item: Lens metal round | Lens: Aluminium natural anodized | Product attribute: non-illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.9Item: Lens metal round | Lens: Stainless-steel natural 304 | Product attribute: non-illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.10Item: Lens metal round | Lens: Stainless-steel natural 316 | Product attribute: non-illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.01Item: Lens metal with spot round | Lens: Aluminium black anodized | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.21Item: Lens metal with spot round | Lens: Aluminium red anodized | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.41Item: Lens metal with spot round | Lens: Aluminium gold anodized | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.51Item: Lens metal with spot round | Lens: Aluminium olive-green anodized | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.61Item: Lens metal with spot round | Lens: Aluminium blue anodized | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.81Item: Lens metal with spot round | Lens: Aluminium natural anodized | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.91Item: Lens metal with spot round | Lens: Stainless-steel natural 304 | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
704.601.101Item: Lens metal with spot round | Lens: Stainless-steel natural 316 | Product attribute: illuminative | Dimension: Ø 23.7 mm | Details: -
