EAO Series 04 Mounting Parts, Tools & Spares (22.5 mm)

Mounting Parts, Tools & Spares for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
Item options: Anti-twist ring, flush design, Reducing ring, Reducing ring with opening for anti, Mounting plate, Reinforcement ring and more
Colour options: black anodized, natural anodized, grey, galvanized, yellow passivated
Material options: Aluminium, Plastic, Steel sheet
Details options: with slot for anti-twist device, 44 x 29 x 3 mm, Ø 22.5 mm, for keylock number 251, keylock type
11 part numbers exactly as printed in the ordering tables

Specifications

Brand	EAO
Product family	Mounting Parts, Tools & Spares
Series	EAO Series 04 (22.5 mm modular)
Mounting cut-out	Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Catalogue	EAO Series 04 catalogue (Edition 02/2014)
Part numbers	11 printed codes
Source	EAO Series 04 catalogue (Edition 02/2014), p. 129-159

704.954.0		Item: Anti-twist ring, flush design \| Colour: - \| Material: - \| Details: -
704.960.0		Item: Reducing ring \| Colour: black anodized \| Material: Aluminium \| Details: -
704.960.8		Item: Reducing ring \| Colour: natural anodized \| Material: Aluminium \| Details: -
704.960.8A		Item: Reducing ring with opening for anti \| Colour: natural anodized \| Material: Aluminium \| Details: with slot for anti-twist device

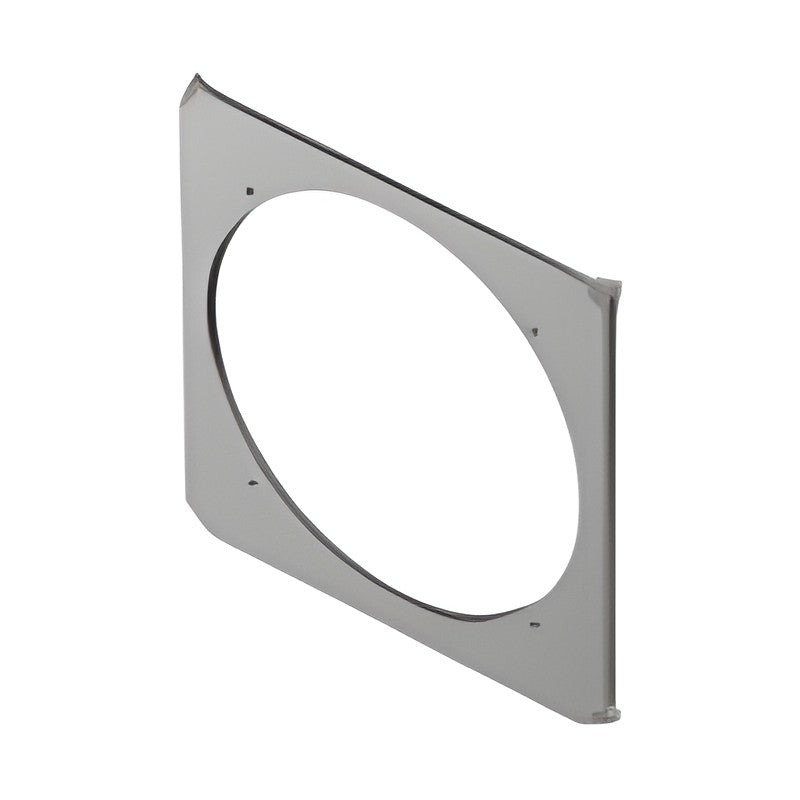

704.940.8		Item: Mounting plate \| Colour: grey \| Material: Plastic \| Details: -
704.960.9		Item: Reinforcement ring \| Colour: galvanized, yellow passivated \| Material: Steel sheet \| Details: 44 x 29 x 3 mm, Ø 22.5 mm
700.006.0		Item: Lens plug for round lens, flush design \| Colour: - \| Material: - \| Details: -
98-968		Item: Lens remover \| Colour: - \| Material: - \| Details: -
700.005.0		Item: Mounting tool for indicator \| Colour: - \| Material: - \| Details: -
704.990.0		Item: Mounting tool for key insert switch \| Colour: - \| Material: - \| Details: -
704.989.251		Item: Spare key \| Colour: - \| Material: - \| Details: for keylock number 251, keylock type

Pushbutton AccessoriesEAO

11 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 04 Mounting Parts, Tools & Spares (22.5 mm)

Brand EAO·Pushbutton Accessories

Available part numbers (11)

704.954.0, 704.960.0, 704.960.8, 704.960.8A, 704.940.8, 704.960.9, 700.006.0, 98-968, 700.005.0, 704.990.0 + 1 more — see full table ↓

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
