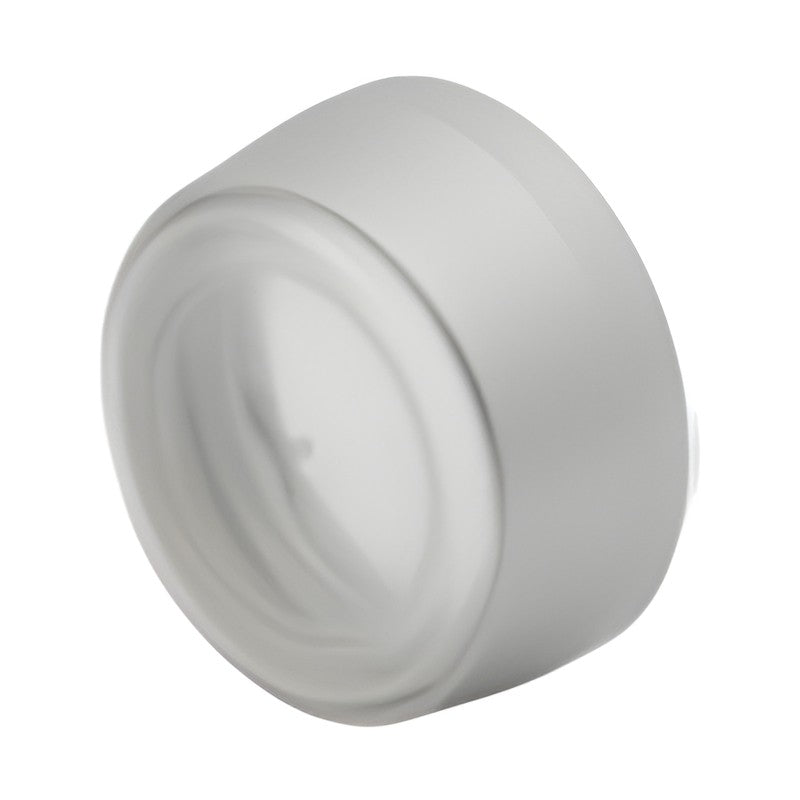

EAO Series 04 Protective Covers (22.5 mm)

Protective Covers for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
Item options: Protective cover square, flush design, Protective cover round, flush design, Protection cover round, raised design, Blind plug
Colour options: colourless, natural anodized, black
Product attribute options: with means for sealing, for pushbutton, with means for sealing, for selector, not with means for sealing, with spring, for pushbutton
Dimension options: 38.5 x 45 mm, 37 x 44.5 mm, 38 x 50 mm, 30 x 37 mm, Ø 22.5 mm and more
13 part numbers exactly as printed in the ordering tables

Specifications

Brand	EAO
Product family	Protective Covers
Series	EAO Series 04 (22.5 mm modular)
Mounting cut-out	Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Catalogue	EAO Series 04 catalogue (Edition 02/2014)
Part numbers	13 printed codes
Source	EAO Series 04 catalogue (Edition 02/2014), p. 127-130

704.925.8		Item: Protective cover square, flush design \| Colour: - \| Product attribute: with means for sealing, for pushbutton \| Dimension: 38.5 x 45 mm \| Material: Plastic \| Optics: transparent
704.925.9		Item: Protective cover square, flush design \| Colour: - \| Product attribute: with means for sealing, for selector \| Dimension: 38.5 x 45 mm \| Material: Plastic \| Optics: transparent
704.925.7		Item: Protective cover round, flush design \| Colour: colourless \| Product attribute: with means for sealing, for pushbutton \| Dimension: 37 x 44.5 mm \| Material: Plastic \| Optics: transparent
704.928.18		Item: Protective cover round, flush design \| Colour: natural anodized \| Product attribute: not with means for sealing, with spring \| Dimension: 38 x 50 mm \| Material: Aluminium \| Optics: -
704.928.28		Item: Protective cover round, flush design \| Colour: natural anodized \| Product attribute: with means for sealing, for pushbutton \| Dimension: 38 x 50 mm \| Material: Aluminium \| Optics: -
704.928.38		Item: Protective cover round, flush design \| Colour: natural anodized \| Product attribute: with means for sealing, for pushbutton \| Dimension: 38 x 50 mm \| Material: Aluminium \| Optics: -
704.925.0		Item: Protection cover round, raised design \| Colour: - \| Product attribute: for pushbutton with mounting cut-out Ø \| Dimension: 30 x 37 mm \| Material: Plastic \| Optics: transparent
704.925.3		Item: Protection cover round, raised design \| Colour: - \| Product attribute: with spring fitted, for pushbutton with \| Dimension: 30 x 37 mm \| Material: Plastic \| Optics: transparent
704.925.2		Item: Protection cover round, raised design \| Colour: - \| Product attribute: for selector switch \| Dimension: Ø 22.5 mm \| Material: Plastic \| Optics: transparent
704.960.4		Item: Blind plug \| Colour: black \| Product attribute: - \| Dimension: Ø 28 mm \| Material: Plastic \| Optics: -
704.964.7		Item: Blind plug \| Colour: black \| Product attribute: - \| Dimension: 30 x 30 mm \| Material: Plastic \| Optics: -
704.964.8		Item: Blind plug \| Colour: black \| Product attribute: - \| Dimension: Ø 36 mm \| Material: Plastic \| Optics: -
704.964.9		Item: Blind plug \| Colour: black \| Product attribute: - \| Dimension: 35 x 35 mm \| Material: Plastic \| Optics: -

Pushbutton AccessoriesEAO

13 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 04 Protective Covers (22.5 mm)

Brand EAO·Pushbutton Accessories

Available part numbers (13)

704.925.8, 704.925.9, 704.925.7, 704.928.18, 704.928.28, 704.928.38, 704.925.0, 704.925.3, 704.925.2, 704.960.4 + 3 more — see full table ↓

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	704.925.8	Item: Protective cover square, flush design \| Colour: - \| Product attribute: with means for sealing, for pushbutton \| Dimension: 38.5 x 45 mm \| Material: Plastic \| Optics: transparent
	704.925.9	Item: Protective cover square, flush design \| Colour: - \| Product attribute: with means for sealing, for selector \| Dimension: 38.5 x 45 mm \| Material: Plastic \| Optics: transparent
	704.925.7	Item: Protective cover round, flush design \| Colour: colourless \| Product attribute: with means for sealing, for pushbutton \| Dimension: 37 x 44.5 mm \| Material: Plastic \| Optics: transparent
	704.928.18	Item: Protective cover round, flush design \| Colour: natural anodized \| Product attribute: not with means for sealing, with spring \| Dimension: 38 x 50 mm \| Material: Aluminium \| Optics: -
	704.928.28	Item: Protective cover round, flush design \| Colour: natural anodized \| Product attribute: with means for sealing, for pushbutton \| Dimension: 38 x 50 mm \| Material: Aluminium \| Optics: -
	704.928.38	Item: Protective cover round, flush design \| Colour: natural anodized \| Product attribute: with means for sealing, for pushbutton \| Dimension: 38 x 50 mm \| Material: Aluminium \| Optics: -
	704.925.0	Item: Protection cover round, raised design \| Colour: - \| Product attribute: for pushbutton with mounting cut-out Ø \| Dimension: 30 x 37 mm \| Material: Plastic \| Optics: transparent
	704.925.3	Item: Protection cover round, raised design \| Colour: - \| Product attribute: with spring fitted, for pushbutton with \| Dimension: 30 x 37 mm \| Material: Plastic \| Optics: transparent
	704.925.2	Item: Protection cover round, raised design \| Colour: - \| Product attribute: for selector switch \| Dimension: Ø 22.5 mm \| Material: Plastic \| Optics: transparent
	704.960.4	Item: Blind plug \| Colour: black \| Product attribute: - \| Dimension: Ø 28 mm \| Material: Plastic \| Optics: -
	704.964.7	Item: Blind plug \| Colour: black \| Product attribute: - \| Dimension: 30 x 30 mm \| Material: Plastic \| Optics: -
	704.964.8	Item: Blind plug \| Colour: black \| Product attribute: - \| Dimension: Ø 36 mm \| Material: Plastic \| Optics: -
	704.964.9	Item: Blind plug \| Colour: black \| Product attribute: - \| Dimension: 35 x 35 mm \| Material: Plastic \| Optics: -
