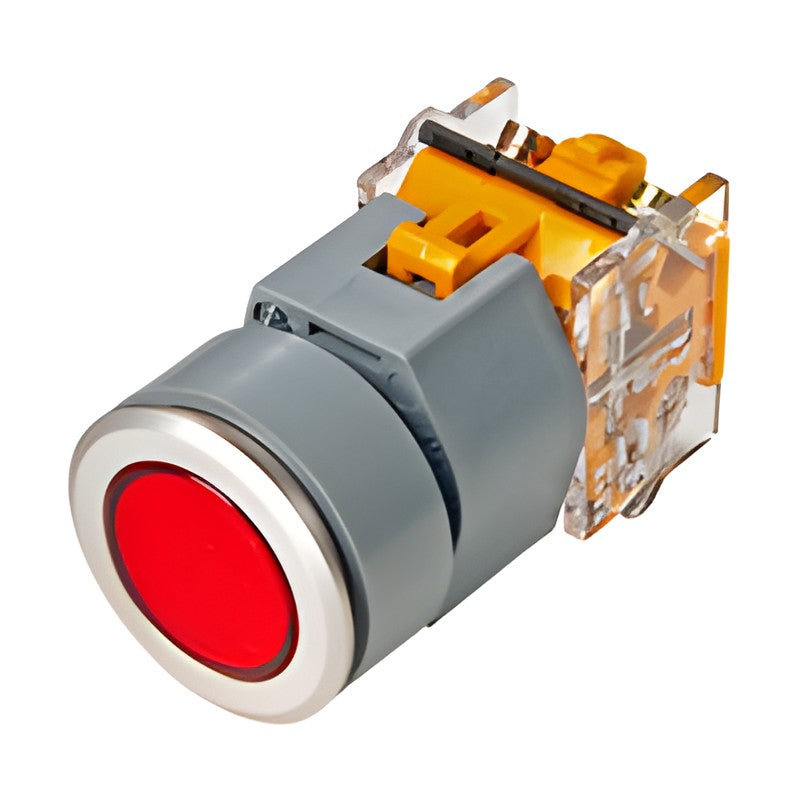

EAO Series 04 Pushbuttons (22.5 mm, Flush Design)

EAO Series 04 Pushbuttons (22.5 mm, Flush Design)

Pushbuttons for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the catalogue ordering tables.

Key features

  • Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
  • Actuator options: Pushbutton, Pushbutton square, Pushbutton round, Mushroom-head pushbutton
  • Front dimension options: 35 x 35 mm, Ø 35 mm, Ø 40 mm, Ø 60 mm
  • Housing options: Plastic black, Plastic grey
  • Switching action options: B (momentary), C (maintained)
  • Each part number covers the components shown in the catalogue; further parts (e.g. switching elements, LEDs) are selected separately

Specifications

Brand EAO
Product family Pushbuttons
Series EAO Series 04 (22.5 mm modular)
Mounting cut-out Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Design Flush
Protection IP 65
Catalogue EAO Series 04 catalogue (Edition 02/2014)
Part numbers 53 printed codes
Source EAO Series 04 catalogue (Edition 02/2014), p. 13-22
704.209.000 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Plastic black
704.209.200 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic black
704.209.400 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic black
704.209.500 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic black
704.209.600 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic black
704.209.700 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic black
704.210.008 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Plastic silver
704.210.208 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic silver
704.210.408 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic silver
704.210.508 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic silver
704.210.608 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic silver
704.210.708 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic silver
704.239.000 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic black | Bezel / ring: Plastic black
704.239.200 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic black
704.239.400 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic black
704.239.500 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic black
704.239.600 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Plastic black
704.239.700 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Plastic black
704.240.008 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic black | Bezel / ring: Plastic silver
704.240.208 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic silver
704.240.408 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic silver
704.240.508 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic silver
704.240.608 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Plastic silver
704.240.708 Actuator: Pushbutton | Front dimension: 35 x 35 mm | Housing: Plastic black | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Plastic silver
704.011.018 Actuator: Pushbutton | Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Aluminium black anodized | Bezel / ring: Aluminium natural anodized
704.011.218 Actuator: Pushbutton | Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Aluminium red anodized | Bezel / ring: Aluminium natural anodized
704.011.418 Actuator: Pushbutton | Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Aluminium gold anodized | Bezel / ring: Aluminium natural anodized
704.011.518 Actuator: Pushbutton | Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Aluminium olive-green anodized | Bezel / ring: Aluminium natural anodized
704.011.618 Actuator: Pushbutton | Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Aluminium blue anodized | Bezel / ring: Aluminium natural anodized
704.011.818 Actuator: Pushbutton | Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Aluminium natural anodized | Bezel / ring: Aluminium natural anodized
704.012.018 Actuator: Pushbutton | Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Aluminium natural anodized
704.012.218 Actuator: Pushbutton | Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Aluminium natural anodized
704.012.418 Actuator: Pushbutton | Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized
704.012.518 Actuator: Pushbutton | Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Aluminium natural anodized
704.012.618 Actuator: Pushbutton | Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Aluminium natural anodized
704.012.718 Actuator: Pushbutton | Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Aluminium natural anodized
704.042.018 Actuator: Pushbutton | Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic black | Bezel / ring: Aluminium natural anodized
704.042.218 Actuator: Pushbutton | Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Aluminium natural anodized
704.042.418 Actuator: Pushbutton | Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized
704.042.518 Actuator: Pushbutton | Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Aluminium natural anodized
704.042.618 Actuator: Pushbutton | Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Aluminium natural anodized
704.042.718 Actuator: Pushbutton | Front dimension: Ø 35 mm | Housing: Plastic grey | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Aluminium natural anodized
704.741.0 Actuator: Pushbutton square | Front dimension: 35 x 35 mm | Housing: - | Switching action: B (momentary) | Lens: - | Bezel / ring: Plastic black
704.741.8 Actuator: Pushbutton square | Front dimension: 35 x 35 mm | Housing: - | Switching action: B (momentary) | Lens: - | Bezel / ring: Plastic silver
704.742.0 Actuator: Pushbutton square | Front dimension: 35 x 35 mm | Housing: - | Switching action: C (maintained) | Lens: - | Bezel / ring: Plastic black
704.742.8 Actuator: Pushbutton square | Front dimension: 35 x 35 mm | Housing: - | Switching action: C (maintained) | Lens: - | Bezel / ring: Plastic silver
704.631.1 Actuator: Pushbutton round | Front dimension: - | Housing: - | Switching action: B (momentary) | Lens: - | Bezel / ring: -
704.632.1 Actuator: Pushbutton round | Front dimension: - | Housing: - | Switching action: C (maintained) | Lens: - | Bezel / ring: -
704.071.218 Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Aluminium natural anodized
704.071.418 Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized
704.071.210 Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Aluminium black anodized
704.071.410 Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Aluminium black anodized
704.079.2F Actuator: Mushroom-head pushbutton | Front dimension: Ø 60 mm | Housing: - | Switching action: B (momentary) | Lens: Aluminium red anodized | Bezel / ring: Aluminium natural anodized
PushbuttonsEAO
53 product codes available in this family
