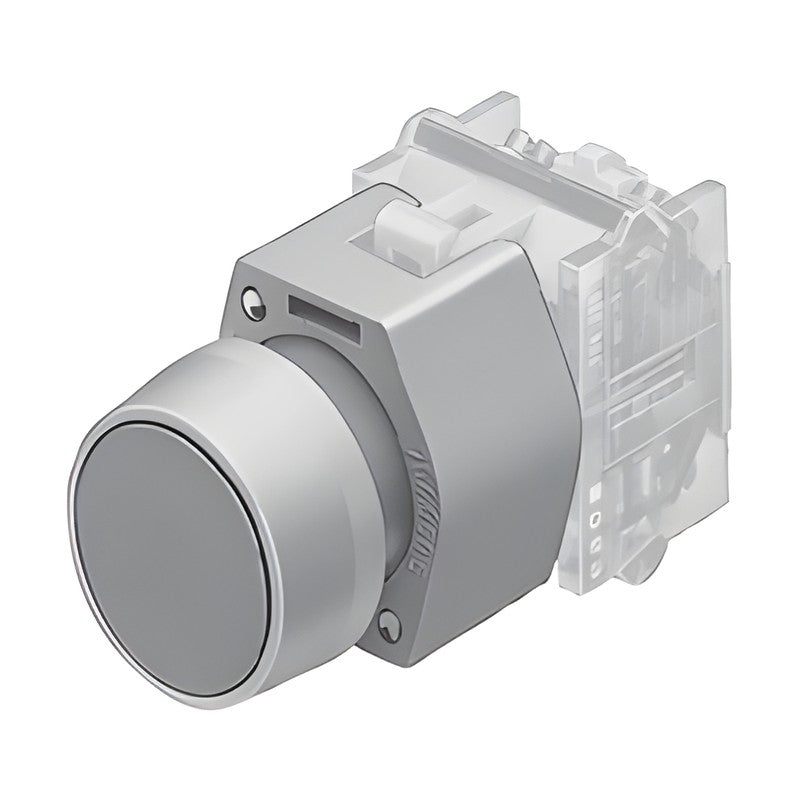

EAO Series 04 Pushbuttons (22.5 mm, Raised Design)

EAO Series 04 Pushbuttons (22.5 mm, Raised Design)

Pushbuttons for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the catalogue ordering tables.

Key features

  • Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
  • Actuator options: Pushbutton, Pushbutton square, Mushroom-head pushbutton
  • Front dimension options: 30 x 30 mm, Ø 29 mm, Ø 40 mm, Ø 60 mm
  • Housing options: Plastic black, Plastic grey
  • Switching action options: B (momentary), C (maintained)
  • Each part number covers the components shown in the catalogue; further parts (e.g. switching elements, LEDs) are selected separately

Specifications

Brand EAO
Product family Pushbuttons
Series EAO Series 04 (22.5 mm modular)
Mounting cut-out Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Design Raised
Catalogue EAO Series 04 catalogue (Edition 02/2014)
Part numbers 104 printed codes
Source EAO Series 04 catalogue (Edition 02/2014), p. 74-87
704.210.0 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Plastic grey
704.210.2 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic grey
704.210.4 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic grey
704.210.5 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic grey
704.210.6 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic grey
704.210.7 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic grey
704.209.0 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Plastic black
704.209.2 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic black
704.209.4 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic black
704.209.5 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic black
704.209.6 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic black
704.209.7 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic black
704.240.0 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic black | Bezel / ring: Plastic grey
704.240.2 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic grey
704.240.4 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic grey
704.240.5 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic grey
704.240.6 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Plastic grey
704.240.7 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Plastic grey
704.239.0 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic black | Bezel / ring: Plastic black
704.239.2 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic black
704.239.4 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic black
704.239.5 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic black
704.239.6 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Plastic black
704.239.7 Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Plastic black
704.010.0 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Plastic grey
704.010.2 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic grey
704.010.4 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic grey
704.010.5 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic grey
704.010.6 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic grey
704.010.7 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic grey
704.009.0 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Plastic black
704.009.2 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic black
704.009.4 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic black
704.009.5 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic black
704.009.6 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic black
704.009.7 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic black
704.040.0 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic black | Bezel / ring: Plastic grey
704.040.2 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic grey
704.040.4 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic grey
704.040.5 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic grey
704.040.6 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Plastic grey
704.040.7 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Plastic grey
704.039.0 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic black | Bezel / ring: Plastic black
704.039.2 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic black
704.039.4 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic black
704.039.5 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic black
704.039.6 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Plastic black
704.039.7 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Plastic black
704.011.0 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Aluminium black anodized | Bezel / ring: Aluminium natural anodized
704.011.2 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Aluminium red anodized | Bezel / ring: Aluminium natural anodized
704.011.4 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Aluminium gold anodized | Bezel / ring: Aluminium natural anodized
704.011.5 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Aluminium olive-green anodized | Bezel / ring: Aluminium natural anodized
704.011.6 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Aluminium blue anodized | Bezel / ring: Aluminium natural anodized
704.011.8 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Aluminium natural anodized | Bezel / ring: Aluminium natural anodized
704.012.0 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Aluminium natural anodized
704.012.2 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Aluminium natural anodized
704.012.4 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized
704.012.5 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Aluminium natural anodized
704.012.6 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Aluminium natural anodized
704.012.7 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Aluminium natural anodized
704.041.0 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Aluminium black anodized | Bezel / ring: Aluminium natural anodized
704.041.2 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Aluminium red anodized | Bezel / ring: Aluminium natural anodized
704.041.4 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Aluminium gold anodized | Bezel / ring: Aluminium natural anodized
704.041.5 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Aluminium olive-green anodized | Bezel / ring: Aluminium natural anodized
704.041.6 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Aluminium blue anodized | Bezel / ring: Aluminium natural anodized
704.041.8 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Aluminium natural anodized | Bezel / ring: Aluminium natural anodized
704.042.0 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Kunststoff schwarz | Bezel / ring: Aluminium natural anodized
704.042.2 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Aluminium natural anodized
704.042.4 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized
704.042.5 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Aluminium natural anodized
704.042.6 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Aluminium natural anodized
704.042.7 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Aluminium natural anodized
704.013.0 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Alu natural anodized with protective cap
704.013.2 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Alu natural anodized with protective cap
704.013.4 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Alu natural anodized with protective cap
704.013.5 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Alu natural anodized with protective cap
704.013.6 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Alu natural anodized with protective cap
704.013.7 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Alu natural anodized with protective cap
704.043.0 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic black | Bezel / ring: Alu natural anodized with protective cap
704.043.2 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Alu natural anodized with protective cap
704.043.4 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Alu natural anodized with protective cap
704.043.5 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Alu natural anodized with protective cap
704.043.6 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Alu natural anodized with protective cap
704.043.7 Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Alu natural anodized with protective cap
704.731.0 Actuator: Pushbutton square | Front dimension: - | Housing: Plastic black | Switching action: B (momentary) | Lens: - | Bezel / ring: -
704.731.1 Actuator: Pushbutton square | Front dimension: - | Housing: Plastic grey | Switching action: B (momentary) | Lens: - | Bezel / ring: -
704.732.0 Actuator: Pushbutton square | Front dimension: - | Housing: Plastic black | Switching action: C (maintained) | Lens: - | Bezel / ring: -
704.732.1 Actuator: Pushbutton square | Front dimension: - | Housing: Plastic grey | Switching action: C (maintained) | Lens: - | Bezel / ring: -
704.070.0 Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Plastic grey
704.070.2 Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic grey
704.070.4 Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic grey
704.070.5 Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic grey
704.071.0 Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Aluminium natural anodized
704.071.2 Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Aluminium natural anodized
704.071.4 Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized
704.071.5 Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Aluminium natural anodized
704.072.0 Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic black | Bezel / ring: Plastic grey
704.072.2 Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic grey
704.073.0 Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic black | Bezel / ring: Aluminium natural anodized
704.073.2 Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Aluminium natural anodized
704.073.4 Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized
704.073.5 Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Aluminium natural anodized
704.079.2 Actuator: Mushroom-head pushbutton | Front dimension: Ø 60 mm | Housing: - | Switching action: B (momentary) | Lens: Aluminium red anodized | Bezel / ring: Aluminium natural anodized
704.075.2I Actuator: Mushroom-head pushbutton | Front dimension: Ø 60 mm | Housing: - | Switching action: C (maintained) | Lens: Aluminium red anodized | Bezel / ring: Aluminium natural anodized
PushbuttonsEAO
104 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 04 Pushbuttons (22.5 mm, Raised Design)

Brand EAO·Pushbuttons

Available part numbers (104)

704.210.0, 704.210.2, 704.210.4, 704.210.5, 704.210.6, 704.210.7, 704.209.0, 704.209.2, 704.209.4, 704.209.5 + 94 more — see full table ↓

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
704.210.0Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Plastic grey
704.210.2Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic grey
704.210.4Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic grey
704.210.5Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic grey
704.210.6Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic grey
704.210.7Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic grey
704.209.0Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Plastic black
704.209.2Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic black
704.209.4Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic black
704.209.5Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic black
704.209.6Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic black
704.209.7Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic black
704.240.0Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic black | Bezel / ring: Plastic grey
704.240.2Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic grey
704.240.4Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic grey
704.240.5Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic grey
704.240.6Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Plastic grey
704.240.7Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Plastic grey
704.239.0Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic black | Bezel / ring: Plastic black
704.239.2Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic black
704.239.4Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic black
704.239.5Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic black
704.239.6Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Plastic black
704.239.7Actuator: Pushbutton | Front dimension: 30 x 30 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Plastic black
704.010.0Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Plastic grey
704.010.2Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic grey
704.010.4Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic grey
704.010.5Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic grey
704.010.6Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic grey
704.010.7Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic grey
704.009.0Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Plastic black
704.009.2Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic black
704.009.4Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic black
704.009.5Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic black
704.009.6Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Plastic black
704.009.7Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Plastic black
704.040.0Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic black | Bezel / ring: Plastic grey
704.040.2Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic grey
704.040.4Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic grey
704.040.5Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic grey
704.040.6Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Plastic grey
704.040.7Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Plastic grey
704.039.0Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic black | Bezel / ring: Plastic black
704.039.2Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic black
704.039.4Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Plastic black
704.039.5Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Plastic black
704.039.6Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Plastic black
704.039.7Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Plastic black
704.011.0Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Aluminium black anodized | Bezel / ring: Aluminium natural anodized
704.011.2Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Aluminium red anodized | Bezel / ring: Aluminium natural anodized
704.011.4Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Aluminium gold anodized | Bezel / ring: Aluminium natural anodized
704.011.5Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Aluminium olive-green anodized | Bezel / ring: Aluminium natural anodized
704.011.6Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Aluminium blue anodized | Bezel / ring: Aluminium natural anodized
704.011.8Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Aluminium natural anodized | Bezel / ring: Aluminium natural anodized
704.012.0Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Aluminium natural anodized
704.012.2Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Aluminium natural anodized
704.012.4Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized
704.012.5Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Aluminium natural anodized
704.012.6Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Aluminium natural anodized
704.012.7Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Aluminium natural anodized
704.041.0Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Aluminium black anodized | Bezel / ring: Aluminium natural anodized
704.041.2Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Aluminium red anodized | Bezel / ring: Aluminium natural anodized
704.041.4Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Aluminium gold anodized | Bezel / ring: Aluminium natural anodized
704.041.5Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Aluminium olive-green anodized | Bezel / ring: Aluminium natural anodized
704.041.6Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Aluminium blue anodized | Bezel / ring: Aluminium natural anodized
704.041.8Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Aluminium natural anodized | Bezel / ring: Aluminium natural anodized
704.042.0Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Kunststoff schwarz | Bezel / ring: Aluminium natural anodized
704.042.2Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Aluminium natural anodized
704.042.4Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized
704.042.5Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Aluminium natural anodized
704.042.6Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Aluminium natural anodized
704.042.7Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Aluminium natural anodized
704.013.0Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Alu natural anodized with protective cap
704.013.2Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Alu natural anodized with protective cap
704.013.4Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Alu natural anodized with protective cap
704.013.5Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Alu natural anodized with protective cap
704.013.6Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic blue | Bezel / ring: Alu natural anodized with protective cap
704.013.7Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic colourless | Bezel / ring: Alu natural anodized with protective cap
704.043.0Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic black | Bezel / ring: Alu natural anodized with protective cap
704.043.2Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Alu natural anodized with protective cap
704.043.4Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Alu natural anodized with protective cap
704.043.5Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Alu natural anodized with protective cap
704.043.6Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic blue | Bezel / ring: Alu natural anodized with protective cap
704.043.7Actuator: Pushbutton | Front dimension: Ø 29 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic colourless | Bezel / ring: Alu natural anodized with protective cap
704.731.0Actuator: Pushbutton square | Front dimension: - | Housing: Plastic black | Switching action: B (momentary) | Lens: - | Bezel / ring: -
704.731.1Actuator: Pushbutton square | Front dimension: - | Housing: Plastic grey | Switching action: B (momentary) | Lens: - | Bezel / ring: -
704.732.0Actuator: Pushbutton square | Front dimension: - | Housing: Plastic black | Switching action: C (maintained) | Lens: - | Bezel / ring: -
704.732.1Actuator: Pushbutton square | Front dimension: - | Housing: Plastic grey | Switching action: C (maintained) | Lens: - | Bezel / ring: -
704.070.0Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Plastic grey
704.070.2Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Plastic grey
704.070.4Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Plastic grey
704.070.5Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Plastic grey
704.071.0Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic black | Bezel / ring: Aluminium natural anodized
704.071.2Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic red | Bezel / ring: Aluminium natural anodized
704.071.4Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized
704.071.5Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: B (momentary) | Lens: Plastic green | Bezel / ring: Aluminium natural anodized
704.072.0Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic black | Bezel / ring: Plastic grey
704.072.2Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Plastic grey
704.073.0Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic black | Bezel / ring: Aluminium natural anodized
704.073.2Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic red | Bezel / ring: Aluminium natural anodized
704.073.4Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic yellow | Bezel / ring: Aluminium natural anodized
704.073.5Actuator: Mushroom-head pushbutton | Front dimension: Ø 40 mm | Housing: - | Switching action: C (maintained) | Lens: Plastic green | Bezel / ring: Aluminium natural anodized
704.079.2Actuator: Mushroom-head pushbutton | Front dimension: Ø 60 mm | Housing: - | Switching action: B (momentary) | Lens: Aluminium red anodized | Bezel / ring: Aluminium natural anodized
704.075.2IActuator: Mushroom-head pushbutton | Front dimension: Ø 60 mm | Housing: - | Switching action: C (maintained) | Lens: Aluminium red anodized | Bezel / ring: Aluminium natural anodized

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
