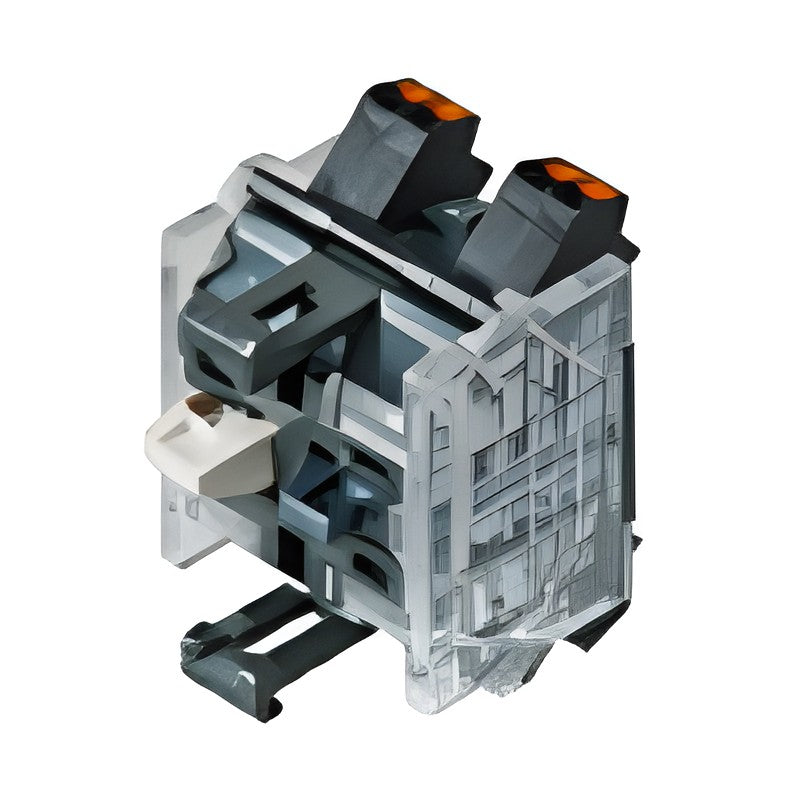

EAO Series 04 Rotary Switching Elements (22.5 mm)

EAO Series 04 Rotary Switching Elements (22.5 mm)

Rotary Switching Elements for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

  • Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
  • Item options: Rotary switching element 30°, Rotary switching element 45°, Rotary switching element 60°
  • Switching positions options: A = Rest, I = End, A = Rest, K = End, A = Rest, L = End, A = Rest, M = End, A = Rest and more
  • Rotary positions options: 9, 20, 11, 12, 7 and more
  • Multi-step switch options: 1 pole, 2 pole, 1 pole, electrically isolated, 3 pole
  • 22 part numbers exactly as printed in the ordering tables

Specifications

Brand EAO
Product family Rotary Switching Elements
Series EAO Series 04 (22.5 mm modular)
Mounting cut-out Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Terminal Screw
Catalogue EAO Series 04 catalogue (Edition 02/2014)
Part numbers 22 printed codes
Source EAO Series 04 catalogue (Edition 02/2014), p. 142-144
704.8A236 Item: Rotary switching element 30° | Switching positions: A = Rest, I = End | Rotary positions: 9 | Multi-step switch: 1 pole | Stages: 5 | Details: -
704.8A237 Item: Rotary switching element 30° | Switching positions: A = Rest, K = End | Rotary positions: 20 | Multi-step switch: 1 pole | Stages: 5 | Details: -
704.8A238 Item: Rotary switching element 30° | Switching positions: A = Rest, L = End | Rotary positions: 11 | Multi-step switch: 1 pole | Stages: 6 | Details: -
704.8A239 Item: Rotary switching element 30° | Switching positions: A = Rest, M = End | Rotary positions: 12 | Multi-step switch: 1 pole | Stages: 6 | Details: -
704.8A639 Item: Rotary switching element 30° | Switching positions: A = Rest | Rotary positions: 12 | Multi-step switch: 1 pole | Stages: 6 | Details: without stop
704.8A234 Item: Rotary switching element 45° | Switching positions: A = Rest, G = End | Rotary positions: 7 | Multi-step switch: 1 pole | Stages: 4 | Details: -
704.8A254 Item: Rotary switching element 45° | Switching positions: A = Rest, G = End | Rotary positions: 7 | Multi-step switch: 2 pole | Stages: 7 | Details: -
704.8A235 Item: Rotary switching element 45° | Switching positions: A = Rest, H = End | Rotary positions: 8 | Multi-step switch: 1 pole | Stages: 4 | Details: -
704.8A255 Item: Rotary switching element 45° | Switching positions: A = Rest, H = End | Rotary positions: 8 | Multi-step switch: 2 pole | Stages: 8 | Details: -
704.8A230 Item: Rotary switching element 60° | Switching positions: A = Rest, C = End | Rotary positions: 3 | Multi-step switch: 1 pole | Stages: 2 | Details: -
704.8A730 Item: Rotary switching element 60° | Switching positions: A = Rest, C = End | Rotary positions: 3 | Multi-step switch: 1 pole, electrically isolated | Stages: 2 | Details: -
704.8A250 Item: Rotary switching element 60° | Switching positions: A = Rest, C = End | Rotary positions: 3 | Multi-step switch: 2 pole | Stages: 3 | Details: -
704.8A270 Item: Rotary switching element 60° | Switching positions: A = Rest, C = End | Rotary positions: 3 | Multi-step switch: 3 pole | Stages: 5 | Details: -
704.8A231 Item: Rotary switching element 60° | Switching positions: A = Rest, D = End | Rotary positions: 4 | Multi-step switch: 1 pole | Stages: 2 | Details: -
704.8A731 Item: Rotary switching element 60° | Switching positions: A = Rest, D = End | Rotary positions: 4 | Multi-step switch: 1 pole, electrically isolated | Stages: 2 | Details: -
704.8A251 Item: Rotary switching element 60° | Switching positions: A = Rest, D = End | Rotary positions: 4 | Multi-step switch: 2 pole | Stages: 4 | Details: -
704.8A271 Item: Rotary switching element 60° | Switching positions: A = Rest, D = End | Rotary positions: 4 | Multi-step switch: 3 pole | Stages: 6 | Details: -
704.8A232 Item: Rotary switching element 60° | Switching positions: A = Rest, E = End | Rotary positions: 5 | Multi-step switch: 1 pole | Stages: 3 | Details: -
704.8A252 Item: Rotary switching element 60° | Switching positions: A = Rest, E = End | Rotary positions: 5 | Multi-step switch: 2 pole | Stages: 5 | Details: -
704.8A272 Item: Rotary switching element 60° | Switching positions: A = Rest, E = End | Rotary positions: 5 | Multi-step switch: 3 pole | Stages: 8 | Details: -
704.8A233 Item: Rotary switching element 60° | Switching positions: A = Rest, F = End | Rotary positions: 6 | Multi-step switch: 1 pole | Stages: 3 | Details: -
704.8A253 Item: Rotary switching element 60° | Switching positions: A = Rest, F = End | Rotary positions: 6 | Multi-step switch: 2 pole | Stages: 6 | Details: -
Pushbutton AccessoriesEAO
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 04 Rotary Switching Elements (22.5 mm)

Brand EAO·Pushbutton Accessories

Available part numbers (22)

704.8A236, 704.8A237, 704.8A238, 704.8A239, 704.8A639, 704.8A234, 704.8A254, 704.8A235, 704.8A255, 704.8A230 + 12 more — see full table ↓
