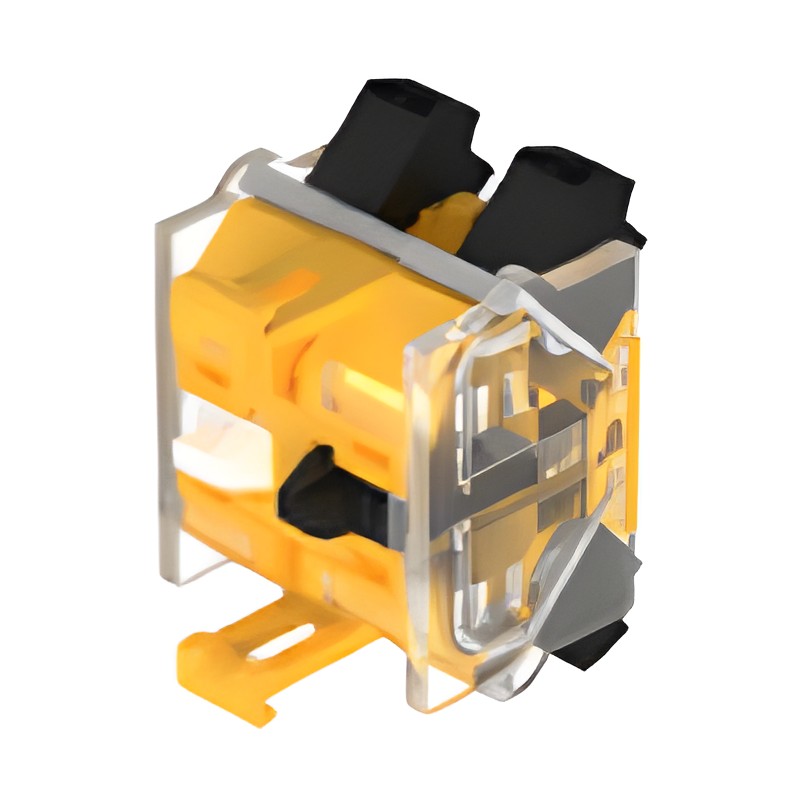

EAO Series 04 Switching Elements (22.5 mm)

EAO Series 04 Switching Elements (22.5 mm)

Switching Elements for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

  • Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
  • Item options: Switching element, Switching element for ring cable shoe, Switching element failsafe, Terminal cover, Terminal marking and more
  • Contacts options: 1 NO (snap-action, gold), 1 NC (snap-action, gold), 2 NO (snap-action, gold), 2 NC (snap-action, gold), 1 NC + 1 NO (snap-action, gold) and
  • Rating options: 500 VAC, 6 A, 500 VAC, 10 A
  • Terminal options: Push-in Terminal, Plug 6.3 x 0.8 mm, Double plug 6.3 x 0.8 mm, Screw, Plug-in connection
  • 113 part numbers exactly as printed in the ordering tables

Specifications

Brand EAO
Product family Switching Elements
Series EAO Series 04 (22.5 mm modular)
Mounting cut-out Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Catalogue EAO Series 04 catalogue (Edition 02/2014)
Part numbers 113 printed codes
Source EAO Series 04 catalogue (Edition 02/2014), p. 135-146
704.907.1 Item: Switching element | Contacts: 1 NO (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.907.2 Item: Switching element | Contacts: 1 NC (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.907.3 Item: Switching element | Contacts: 2 NO (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.907.4 Item: Switching element | Contacts: 2 NC (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.907.5 Item: Switching element | Contacts: 1 NC + 1 NO (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.908.1 Item: Switching element | Contacts: 1 NO (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.908.2 Item: Switching element | Contacts: 1 NC (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.908.3 Item: Switching element | Contacts: 2 NO (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.908.4 Item: Switching element | Contacts: 2 NC (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.908.5 Item: Switching element | Contacts: 1 NC + 1 NO (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.917.1 Item: Switching element | Contacts: 1 NO (slow-make, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.917.2 Item: Switching element | Contacts: 1 NC (slow-make, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.917.3 Item: Switching element | Contacts: 2 NO (slow-make, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.917.4 Item: Switching element | Contacts: 2 NC (slow-make, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.917.5 Item: Switching element | Contacts: 1 NC + 1 NO (slow-make, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.918.1 Item: Switching element | Contacts: 1 NO (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.918.2 Item: Switching element | Contacts: 1 NC (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.918.3 Item: Switching element | Contacts: 2 NO (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.918.4 Item: Switching element | Contacts: 2 NC (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.918.5 Item: Switching element | Contacts: 1 NC + 1 NO (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.905.1 Item: Switching element | Contacts: 1 NO (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.905.2 Item: Switching element | Contacts: 1 NC (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.905.3 Item: Switching element | Contacts: 2 NO (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.905.4 Item: Switching element | Contacts: 2 NC (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.905.5 Item: Switching element | Contacts: 1 NC + 1 NO (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.915.1 Item: Switching element | Contacts: 1 NO (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.915.2 Item: Switching element | Contacts: 1 NC (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.915.3 Item: Switching element | Contacts: 2 NO (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.915.4 Item: Switching element | Contacts: 2 NC (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.915.5 Item: Switching element | Contacts: 1 NC + 1 NO (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.901.1/D Item: Switching element | Contacts: 1 NO (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.901.2/D Item: Switching element | Contacts: 1 NC (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.901.3/D Item: Switching element | Contacts: 2 NO (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.901.4/D Item: Switching element | Contacts: 2 NC (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.901.5/D Item: Switching element | Contacts: 1 NC + 1 NO (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.905.1/D Item: Switching element | Contacts: 1 NO (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.905.2/D Item: Switching element | Contacts: 1 NC (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.905.3/D Item: Switching element | Contacts: 2 NO (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.905.4/D Item: Switching element | Contacts: 2 NC (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.905.5/D Item: Switching element | Contacts: 1 NC + 1 NO (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.915.1/D Item: Switching element | Contacts: 1 NO (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.915.2/D Item: Switching element | Contacts: 1 NC (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.915.3/D Item: Switching element | Contacts: 2 NO (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.915.4/D Item: Switching element | Contacts: 2 NC (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.915.5/D Item: Switching element | Contacts: 1 NC + 1 NO (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.901.1 Item: Switching element | Contacts: 1 NO (snap-action, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.901.2 Item: Switching element | Contacts: 1 NC (snap-action, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.901.3 Item: Switching element | Contacts: 2 NO (snap-action, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.901.4 Item: Switching element | Contacts: 2 NC (snap-action, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.901.5 Item: Switching element | Contacts: 1 NC + 1 NO (snap-action, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.1 Item: Switching element | Contacts: 1 NO (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.2 Item: Switching element | Contacts: 1 NC (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.3 Item: Switching element | Contacts: 2 NO (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.4 Item: Switching element | Contacts: 2 NC (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.5 Item: Switching element | Contacts: 1 NC + 1 NO (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.902.1 Item: Switching element | Contacts: 1 NO (snap-action, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.902.2 Item: Switching element | Contacts: 1 NC (snap-action, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.902.3 Item: Switching element | Contacts: 2 NO (snap-action, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.902.4 Item: Switching element | Contacts: 2 NC (snap-action, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.902.5 Item: Switching element | Contacts: 1 NC + 1 NO (snap-action, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.1 Item: Switching element | Contacts: 1 NO (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.2 Item: Switching element | Contacts: 1 NC (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.3 Item: Switching element | Contacts: 2 NO (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.4 Item: Switching element | Contacts: 2 NC (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.5 Item: Switching element | Contacts: 1 NC + 1 NO (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.1 Item: Switching element | Contacts: 1 NO (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.2 Item: Switching element | Contacts: 1 NC (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.3 Item: Switching element | Contacts: 2 NO (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.4 Item: Switching element | Contacts: 2 NC (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.5 Item: Switching element | Contacts: 1 NC + 1 NO (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.912.1 Item: Switching element | Contacts: 1 NO (slow-make, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.912.2 Item: Switching element | Contacts: 1 NC (slow-make, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.912.3 Item: Switching element | Contacts: 2 NO (slow-make, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.912.4 Item: Switching element | Contacts: 2 NC (slow-make, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.912.5 Item: Switching element | Contacts: 1 NC + 1 NO (slow-make, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.1B Item: Switching element for ring cable shoe | Contacts: 1 NO (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.2B Item: Switching element for ring cable shoe | Contacts: 1 NC (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.3B Item: Switching element for ring cable shoe | Contacts: 2 NO (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.4B Item: Switching element for ring cable shoe | Contacts: 2 NC (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.5B Item: Switching element for ring cable shoe | Contacts: 1 NC + 1 NO (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.1B Item: Switching element for ring cable shoe | Contacts: 1 NO (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.2B Item: Switching element for ring cable shoe | Contacts: 1 NC (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.3B Item: Switching element for ring cable shoe | Contacts: 2 NO (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.4B Item: Switching element for ring cable shoe | Contacts: 2 NC (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.5B Item: Switching element for ring cable shoe | Contacts: 1 NC + 1 NO (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.1B Item: Switching element for ring cable shoe | Contacts: 1 NO (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.2B Item: Switching element for ring cable shoe | Contacts: 1 NC (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.3B Item: Switching element for ring cable shoe | Contacts: 2 NO (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.4B Item: Switching element for ring cable shoe | Contacts: 2 NC (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.5B Item: Switching element for ring cable shoe | Contacts: 1 NC + 1 NO (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.4FS Item: Switching element failsafe | Contacts: 1 NC + 1 FS (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.4FS Item: Switching element failsafe | Contacts: 1 NC + 1 FS (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.4BFS Item: Switching element failsafe | Contacts: 1 NC + 1 FS (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: for ring cable shoe
704.911.4BFS Item: Switching element failsafe | Contacts: 1 NC + 1 FS (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: for ring cable shoe
704.915.4FS Item: Switching element failsafe | Contacts: 1 NC + 1 FS (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Plug-in connection | Details: -
704.911.4DFS Item: Switching element failsafe | Contacts: 1 NC + 1 FS (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.915.4DFS Item: Switching element failsafe | Contacts: 1 NC + 1 FS (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.917.4FS Item: Switching element failsafe | Contacts: 1 NC + 1 FS (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Push-in Terminal | Details: -
704.918.4FS Item: Switching element failsafe | Contacts: 1 NC + 1 FS (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Push-in Terminal | Details: -
704.964.5 Item: Terminal cover | Contacts: - | Rating: - | Terminal: - | Details: -
704.965.1 Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 13/23 33/43, 2 NO for 1st or 2nd sw.
704.965.2 Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 24/14 44/34, 2 NO for 1st or 2nd sw.
704.965.3 Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 53/63 73/83, 2 NO for 3rd sw. element
704.965.4 Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 64/54 84/74, 2 NO for 3rd sw. element
704.965.5 Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 11/21 31/41, 2 NC for 1st or 2nd sw.
704.965.6 Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 22/12 42/32, 2 NC for 1st or 2nd sw.
704.965.7 Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 51/61 71/81, 2 NC for 3rd sw. element
704.965.8 Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 62/52 82/72, 2 NC for 3rd sw. element
704.965.9 Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 13/21 33/41, 1 NC + 1 NO for 1st or 2nd
704.966.0 Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 22/14 42/34, 1 NC + 1 NO for 1st or 2nd
704.966.1 Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 53/61 73/81, 1 NC + 1 NO for 3rd sw.
704.966.2 Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 62/54 82/74, 1 NC + 1 NO for 3rd sw.
704.990.1 Item: Contact bridge | Contacts: - | Rating: - | Terminal: - | Details: -
Pushbutton AccessoriesEAO
113 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 04 Switching Elements (22.5 mm)

Brand EAO·Pushbutton Accessories

Available part numbers (113)

704.907.1, 704.907.2, 704.907.3, 704.907.4, 704.907.5, 704.908.1, 704.908.2, 704.908.3, 704.908.4, 704.908.5 + 103 more — see full table ↓

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
704.907.1Item: Switching element | Contacts: 1 NO (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.907.2Item: Switching element | Contacts: 1 NC (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.907.3Item: Switching element | Contacts: 2 NO (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.907.4Item: Switching element | Contacts: 2 NC (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.907.5Item: Switching element | Contacts: 1 NC + 1 NO (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.908.1Item: Switching element | Contacts: 1 NO (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.908.2Item: Switching element | Contacts: 1 NC (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.908.3Item: Switching element | Contacts: 2 NO (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.908.4Item: Switching element | Contacts: 2 NC (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.908.5Item: Switching element | Contacts: 1 NC + 1 NO (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.917.1Item: Switching element | Contacts: 1 NO (slow-make, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.917.2Item: Switching element | Contacts: 1 NC (slow-make, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.917.3Item: Switching element | Contacts: 2 NO (slow-make, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.917.4Item: Switching element | Contacts: 2 NC (slow-make, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.917.5Item: Switching element | Contacts: 1 NC + 1 NO (slow-make, gold) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.918.1Item: Switching element | Contacts: 1 NO (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.918.2Item: Switching element | Contacts: 1 NC (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.918.3Item: Switching element | Contacts: 2 NO (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.918.4Item: Switching element | Contacts: 2 NC (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.918.5Item: Switching element | Contacts: 1 NC + 1 NO (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Push-in Terminal | Details: -
704.905.1Item: Switching element | Contacts: 1 NO (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.905.2Item: Switching element | Contacts: 1 NC (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.905.3Item: Switching element | Contacts: 2 NO (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.905.4Item: Switching element | Contacts: 2 NC (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.905.5Item: Switching element | Contacts: 1 NC + 1 NO (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.915.1Item: Switching element | Contacts: 1 NO (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.915.2Item: Switching element | Contacts: 1 NC (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.915.3Item: Switching element | Contacts: 2 NO (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.915.4Item: Switching element | Contacts: 2 NC (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.915.5Item: Switching element | Contacts: 1 NC + 1 NO (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Plug 6.3 x 0.8 mm | Details: -
704.901.1/DItem: Switching element | Contacts: 1 NO (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.901.2/DItem: Switching element | Contacts: 1 NC (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.901.3/DItem: Switching element | Contacts: 2 NO (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.901.4/DItem: Switching element | Contacts: 2 NC (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.901.5/DItem: Switching element | Contacts: 1 NC + 1 NO (snap-action, gold) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.905.1/DItem: Switching element | Contacts: 1 NO (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.905.2/DItem: Switching element | Contacts: 1 NC (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.905.3/DItem: Switching element | Contacts: 2 NO (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.905.4/DItem: Switching element | Contacts: 2 NC (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.905.5/DItem: Switching element | Contacts: 1 NC + 1 NO (snap-action, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.915.1/DItem: Switching element | Contacts: 1 NO (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.915.2/DItem: Switching element | Contacts: 1 NC (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.915.3/DItem: Switching element | Contacts: 2 NO (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.915.4/DItem: Switching element | Contacts: 2 NC (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.915.5/DItem: Switching element | Contacts: 1 NC + 1 NO (slow-make, silver) | Rating: 500 VAC, 6 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.901.1Item: Switching element | Contacts: 1 NO (snap-action, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.901.2Item: Switching element | Contacts: 1 NC (snap-action, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.901.3Item: Switching element | Contacts: 2 NO (snap-action, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.901.4Item: Switching element | Contacts: 2 NC (snap-action, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.901.5Item: Switching element | Contacts: 1 NC + 1 NO (snap-action, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.1Item: Switching element | Contacts: 1 NO (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.2Item: Switching element | Contacts: 1 NC (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.3Item: Switching element | Contacts: 2 NO (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.4Item: Switching element | Contacts: 2 NC (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.5Item: Switching element | Contacts: 1 NC + 1 NO (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.902.1Item: Switching element | Contacts: 1 NO (snap-action, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.902.2Item: Switching element | Contacts: 1 NC (snap-action, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.902.3Item: Switching element | Contacts: 2 NO (snap-action, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.902.4Item: Switching element | Contacts: 2 NC (snap-action, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.902.5Item: Switching element | Contacts: 1 NC + 1 NO (snap-action, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.1Item: Switching element | Contacts: 1 NO (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.2Item: Switching element | Contacts: 1 NC (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.3Item: Switching element | Contacts: 2 NO (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.4Item: Switching element | Contacts: 2 NC (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.5Item: Switching element | Contacts: 1 NC + 1 NO (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.1Item: Switching element | Contacts: 1 NO (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.2Item: Switching element | Contacts: 1 NC (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.3Item: Switching element | Contacts: 2 NO (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.4Item: Switching element | Contacts: 2 NC (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.5Item: Switching element | Contacts: 1 NC + 1 NO (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.912.1Item: Switching element | Contacts: 1 NO (slow-make, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.912.2Item: Switching element | Contacts: 1 NC (slow-make, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.912.3Item: Switching element | Contacts: 2 NO (slow-make, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.912.4Item: Switching element | Contacts: 2 NC (slow-make, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.912.5Item: Switching element | Contacts: 1 NC + 1 NO (slow-make, palladium) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.1BItem: Switching element for ring cable shoe | Contacts: 1 NO (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.2BItem: Switching element for ring cable shoe | Contacts: 1 NC (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.3BItem: Switching element for ring cable shoe | Contacts: 2 NO (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.4BItem: Switching element for ring cable shoe | Contacts: 2 NC (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.900.5BItem: Switching element for ring cable shoe | Contacts: 1 NC + 1 NO (snap-action, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.1BItem: Switching element for ring cable shoe | Contacts: 1 NO (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.2BItem: Switching element for ring cable shoe | Contacts: 1 NC (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.3BItem: Switching element for ring cable shoe | Contacts: 2 NO (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.4BItem: Switching element for ring cable shoe | Contacts: 2 NC (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.5BItem: Switching element for ring cable shoe | Contacts: 1 NC + 1 NO (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.1BItem: Switching element for ring cable shoe | Contacts: 1 NO (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.2BItem: Switching element for ring cable shoe | Contacts: 1 NC (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.3BItem: Switching element for ring cable shoe | Contacts: 2 NO (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.4BItem: Switching element for ring cable shoe | Contacts: 2 NC (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.5BItem: Switching element for ring cable shoe | Contacts: 1 NC + 1 NO (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.4FSItem: Switching element failsafe | Contacts: 1 NC + 1 FS (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.911.4FSItem: Switching element failsafe | Contacts: 1 NC + 1 FS (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: -
704.910.4BFSItem: Switching element failsafe | Contacts: 1 NC + 1 FS (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: for ring cable shoe
704.911.4BFSItem: Switching element failsafe | Contacts: 1 NC + 1 FS (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Screw | Details: for ring cable shoe
704.915.4FSItem: Switching element failsafe | Contacts: 1 NC + 1 FS (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Plug-in connection | Details: -
704.911.4DFSItem: Switching element failsafe | Contacts: 1 NC + 1 FS (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.915.4DFSItem: Switching element failsafe | Contacts: 1 NC + 1 FS (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Double plug 6.3 x 0.8 mm | Details: -
704.917.4FSItem: Switching element failsafe | Contacts: 1 NC + 1 FS (slow-make, gold) | Rating: 500 VAC, 10 A | Terminal: Push-in Terminal | Details: -
704.918.4FSItem: Switching element failsafe | Contacts: 1 NC + 1 FS (slow-make, silver) | Rating: 500 VAC, 10 A | Terminal: Push-in Terminal | Details: -
704.964.5Item: Terminal cover | Contacts: - | Rating: - | Terminal: - | Details: -
704.965.1Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 13/23 33/43, 2 NO for 1st or 2nd sw.
704.965.2Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 24/14 44/34, 2 NO for 1st or 2nd sw.
704.965.3Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 53/63 73/83, 2 NO for 3rd sw. element
704.965.4Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 64/54 84/74, 2 NO for 3rd sw. element
704.965.5Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 11/21 31/41, 2 NC for 1st or 2nd sw.
704.965.6Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 22/12 42/32, 2 NC for 1st or 2nd sw.
704.965.7Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 51/61 71/81, 2 NC for 3rd sw. element
704.965.8Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 62/52 82/72, 2 NC for 3rd sw. element
704.965.9Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 13/21 33/41, 1 NC + 1 NO for 1st or 2nd
704.966.0Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 22/14 42/34, 1 NC + 1 NO for 1st or 2nd
704.966.1Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 53/61 73/81, 1 NC + 1 NO for 3rd sw.
704.966.2Item: Terminal marking | Contacts: - | Rating: - | Terminal: - | Details: 62/54 82/74, 1 NC + 1 NO for 3rd sw.
704.990.1Item: Contact bridge | Contacts: - | Rating: - | Terminal: - | Details: -

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
