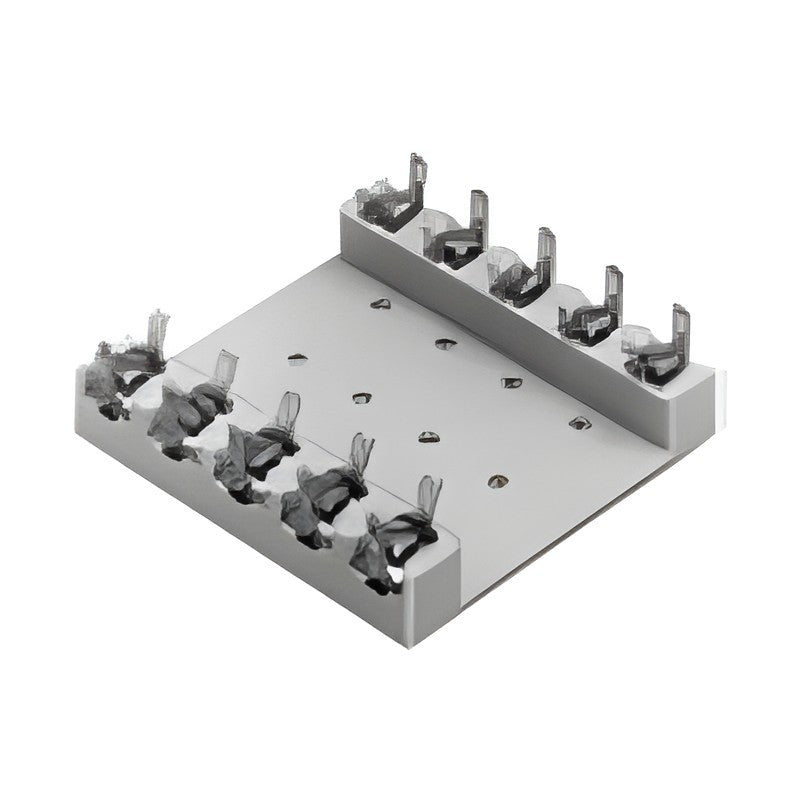

EAO Series 04 Terminal & PCB Accessories (22.5 mm)

EAO Series 04 Terminal & PCB Accessories (22.5 mm)

Terminal & PCB Accessories for the EAO Series 04 (22.5 mm modular) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

  • Modular 22.5 mm EAO Series 04 HMI system for flush and raised front designs
  • Item options: Terminal plate empty, Snap-on base
  • Product attribute options: 5 spaces, 10 spaces, 15 spaces, 20 spaces, DIN mounting bar EN 50035 and more
  • Dimension options: 62.5 x 60 x 15 mm, 125 x 60 x 15 mm, 187.6 x 60 x 15 mm, 250 x 60 x 15 mm
  • 6 part numbers exactly as printed in the ordering tables

Specifications

Brand EAO
Product family Terminal & PCB Accessories
Series EAO Series 04 (22.5 mm modular)
Mounting cut-out Ø 22.5 mm (Ø 30.5 mm / 30 x 30 mm per front size)
Catalogue EAO Series 04 catalogue (Edition 02/2014)
Part numbers 6 printed codes
Source EAO Series 04 catalogue (Edition 02/2014), p. 152-157
02-912.1 Item: Terminal plate empty | Product attribute: 5 spaces | Dimension: 62.5 x 60 x 15 mm
02-912.2 Item: Terminal plate empty | Product attribute: 10 spaces | Dimension: 125 x 60 x 15 mm
02-912.3 Item: Terminal plate empty | Product attribute: 15 spaces | Dimension: 187.6 x 60 x 15 mm
02-912.4 Item: Terminal plate empty | Product attribute: 20 spaces | Dimension: 250 x 60 x 15 mm
704.940.9 Item: Snap-on base | Product attribute: DIN mounting bar EN 50035 | Dimension: -
704.941.1 Item: Snap-on base | Product attribute: DIN mounting bar EN 50022 | Dimension: -
Pushbutton AccessoriesEAO
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 04 Terminal & PCB Accessories (22.5 mm)

Brand EAO·Pushbutton Accessories

Available part numbers (6)

02-912.1, 02-912.2, 02-912.3, 02-912.4, 704.940.9, 704.941.1

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
02-912.1Item: Terminal plate empty | Product attribute: 5 spaces | Dimension: 62.5 x 60 x 15 mm
02-912.2Item: Terminal plate empty | Product attribute: 10 spaces | Dimension: 125 x 60 x 15 mm
02-912.3Item: Terminal plate empty | Product attribute: 15 spaces | Dimension: 187.6 x 60 x 15 mm
02-912.4Item: Terminal plate empty | Product attribute: 20 spaces | Dimension: 250 x 60 x 15 mm
704.940.9Item: Snap-on base | Product attribute: DIN mounting bar EN 50035 | Dimension: -
704.941.1Item: Snap-on base | Product attribute: DIN mounting bar EN 50022 | Dimension: -
