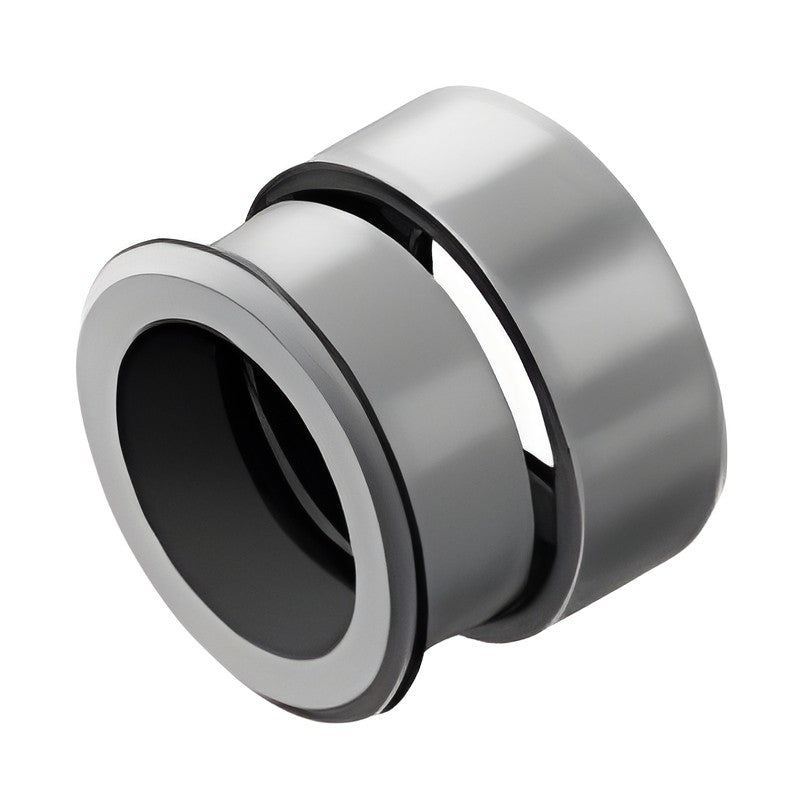

EAO Series 14 Front Bezels & Rings (22.5 mm compact)

EAO Series 14 Front Bezels & Rings (22.5 mm compact)

Front Bezels & Rings for the EAO Series 14 (compact 22.5 mm) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

  • Compact 22.5 mm EAO Series 14 system enabling space-saving installations
  • Item options: Front bezel set, flush design, Front bezel set for mushroom-head, Front bezel set with protective
  • Front dimension options: Ø 35 mm, Ø 50 mm
  • Bezel / ring options: Aluminium black anodized, Aluminium natural anodized, Stainless-steel natural
  • Product attribute options: with transparent silicone membrane, with transp. silicone membrane
  • 8 part numbers exactly as printed in the ordering tables

Specifications

Brand EAO
Product family Front Bezels & Rings
Series EAO Series 14 (compact 22.5 mm)
Mounting cut-out Ø 22.5 mm
Catalogue EAO Series 14 catalogue (Edition 11/2013)
Part numbers 8 printed codes
Source EAO Series 14 catalogue (Edition 11/2013), p. 38-39
14-955.0 Item: Front bezel set, flush design | Front dimension: Ø 35 mm | Bezel / ring: Aluminium black anodized | Product attribute: - | Mounting cut-out: Ø 30.5 mm
14-955.1 Item: Front bezel set, flush design | Front dimension: Ø 35 mm | Bezel / ring: Aluminium natural anodized | Product attribute: - | Mounting cut-out: Ø 30.5 mm
14-955.9 Item: Front bezel set, flush design | Front dimension: Ø 35 mm | Bezel / ring: Stainless-steel natural | Product attribute: - | Mounting cut-out: Ø 30.5 mm
14-958.8 Item: Front bezel set for mushroom-head | Front dimension: Ø 50 mm | Bezel / ring: Aluminium natural anodized | Product attribute: - | Mounting cut-out: Ø 30.5 mm
14-958.0 Item: Front bezel set for mushroom-head | Front dimension: Ø 50 mm | Bezel / ring: Aluminium black anodized | Product attribute: - | Mounting cut-out: Ø 30.5 mm
14-955.3 Item: Front bezel set with protective | Front dimension: Ø 35 mm | Bezel / ring: Aluminium natural anodized | Product attribute: with transparent silicone membrane | Mounting cut-out: -
14-955.4 Item: Front bezel set with protective | Front dimension: Ø 35 mm | Bezel / ring: Aluminium black anodized | Product attribute: with transparent silicone membrane | Mounting cut-out: -
14-955.9E Item: Front bezel set with protective | Front dimension: Ø 35 mm | Bezel / ring: Stainless-steel natural | Product attribute: with transp. silicone membrane | Mounting cut-out: -
Pushbutton AccessoriesEAO
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 14 Front Bezels & Rings (22.5 mm compact)

Brand EAO·Pushbutton Accessories

Available part numbers (8)

14-955.0, 14-955.1, 14-955.9, 14-958.8, 14-958.0, 14-955.3, 14-955.4, 14-955.9E

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
