EAO Series 14 Illuminated Pushbuttons (22.5 mm compact)

EAO Series 14 Illuminated Pushbuttons (22.5 mm compact)

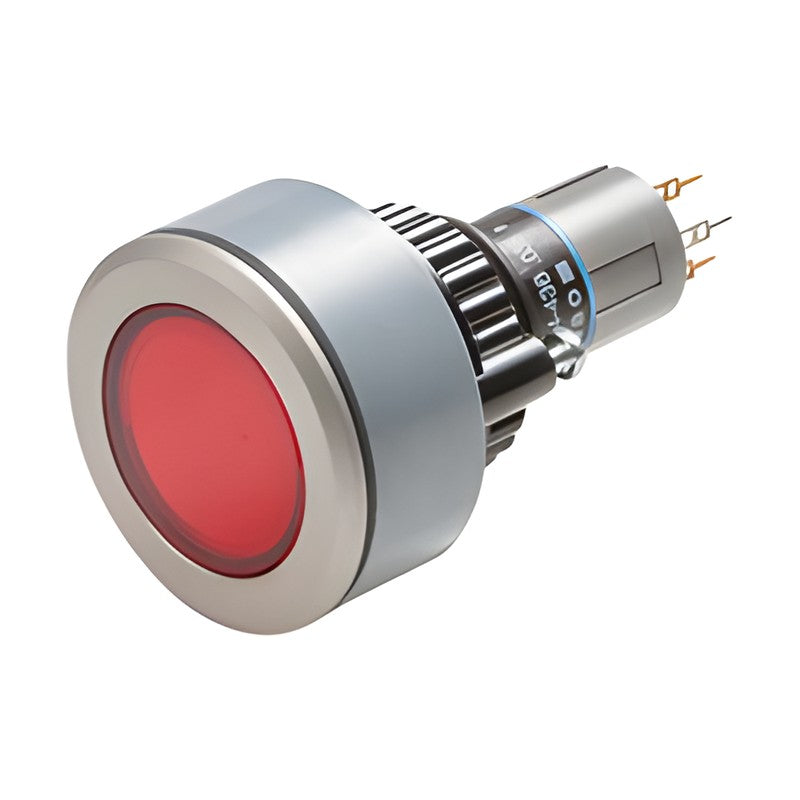

Illuminated Pushbuttons for the EAO Series 14 (compact 22.5 mm) HMI component range, listed by part number from the catalogue ordering tables.

Key features

  • Compact 22.5 mm EAO Series 14 system enabling space-saving installations
  • Switching action options: B (momentary), C (maintained)
  • Contacts options: 1 NC (low-level), 1 NC + 1 NO (low-level), 1 NO (low-level), 2 NC (low-level), 2 NO (low-level) and more
  • Terminal options: Universal 2.0 x 0.5 mm, Universal-Solder, Solder 2.8 x 0.5 mm, Solder
  • Diode 1N4007 options: 1, 2
  • Each part number covers the components shown in the catalogue; further parts (e.g. switching elements, LEDs) are selected separately

Specifications

Brand EAO
Product family Illuminated Pushbuttons
Series EAO Series 14 (compact 22.5 mm)
Mounting cut-out Ø 22.5 mm
Design Flush
Actuator Illuminated pushbutton
Protection IP 67
Catalogue EAO Series 14 catalogue (Edition 11/2013)
Part numbers 25 printed codes
Source EAO Series 14 catalogue (Edition 11/2013), p. 6-7
14-436.036 Switching action: B (momentary) | Contacts: 1 NC (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-476.036 Switching action: C (maintained) | Contacts: 1 NC (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-433.036 Switching action: B (momentary) | Contacts: 1 NC + 1 NO (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-473.036 Switching action: C (maintained) | Contacts: 1 NC + 1 NO (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-435.036 Switching action: B (momentary) | Contacts: 1 NO (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-475.036 Switching action: C (maintained) | Contacts: 1 NO (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-432.036 Switching action: B (momentary) | Contacts: 2 NC (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-472.036 Switching action: C (maintained) | Contacts: 2 NC (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-431.036 Switching action: B (momentary) | Contacts: 2 NO (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-471.036 Switching action: C (maintained) | Contacts: 2 NO (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-743.0292 Switching action: B (momentary) | Contacts: 1 NC + 1 NO (snap-action) | Terminal: Universal-Solder | Diode 1N4007: 1
14-747.0292 Switching action: C (maintained) | Contacts: 1 NC + 1 NO (snap-action) | Terminal: Universal-Solder | Diode 1N4007: 1
14-744.0292 Switching action: B (momentary) | Contacts: 1 NC + 1 NO (snap-action) | Terminal: Universal-Solder | Diode 1N4007: 2
14-748.0292 Switching action: C (maintained) | Contacts: 1 NC + 1 NO (snap-action) | Terminal: Universal-Solder | Diode 1N4007: 2
14-131.022 Switching action: B (momentary) | Contacts: 1 NC + 1 NO (snap-action) | Terminal: Solder 2.8 x 0.5 mm | Diode 1N4007: -
14-131.0252 Switching action: B (momentary) | Contacts: 1 NC + 1 NO (snap-action) | Terminal: Solder | Diode 1N4007: -
14-271.022 Switching action: C (maintained) | Contacts: 1 NC + 1 NO (snap-action) | Terminal: Solder 2.8 x 0.5 mm | Diode 1N4007: -
14-271.0252 Switching action: C (maintained) | Contacts: 1 NC + 1 NO (snap-action) | Terminal: Solder | Diode 1N4007: -
14-746.0292 Switching action: B (momentary) | Contacts: 2 NC + 2 NO (snap-action) | Terminal: Universal-Solder | Diode 1N4007: 2
14-132.0252 Switching action: B (momentary) | Contacts: 2 NC + 2 NO (snap-action) | Terminal: Solder | Diode 1N4007: -
14-272.0252 Switching action: C (maintained) | Contacts: 2 NC + 2 NO (snap-action) | Terminal: Solder | Diode 1N4007: -
14-133.0252 Switching action: B (momentary) | Contacts: 3 NC + 3 NO (snap-action) | Terminal: Solder | Diode 1N4007: -
14-273.0252 Switching action: C (maintained) | Contacts: 3 NC + 3 NO (snap-action) | Terminal: Solder | Diode 1N4007: -
14-134.0252 Switching action: B (momentary) | Contacts: 4 NC + 4 NO (snap-action) | Terminal: Solder | Diode 1N4007: -
14-274.0252 Switching action: C (maintained) | Contacts: 4 NC + 4 NO (snap-action) | Terminal: Solder | Diode 1N4007: -
Illuminated PushbuttonsEAO
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 14 Illuminated Pushbuttons (22.5 mm compact)

Brand EAO·Illuminated Pushbuttons

Available part numbers (25)

14-436.036, 14-476.036, 14-433.036, 14-473.036, 14-435.036, 14-475.036, 14-432.036, 14-472.036, 14-431.036, 14-471.036 + 15 more — see full table ↓

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
14-436.036Switching action: B (momentary) | Contacts: 1 NC (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-476.036Switching action: C (maintained) | Contacts: 1 NC (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-433.036Switching action: B (momentary) | Contacts: 1 NC + 1 NO (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-473.036Switching action: C (maintained) | Contacts: 1 NC + 1 NO (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-435.036Switching action: B (momentary) | Contacts: 1 NO (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-475.036Switching action: C (maintained) | Contacts: 1 NO (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-432.036Switching action: B (momentary) | Contacts: 2 NC (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-472.036Switching action: C (maintained) | Contacts: 2 NC (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-431.036Switching action: B (momentary) | Contacts: 2 NO (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-471.036Switching action: C (maintained) | Contacts: 2 NO (low-level) | Terminal: Universal 2.0 x 0.5 mm | Diode 1N4007: -
14-743.0292Switching action: B (momentary) | Contacts: 1 NC + 1 NO (snap-action) | Terminal: Universal-Solder | Diode 1N4007: 1
14-747.0292Switching action: C (maintained) | Contacts: 1 NC + 1 NO (snap-action) | Terminal: Universal-Solder | Diode 1N4007: 1
14-744.0292Switching action: B (momentary) | Contacts: 1 NC + 1 NO (snap-action) | Terminal: Universal-Solder | Diode 1N4007: 2
14-748.0292Switching action: C (maintained) | Contacts: 1 NC + 1 NO (snap-action) | Terminal: Universal-Solder | Diode 1N4007: 2
14-131.022Switching action: B (momentary) | Contacts: 1 NC + 1 NO (snap-action) | Terminal: Solder 2.8 x 0.5 mm | Diode 1N4007: -
14-131.0252Switching action: B (momentary) | Contacts: 1 NC + 1 NO (snap-action) | Terminal: Solder | Diode 1N4007: -
14-271.022Switching action: C (maintained) | Contacts: 1 NC + 1 NO (snap-action) | Terminal: Solder 2.8 x 0.5 mm | Diode 1N4007: -
14-271.0252Switching action: C (maintained) | Contacts: 1 NC + 1 NO (snap-action) | Terminal: Solder | Diode 1N4007: -
14-746.0292Switching action: B (momentary) | Contacts: 2 NC + 2 NO (snap-action) | Terminal: Universal-Solder | Diode 1N4007: 2
14-132.0252Switching action: B (momentary) | Contacts: 2 NC + 2 NO (snap-action) | Terminal: Solder | Diode 1N4007: -
14-272.0252Switching action: C (maintained) | Contacts: 2 NC + 2 NO (snap-action) | Terminal: Solder | Diode 1N4007: -
14-133.0252Switching action: B (momentary) | Contacts: 3 NC + 3 NO (snap-action) | Terminal: Solder | Diode 1N4007: -
14-273.0252Switching action: C (maintained) | Contacts: 3 NC + 3 NO (snap-action) | Terminal: Solder | Diode 1N4007: -
14-134.0252Switching action: B (momentary) | Contacts: 4 NC + 4 NO (snap-action) | Terminal: Solder | Diode 1N4007: -
14-274.0252Switching action: C (maintained) | Contacts: 4 NC + 4 NO (snap-action) | Terminal: Solder | Diode 1N4007: -
