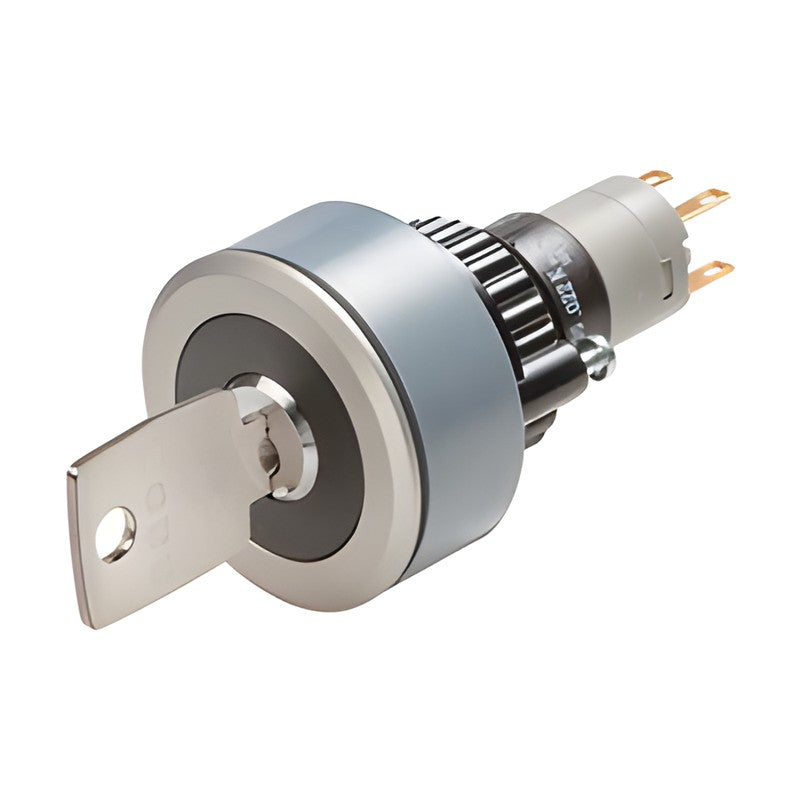

EAO Series 14 Keylock Switches (22.5 mm compact)

EAO Series 14 Keylock Switches (22.5 mm compact)

Keylock Switches for the EAO Series 14 (compact 22.5 mm) HMI component range, listed by part number from the catalogue ordering tables.

Key features

  • Compact 22.5 mm EAO Series 14 system enabling space-saving installations
  • Switching action options: A - B; B = 42°, A - C; C = 90°
  • Contacts options: 2 NO (low-level), 1 NC + 1 NO (low-level), 1 NC + 1 NO (snap-action), 2 NC + 2 NO (snap-action), 3 NC + 3 NO (snap-action) and more
  • Key remove options: A, A + C, C
  • Terminal options: Universal 2.0 x 0.5 mm, Solder 2.8 x 0.5 mm, Solder
  • Each part number covers the components shown in the catalogue; further parts (e.g. switching elements, LEDs) are selected separately

Specifications

Brand EAO
Product family Keylock Switches
Series EAO Series 14 (compact 22.5 mm)
Mounting cut-out Ø 22.5 mm
Design Flush
Actuator Keylock switch 2 positions
Protection IP 65
Catalogue EAO Series 14 catalogue (Edition 11/2013)
Part numbers 28 printed codes
Source EAO Series 14 catalogue (Edition 11/2013), p. 14-15
14-437.036K Switching action: A - B; B = 42° | Contacts: 2 NO (low-level) | Key remove: A | Terminal: Universal 2.0 x 0.5 mm
14-438.036K Switching action: A - B; B = 42° | Contacts: 1 NC + 1 NO (low-level) | Key remove: A | Terminal: Universal 2.0 x 0.5 mm
14-412.036K Switching action: A - C; C = 90° | Contacts: 1 NC + 1 NO (low-level) | Key remove: A + C | Terminal: Universal 2.0 x 0.5 mm
14-415.036K Switching action: A - C; C = 90° | Contacts: 1 NC + 1 NO (low-level) | Key remove: A | Terminal: Universal 2.0 x 0.5 mm
14-418.036K Switching action: A - C; C = 90° | Contacts: 1 NC + 1 NO (low-level) | Key remove: C | Terminal: Universal 2.0 x 0.5 mm
14-411.036K Switching action: A - C; C = 90° | Contacts: 2 NO (low-level) | Key remove: A + C | Terminal: Universal 2.0 x 0.5 mm
14-414.036K Switching action: A - C; C = 90° | Contacts: 2 NO (low-level) | Key remove: A | Terminal: Universal 2.0 x 0.5 mm
14-417.036K Switching action: A - C; C = 90° | Contacts: 2 NO (low-level) | Key remove: C | Terminal: Universal 2.0 x 0.5 mm
14-141.022K Switching action: A - B; B = 42° | Contacts: 1 NC + 1 NO (snap-action) | Key remove: A | Terminal: Solder 2.8 x 0.5 mm
14-141.025K2 Switching action: A - B; B = 42° | Contacts: 1 NC + 1 NO (snap-action) | Key remove: A | Terminal: Solder
14-142.025K2 Switching action: A - B; B = 42° | Contacts: 2 NC + 2 NO (snap-action) | Key remove: A | Terminal: Solder
14-143.025K2 Switching action: A - B; B = 42° | Contacts: 3 NC + 3 NO (snap-action) | Key remove: A | Terminal: Solder
14-144.025K2 Switching action: A - B; B = 42° | Contacts: 4 NC + 4 NO (snap-action) | Key remove: A | Terminal: Solder
14-135.025K2 Switching action: A - C; C = 90° | Contacts: 1 NC + 1 NO (snap-action) | Key remove: A + C | Terminal: Solder
14-235.025K2 Switching action: A - C; C = 90° | Contacts: 1 NC + 1 NO (snap-action) | Key remove: A | Terminal: Solder
14-335.025K2 Switching action: A - C; C = 90° | Contacts: 1 NC + 1 NO (snap-action) | Key remove: C | Terminal: Solder
14-135.022K Switching action: A - C; C = 90° | Contacts: 1 NC + 1 NO (snap-action) | Key remove: A + C | Terminal: Solder 2.8 x 0.5 mm
14-235.022K Switching action: A - C; C = 90° | Contacts: 1 NC + 1 NO (snap-action) | Key remove: A | Terminal: Solder 2.8 x 0.5 mm
14-335.022K Switching action: A - C; C = 90° | Contacts: 1 NC + 1 NO (snap-action) | Key remove: C | Terminal: Solder 2.8 x 0.5 mm
14-136.025K2 Switching action: A - C; C = 90° | Contacts: 2 NC + 2 NO (snap-action) | Key remove: A + C | Terminal: Solder
14-236.025K2 Switching action: A - C; C = 90° | Contacts: 2 NC + 2 NO (snap-action) | Key remove: A | Terminal: Solder
14-336.025K2 Switching action: A - C; C = 90° | Contacts: 2 NC + 2 NO (snap-action) | Key remove: C | Terminal: Solder
14-137.025K2 Switching action: A - C; C = 90° | Contacts: 3 NC + 3 NO (snap-action) | Key remove: A + C | Terminal: Solder
14-237.025K2 Switching action: A - C; C = 90° | Contacts: 3 NC + 3 NO (snap-action) | Key remove: A | Terminal: Solder
14-337.025K2 Switching action: A - C; C = 90° | Contacts: 3 NC + 3 NO (snap-action) | Key remove: C | Terminal: Solder
14-138.025K2 Switching action: A - C; C = 90° | Contacts: 4 NC + 4 NO (snap-action) | Key remove: A + C | Terminal: Solder
14-238.025K2 Switching action: A - C; C = 90° | Contacts: 4 NC + 4 NO (snap-action) | Key remove: A | Terminal: Solder
14-338.025K2 Switching action: A - C; C = 90° | Contacts: 4 NC + 4 NO (snap-action) | Key remove: C | Terminal: Solder
