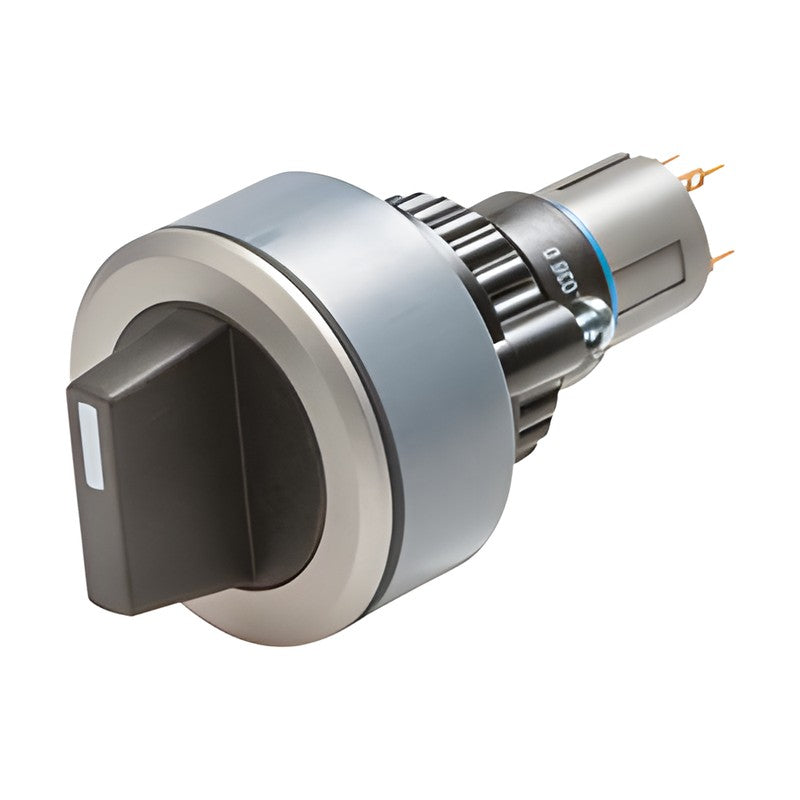

EAO Series 14 Selector Switches (22.5 mm compact)

EAO Series 14 Selector Switches (22.5 mm compact)

Selector Switches for the EAO Series 14 (compact 22.5 mm) HMI component range, listed by part number from the catalogue ordering tables.

Key features

  • Compact 22.5 mm EAO Series 14 system enabling space-saving installations
  • Front dimension options: Ø 29 mm
  • Switching action options: A - B; B = 42°, A - C; C = 90°
  • Contacts options: 1 NC + 1 NO (low-level), 2 NC (low-level), 2 NO (low-level), 1 NC + 1 NO (snap-action), 2 NC + 2 NO (snap-action) and more
  • Lever options: Plastic black short, Plastic black long
  • Each part number covers the components shown in the catalogue; further parts (e.g. switching elements, LEDs) are selected separately

Specifications

Brand EAO
Product family Selector Switches
Series EAO Series 14 (compact 22.5 mm)
Mounting cut-out Ø 22.5 mm
Design Flush / Raised
Actuator 2 positions
Protection IP 67
Catalogue EAO Series 14 catalogue (Edition 11/2013)
Part numbers 19 printed codes
Source EAO Series 14 catalogue (Edition 11/2013), p. 16-32
14-517.0360 Front dimension: - | Switching action: A - B; B = 42° | Contacts: 1 NC + 1 NO (low-level) | Lever: Plastic black short | Terminal: Universal 2.0 x 0.5 mm
14-522.0360 Front dimension: - | Switching action: A - C; C = 90° | Contacts: 1 NC + 1 NO (low-level) | Lever: Plastic black short | Terminal: Universal 2.0 x 0.5 mm
14-521.0360 Front dimension: - | Switching action: A - C; C = 90° | Contacts: 2 NC (low-level) | Lever: Plastic black short | Terminal: Universal 2.0 x 0.5 mm
14-515.0360 Front dimension: - | Switching action: A - B; B = 42° | Contacts: 2 NO (low-level) | Lever: Plastic black short | Terminal: Universal 2.0 x 0.5 mm
14-520.0360 Front dimension: - | Switching action: A - C; C = 90° | Contacts: 2 NO (low-level) | Lever: Plastic black short | Terminal: Universal 2.0 x 0.5 mm
14-501.0220 Front dimension: - | Switching action: A - B; B = 42° | Contacts: 1 NC + 1 NO (snap-action) | Lever: Plastic black short | Terminal: Solder 2.8 x 0.5 mm
14-501.02502 Front dimension: - | Switching action: A - B; B = 42° | Contacts: 1 NC + 1 NO (snap-action) | Lever: Plastic black short | Terminal: Solder
14-506.0220 Front dimension: - | Switching action: A - C; C = 90° | Contacts: 1 NC + 1 NO (snap-action) | Lever: Plastic black short | Terminal: Solder 2.8 x 0.5 mm
14-506.02502 Front dimension: - | Switching action: A - C; C = 90° | Contacts: 1 NC + 1 NO (snap-action) | Lever: Plastic black short | Terminal: Solder
14-502.02502 Front dimension: - | Switching action: A - B; B = 42° | Contacts: 2 NC + 2 NO (snap-action) | Lever: Plastic black short | Terminal: Solder
14-507.02502 Front dimension: - | Switching action: A - C; C = 90° | Contacts: 2 NC + 2 NO (snap-action) | Lever: Plastic black short | Terminal: Solder
14-503.02502 Front dimension: - | Switching action: A - B; B = 42° | Contacts: 3 NC + 3 NO (snap-action) | Lever: Plastic black short | Terminal: Solder
14-508.02502 Front dimension: - | Switching action: A - C; C = 90° | Contacts: 3 NC + 3 NO (snap-action) | Lever: Plastic black short | Terminal: Solder
14-509.02502 Front dimension: - | Switching action: A - C; C = 90° | Contacts: 4 NC + 4 NO (snap-action) | Lever: Plastic black short | Terminal: Solder
14-572.0360 Front dimension: Ø 29 mm | Switching action: A - C; C = 90° | Contacts: 1 NC + 1 NO (low-level) | Lever: Plastic black long | Terminal: Universal 2.0 x 0.5 mm
14-570.0360 Front dimension: Ø 29 mm | Switching action: A - C; C = 90° | Contacts: 2 NO (low-level) | Lever: Plastic black long | Terminal: Universal 2.0 x 0.5 mm
14-556.0220 Front dimension: Ø 29 mm | Switching action: A - C; C = 90° | Contacts: 1 NC + 1 NO (snap-action) | Lever: Plastic black long | Terminal: Solder 2.8 x 0.5 mm
14-556.02502 Front dimension: Ø 29 mm | Switching action: A - C; C = 90° | Contacts: 1 NC + 1 NO (snap-action) | Lever: Plastic black long | Terminal: Solder
14-557.02502 Front dimension: Ø 29 mm | Switching action: A - C; C = 90° | Contacts: 2 NC + 2 NO (snap-action) | Lever: Plastic black long | Terminal: Solder
