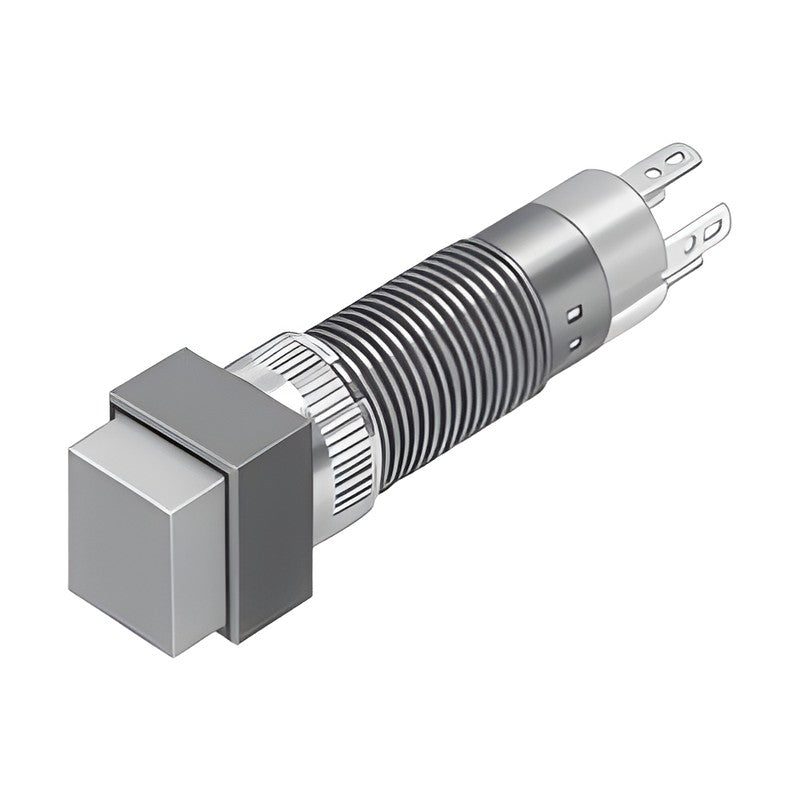

EAO Series 19 Illuminated Pushbuttons (8 mm)

EAO Series 19 Illuminated Pushbuttons (8 mm)

Illuminated Pushbuttons for the EAO Series 19 (compact 8 mm) HMI component range, listed by part number from the catalogue ordering tables.

Key features

  • Compact 8 mm EAO Series 19 system with low-level switching for low-current applications
  • Front dimension options: 9 x 9 mm, Ø 9 mm
  • Switching action options: B (momentary), C (maintained)
  • Contacts options: 1 NC (low-level, gold), 1 NO (low-level, gold), 1 NO (snap-action, gold), 1 NO (snap-action, silver)
  • Each part number covers the components shown in the catalogue; further parts (e.g. switching elements, LEDs) are selected separately
  • 16 part numbers exactly as printed in the ordering tables

Specifications

Brand EAO
Product family Illuminated Pushbuttons
Series EAO Series 19 (compact 8 mm)
Mounting cut-out Ø 8 mm
Design Raised
Actuator Illuminated pushbutton
Protection IP 40
Terminal Solder 2.0 x 0.5mm
Catalogue EAO Series 19 catalogue (Edition 11/2013)
Part numbers 16 printed codes
Source EAO Series 19 catalogue (Edition 11/2013), p. 5
19-452.035 Front dimension: 9 x 9 mm | Switching action: B (momentary) | Contacts: 1 NC (low-level, gold)
19-482.035 Front dimension: 9 x 9 mm | Switching action: C (maintained) | Contacts: 1 NC (low-level, gold)
19-451.035 Front dimension: 9 x 9 mm | Switching action: B (momentary) | Contacts: 1 NO (low-level, gold)
19-481.035 Front dimension: 9 x 9 mm | Switching action: C (maintained) | Contacts: 1 NO (low-level, gold)
19-159.035 Front dimension: 9 x 9 mm | Switching action: B (momentary) | Contacts: 1 NO (snap-action, gold)
19-289.035 Front dimension: 9 x 9 mm | Switching action: C (maintained) | Contacts: 1 NO (snap-action, gold)
19-159.015 Front dimension: 9 x 9 mm | Switching action: B (momentary) | Contacts: 1 NO (snap-action, silver)
19-289.015 Front dimension: 9 x 9 mm | Switching action: C (maintained) | Contacts: 1 NO (snap-action, silver)
19-432.035 Front dimension: Ø 9 mm | Switching action: B (momentary) | Contacts: 1 NC (low-level, gold)
19-472.035 Front dimension: Ø 9 mm | Switching action: C (maintained) | Contacts: 1 NC (low-level, gold)
19-431.035 Front dimension: Ø 9 mm | Switching action: B (momentary) | Contacts: 1 NO (low-level, gold)
19-471.035 Front dimension: Ø 9 mm | Switching action: C (maintained) | Contacts: 1 NO (low-level, gold)
19-139.035 Front dimension: Ø 9 mm | Switching action: B (momentary) | Contacts: 1 NO (snap-action, gold)
19-279.035 Front dimension: Ø 9 mm | Switching action: C (maintained) | Contacts: 1 NO (snap-action, gold)
19-139.015 Front dimension: Ø 9 mm | Switching action: B (momentary) | Contacts: 1 NO (snap-action, silver)
19-279.015 Front dimension: Ø 9 mm | Switching action: C (maintained) | Contacts: 1 NO (snap-action, silver)
