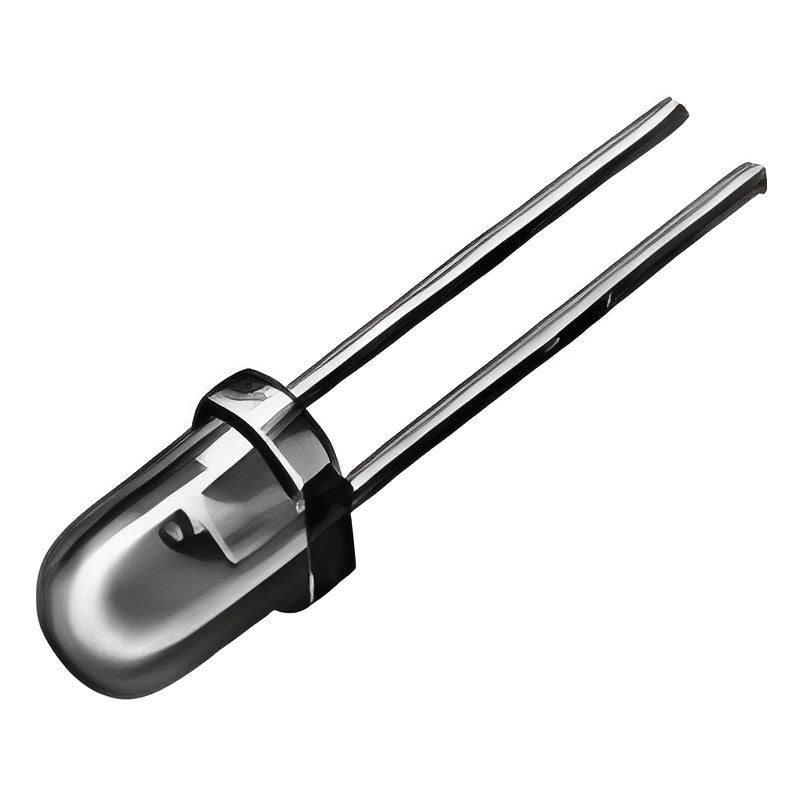

EAO Series 19 LEDs & Filament Lamps (8 mm)

EAO Series 19 LEDs & Filament Lamps (8 mm)

LEDs & Filament Lamps for the EAO Series 19 (compact 8 mm) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

  • Compact 8 mm EAO Series 19 system with low-level switching for low-current applications
  • Item options: Single-LED, Multi-LED, Filament lamp
  • LED colour options: red, yellow, green, white, orange
  • Operating voltage options: 1.7 VDC @ 20 mA, 2.1 VDC @ 20 mA, 3.6 VDC @ 20 mA, 28 VDC ±5%, 12 mA, 6 VAC/DC, 70 mA and more
  • Pins options: Single-LED max. length: 8 mm, Multi-LED max. length: 5 mm, max. length: 5 mm
  • 11 part numbers exactly as printed in the ordering tables

Specifications

Brand EAO
Product family LEDs & Filament Lamps
Series EAO Series 19 (compact 8 mm)
Mounting cut-out Ø 8 mm
Catalogue EAO Series 19 catalogue (Edition 11/2013)
Part numbers 11 printed codes
Source EAO Series 19 catalogue (Edition 11/2013), p. 10-11
10-2602.3172C Item: Single-LED | LED colour: red | Operating voltage: 1.7 VDC @ 20 mA | Pins: Single-LED max. length: 8 mm
10-2602.3174C Item: Single-LED | LED colour: yellow | Operating voltage: 2.1 VDC @ 20 mA | Pins: Single-LED max. length: 8 mm
10-2602.3175C Item: Single-LED | LED colour: green | Operating voltage: 2.1 VDC @ 20 mA | Pins: Single-LED max. length: 8 mm
10-2603.3179C Item: Single-LED | LED colour: white | Operating voltage: 3.6 VDC @ 20 mA | Pins: Single-LED max. length: 8 mm
10-4613.3102B Item: Multi-LED | LED colour: red | Operating voltage: 28 VDC ±5%, 12 mA | Pins: Multi-LED max. length: 5 mm
10-4613.3103B Item: Multi-LED | LED colour: orange | Operating voltage: 28 VDC ±5%, 12 mA | Pins: Multi-LED max. length: 5 mm
10-4613.3104B Item: Multi-LED | LED colour: yellow | Operating voltage: 28 VDC ±5%, 12 mA | Pins: Multi-LED max. length: 5 mm
10-4613.3105B Item: Multi-LED | LED colour: green | Operating voltage: 28 VDC ±5%, 12 mA | Pins: Multi-LED max. length: 5 mm
10-1606.1309 Item: Filament lamp | LED colour: - | Operating voltage: 6 VAC/DC, 70 mA | Pins: max. length: 5 mm
10-1609.1199 Item: Filament lamp | LED colour: - | Operating voltage: 12 VAC/DC, 25 mA | Pins: max. length: 5 mm
10-1612.1179 Item: Filament lamp | LED colour: - | Operating voltage: 24 VAC/DC, 20 mA | Pins: max. length: 5 mm
