• EAO Series 19 Lenses (8 mm)
1 1

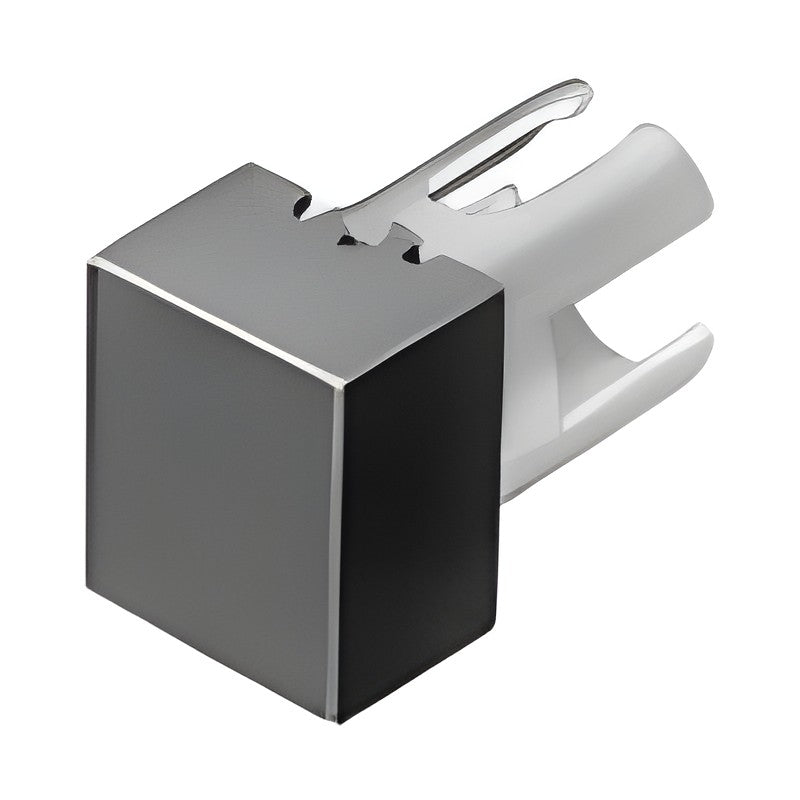

EAO Series 19 Lenses (8 mm)

EAO Series 19 Lenses (8 mm)

Lenses for the EAO Series 19 (compact 8 mm) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

  • Compact 8 mm EAO Series 19 system with low-level switching for low-current applications
  • Lens options: Plastic red transparent, Plastic yellow transparent, Plastic green transparent, Plastic blue transparent, Plastic white transparent and more
  • Product attribute options: illuminative, holder translucent, illuminative, not recommended for film, non-illuminative
  • Dimension options: 7.3 x 7.3 mm, Ø 7.3 mm
  • 24 part numbers exactly as printed in the ordering tables

Specifications

Brand EAO
Product family Lenses
Series EAO Series 19 (compact 8 mm)
Mounting cut-out Ø 8 mm
Item Lens
Catalogue EAO Series 19 catalogue (Edition 11/2013)
Part numbers 24 printed codes
Source EAO Series 19 catalogue (Edition 11/2013), p. 7
19-951.2 Lens: Plastic red transparent | Product attribute: illuminative, holder translucent | Dimension: 7.3 x 7.3 mm
19-951.4 Lens: Plastic yellow transparent | Product attribute: illuminative, holder translucent | Dimension: 7.3 x 7.3 mm
19-951.5 Lens: Plastic green transparent | Product attribute: illuminative, holder translucent | Dimension: 7.3 x 7.3 mm
19-951.6 Lens: Plastic blue transparent | Product attribute: illuminative, holder translucent | Dimension: 7.3 x 7.3 mm
19-951.9 Lens: Plastic white transparent | Product attribute: illuminative, holder translucent | Dimension: 7.3 x 7.3 mm
19-952.2 Lens: Plastic red transparent | Product attribute: illuminative, not recommended for film | Dimension: 7.3 x 7.3 mm
19-952.4 Lens: Plastic yellow transparent | Product attribute: illuminative, not recommended for film | Dimension: 7.3 x 7.3 mm
19-952.5 Lens: Plastic green transparent | Product attribute: illuminative, not recommended for film | Dimension: 7.3 x 7.3 mm
19-952.6 Lens: Plastic blue transparent | Product attribute: illuminative, not recommended for film | Dimension: 7.3 x 7.3 mm
19-952.7 Lens: Plastic colourless transparent | Product attribute: illuminative, not recommended for film | Dimension: 7.3 x 7.3 mm
19-951.0 Lens: Plastic black opaque | Product attribute: non-illuminative | Dimension: 7.3 x 7.3 mm
19-951.8 Lens: Plastic grey opaque | Product attribute: non-illuminative | Dimension: 7.3 x 7.3 mm
19-931.2 Lens: Plastic red transparent | Product attribute: illuminative, holder translucent | Dimension: Ø 7.3 mm
19-931.4 Lens: Plastic yellow transparent | Product attribute: illuminative, holder translucent | Dimension: Ø 7.3 mm
19-931.5 Lens: Plastic green transparent | Product attribute: illuminative, holder translucent | Dimension: Ø 7.3 mm
19-931.6 Lens: Plastic blue transparent | Product attribute: illuminative, holder translucent | Dimension: Ø 7.3 mm
19-931.9 Lens: Plastic white transparent | Product attribute: illuminative, holder translucent | Dimension: Ø 7.3 mm
19-932.2 Lens: Plastic red transparent | Product attribute: illuminative, not recommended for film | Dimension: Ø 7.3 mm
19-932.4 Lens: Plastic yellow transparent | Product attribute: illuminative, not recommended for film | Dimension: Ø 7.3 mm
19-932.5 Lens: Plastic green transparent | Product attribute: illuminative, not recommended for film | Dimension: Ø 7.3 mm
19-932.6 Lens: Plastic blue transparent | Product attribute: illuminative, not recommended for film | Dimension: Ø 7.3 mm
19-932.7 Lens: Plastic colourless transparent | Product attribute: illuminative, not recommended for film | Dimension: Ø 7.3 mm
19-931.0 Lens: Plastic black opaque | Product attribute: non-illuminative | Dimension: Ø 7.3 mm
19-931.8 Lens: Plastic grey opaque | Product attribute: non-illuminative | Dimension: Ø 7.3 mm
Pushbutton AccessoriesEAO
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 19 Lenses (8 mm)

Brand EAO·Pushbutton Accessories

Available part numbers (24)

19-951.2, 19-951.4, 19-951.5, 19-951.6, 19-951.9, 19-952.2, 19-952.4, 19-952.5, 19-952.6, 19-952.7 + 14 more — see full table ↓

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
19-951.2Lens: Plastic red transparent | Product attribute: illuminative, holder translucent | Dimension: 7.3 x 7.3 mm
19-951.4Lens: Plastic yellow transparent | Product attribute: illuminative, holder translucent | Dimension: 7.3 x 7.3 mm
19-951.5Lens: Plastic green transparent | Product attribute: illuminative, holder translucent | Dimension: 7.3 x 7.3 mm
19-951.6Lens: Plastic blue transparent | Product attribute: illuminative, holder translucent | Dimension: 7.3 x 7.3 mm
19-951.9Lens: Plastic white transparent | Product attribute: illuminative, holder translucent | Dimension: 7.3 x 7.3 mm
19-952.2Lens: Plastic red transparent | Product attribute: illuminative, not recommended for film | Dimension: 7.3 x 7.3 mm
19-952.4Lens: Plastic yellow transparent | Product attribute: illuminative, not recommended for film | Dimension: 7.3 x 7.3 mm
19-952.5Lens: Plastic green transparent | Product attribute: illuminative, not recommended for film | Dimension: 7.3 x 7.3 mm
19-952.6Lens: Plastic blue transparent | Product attribute: illuminative, not recommended for film | Dimension: 7.3 x 7.3 mm
19-952.7Lens: Plastic colourless transparent | Product attribute: illuminative, not recommended for film | Dimension: 7.3 x 7.3 mm
19-951.0Lens: Plastic black opaque | Product attribute: non-illuminative | Dimension: 7.3 x 7.3 mm
19-951.8Lens: Plastic grey opaque | Product attribute: non-illuminative | Dimension: 7.3 x 7.3 mm
19-931.2Lens: Plastic red transparent | Product attribute: illuminative, holder translucent | Dimension: Ø 7.3 mm
19-931.4Lens: Plastic yellow transparent | Product attribute: illuminative, holder translucent | Dimension: Ø 7.3 mm
19-931.5Lens: Plastic green transparent | Product attribute: illuminative, holder translucent | Dimension: Ø 7.3 mm
19-931.6Lens: Plastic blue transparent | Product attribute: illuminative, holder translucent | Dimension: Ø 7.3 mm
19-931.9Lens: Plastic white transparent | Product attribute: illuminative, holder translucent | Dimension: Ø 7.3 mm
19-932.2Lens: Plastic red transparent | Product attribute: illuminative, not recommended for film | Dimension: Ø 7.3 mm
19-932.4Lens: Plastic yellow transparent | Product attribute: illuminative, not recommended for film | Dimension: Ø 7.3 mm
19-932.5Lens: Plastic green transparent | Product attribute: illuminative, not recommended for film | Dimension: Ø 7.3 mm
19-932.6Lens: Plastic blue transparent | Product attribute: illuminative, not recommended for film | Dimension: Ø 7.3 mm
19-932.7Lens: Plastic colourless transparent | Product attribute: illuminative, not recommended for film | Dimension: Ø 7.3 mm
19-931.0Lens: Plastic black opaque | Product attribute: non-illuminative | Dimension: Ø 7.3 mm
19-931.8Lens: Plastic grey opaque | Product attribute: non-illuminative | Dimension: Ø 7.3 mm
