EAO Series 61 Emergency-Stop Accessories (16 mm)

Emergency-Stop Accessories for the EAO Series 61 (compact 16 mm modular) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

Compact 16 mm modular EAO Series 61 system for flush and raised designs
Item options: Emergency-stop legend, E-stop protective shroud, Emergency-stop enclosure
Colour options: yellow, yellow varnished
Marking options: without marking, NOT AUS, EMERGENCY STOP, ARRET D'URGENCE, NOT HALT
Dimension options: Ø 43 x 1.7 mm, 65 x 65 x 57 mm
7 part numbers exactly as printed in the ordering tables

Specifications

Brand	EAO
Product family	Emergency-Stop Accessories
Series	EAO Series 61 (compact 16 mm modular)
Mounting cut-out	Ø 16 mm
Catalogue	EAO Series 61 catalogue (Edition 06/2017)
Part numbers	7 printed codes
Source	EAO Series 61 catalogue (Edition 06/2017), p. 84-85

61-9970.0		Item: Emergency-stop legend \| Colour: yellow \| Marking: without marking \| Dimension: Ø 43 x 1.7 mm \| Mounting cut-out: Ø 16 mm \| Details: -
61-9970.1		Item: Emergency-stop legend \| Colour: yellow \| Marking: NOT AUS \| Dimension: Ø 43 x 1.7 mm \| Mounting cut-out: Ø 16 mm \| Details: -
61-9970.2		Item: Emergency-stop legend \| Colour: yellow \| Marking: EMERGENCY STOP \| Dimension: Ø 43 x 1.7 mm \| Mounting cut-out: Ø 16 mm \| Details: -
61-9970.3		Item: Emergency-stop legend \| Colour: yellow \| Marking: ARRET D'URGENCE \| Dimension: Ø 43 x 1.7 mm \| Mounting cut-out: Ø 16 mm \| Details: -
61-9970.6		Item: Emergency-stop legend \| Colour: yellow \| Marking: NOT HALT \| Dimension: Ø 43 x 1.7 mm \| Mounting cut-out: Ø 16 mm \| Details: -

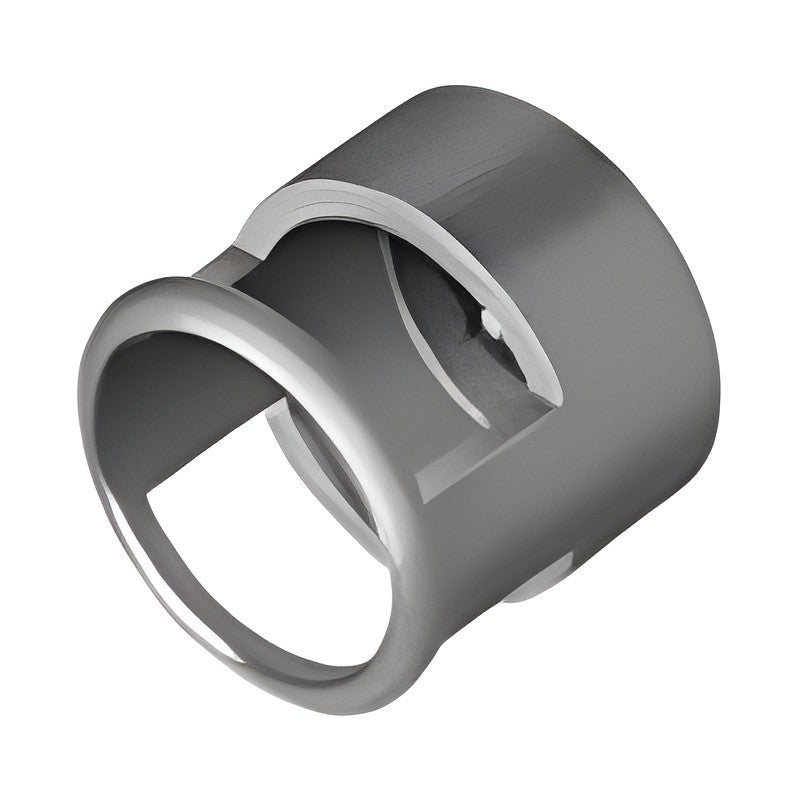

61-9965		Item: E-stop protective shroud \| Colour: yellow varnished \| Marking: - \| Dimension: - \| Mounting cut-out: - \| Details: Aluminium anodised
61-9480.5		Item: Emergency-stop enclosure \| Colour: - \| Marking: - \| Dimension: 65 x 65 x 57 mm \| Mounting cut-out: - \| Details: -

Pushbutton AccessoriesEAO

7 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 61 Emergency-Stop Accessories (16 mm)

Brand EAO·Pushbutton Accessories

Available part numbers (7)

61-9970.0, 61-9970.1, 61-9970.2, 61-9970.3, 61-9970.6, 61-9965, 61-9480.5

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	61-9970.0	Item: Emergency-stop legend \| Colour: yellow \| Marking: without marking \| Dimension: Ø 43 x 1.7 mm \| Mounting cut-out: Ø 16 mm \| Details: -
	61-9970.1	Item: Emergency-stop legend \| Colour: yellow \| Marking: NOT AUS \| Dimension: Ø 43 x 1.7 mm \| Mounting cut-out: Ø 16 mm \| Details: -
	61-9970.2	Item: Emergency-stop legend \| Colour: yellow \| Marking: EMERGENCY STOP \| Dimension: Ø 43 x 1.7 mm \| Mounting cut-out: Ø 16 mm \| Details: -
	61-9970.3	Item: Emergency-stop legend \| Colour: yellow \| Marking: ARRET D'URGENCE \| Dimension: Ø 43 x 1.7 mm \| Mounting cut-out: Ø 16 mm \| Details: -
	61-9970.6	Item: Emergency-stop legend \| Colour: yellow \| Marking: NOT HALT \| Dimension: Ø 43 x 1.7 mm \| Mounting cut-out: Ø 16 mm \| Details: -
	61-9965	Item: E-stop protective shroud \| Colour: yellow varnished \| Marking: - \| Dimension: - \| Mounting cut-out: - \| Details: Aluminium anodised
	61-9480.5	Item: Emergency-stop enclosure \| Colour: - \| Marking: - \| Dimension: 65 x 65 x 57 mm \| Mounting cut-out: - \| Details: -
