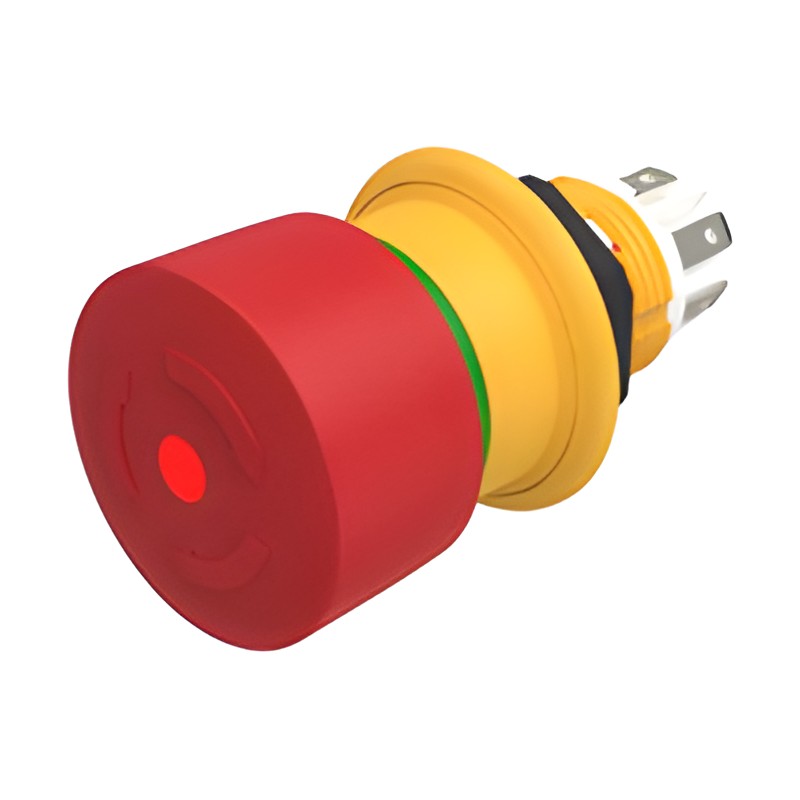

EAO Series 61 Emergency-Stop & Stop Switches (16 mm)

EAO Series 61 Emergency-Stop & Stop Switches (16 mm)

Emergency-Stop & Stop Switches for the EAO Series 61 (compact 16 mm modular) HMI component range, listed by part number from the catalogue ordering tables.

Key features

  • Compact 16 mm modular EAO Series 61 system for flush and raised designs
  • Actuator options: E-stop compact, foolproof, E-stop, foolproof, Stop switch, foolproof
  • Front dimension options: Ø 27 mm, Ø 40 mm
  • Contacts options: 1 NC, 2 NC, 3 NC, 1 NC + 1 NO, 2 NC + 1 NO and more
  • Lens options: Plastic grey, Plastic black
  • Each part number covers the components shown in the catalogue; further parts (e.g. switching elements, LEDs) are selected separately

Specifications

Brand EAO
Product family Emergency-Stop & Stop Switches
Series EAO Series 61 (compact 16 mm modular)
Mounting cut-out Ø 16 mm
Design Raised
Switching action C (maintained)
Catalogue EAO Series 61 catalogue (Edition 06/2017)
Part numbers 23 printed codes
Source EAO Series 61 catalogue (Edition 06/2017), p. 37-41
61-6441.4047 Actuator: E-stop compact, foolproof | Front dimension: Ø 27 mm | Contacts: 1 NC | Lens: - | Marking: Arrows | Product attribute: Twist to unlock clockwise, position
61-6441.4057 Actuator: E-stop compact, foolproof | Front dimension: Ø 27 mm | Contacts: 2 NC | Lens: - | Marking: Arrows | Product attribute: Twist to unlock clockwise, position
61-6441.4067 Actuator: E-stop compact, foolproof | Front dimension: Ø 27 mm | Contacts: 3 NC | Lens: - | Marking: Arrows | Product attribute: Twist to unlock clockwise, position
61-6441.4077 Actuator: E-stop compact, foolproof | Front dimension: Ø 27 mm | Contacts: 1 NC + 1 NO | Lens: - | Marking: Arrows | Product attribute: Twist to unlock clockwise, position
61-6441.4087 Actuator: E-stop compact, foolproof | Front dimension: Ø 27 mm | Contacts: 2 NC + 1 NO | Lens: - | Marking: Arrows | Product attribute: Twist to unlock clockwise, position
61-6441.4097 Actuator: E-stop compact, foolproof | Front dimension: Ø 27 mm | Contacts: 1 NC + 2 NO | Lens: - | Marking: Arrows | Product attribute: Twist to unlock clockwise, position
61-6451.4247 Actuator: E-stop compact, foolproof | Front dimension: Ø 27 mm | Contacts: 1 NC | Lens: - | Marking: Arrows | Product attribute: Twist to unlock clockwise, position
61-6451.4257 Actuator: E-stop compact, foolproof | Front dimension: Ø 27 mm | Contacts: 2 NC | Lens: - | Marking: Arrows | Product attribute: Twist to unlock clockwise, position
61-6451.4277 Actuator: E-stop compact, foolproof | Front dimension: Ø 27 mm | Contacts: 1 NC + 1 NO | Lens: - | Marking: Arrows | Product attribute: Twist to unlock clockwise, position
61-6461.4047 Actuator: E-stop compact, foolproof | Front dimension: Ø 40 mm | Contacts: 1 NC | Lens: - | Marking: Arrows | Product attribute: Twist to unlock clockwise, position
61-6461.4057 Actuator: E-stop compact, foolproof | Front dimension: Ø 40 mm | Contacts: 2 NC | Lens: - | Marking: Arrows | Product attribute: Twist to unlock clockwise, position
61-6461.4067 Actuator: E-stop compact, foolproof | Front dimension: Ø 40 mm | Contacts: 3 NC | Lens: - | Marking: Arrows | Product attribute: Twist to unlock clockwise, position
61-6461.4077 Actuator: E-stop compact, foolproof | Front dimension: Ø 40 mm | Contacts: 1 NC + 1 NO | Lens: - | Marking: Arrows | Product attribute: Twist to unlock clockwise, position
61-6461.4087 Actuator: E-stop compact, foolproof | Front dimension: Ø 40 mm | Contacts: 2 NC + 1 NO | Lens: - | Marking: Arrows | Product attribute: Twist to unlock clockwise, position
61-6461.4097 Actuator: E-stop compact, foolproof | Front dimension: Ø 40 mm | Contacts: 1 NC + 2 NO | Lens: - | Marking: Arrows | Product attribute: Twist to unlock clockwise, position
61-3440.4/1 Actuator: E-stop, foolproof | Front dimension: Ø 27 mm | Contacts: - | Lens: - | Marking: Arrows | Product attribute: Twist to unlock clockwise, position
61-3440.4/2 Actuator: E-stop, foolproof | Front dimension: Ø 27 mm | Contacts: - | Lens: - | Marking: Stop + Arrows | Product attribute: Twist to unlock clockwise, position
61-3440.4/5 Actuator: E-stop, foolproof | Front dimension: Ø 27 mm | Contacts: - | Lens: - | Marking: Arrows | Product attribute: Position indication ring green, twist to
61-3440.4/1S Actuator: E-stop, foolproof | Front dimension: Ø 27 mm | Contacts: - | Lens: - | Marking: Arrows | Product attribute: Position indication ring black, twist to
61-3440.4/D Actuator: E-stop, foolproof | Front dimension: Ø 27 mm | Contacts: - | Lens: - | Marking: Arrows | Product attribute: Position indication ring black, twist to
61-5441.4/K Actuator: E-stop, foolproof | Front dimension: Ø 27 mm | Contacts: - | Lens: - | Marking: Stop | Product attribute: Key to unlock clockwise, position
61-3440.4/8 Actuator: Stop switch, foolproof | Front dimension: Ø 27 mm | Contacts: - | Lens: Plastic grey | Marking: Arrows | Product attribute: Twist to unlock clockwise, position
61-5441.0/KA Actuator: Stop switch, foolproof | Front dimension: Ø 27 mm | Contacts: - | Lens: Plastic black | Marking: - | Product attribute: Key to unlock clockwise, position
