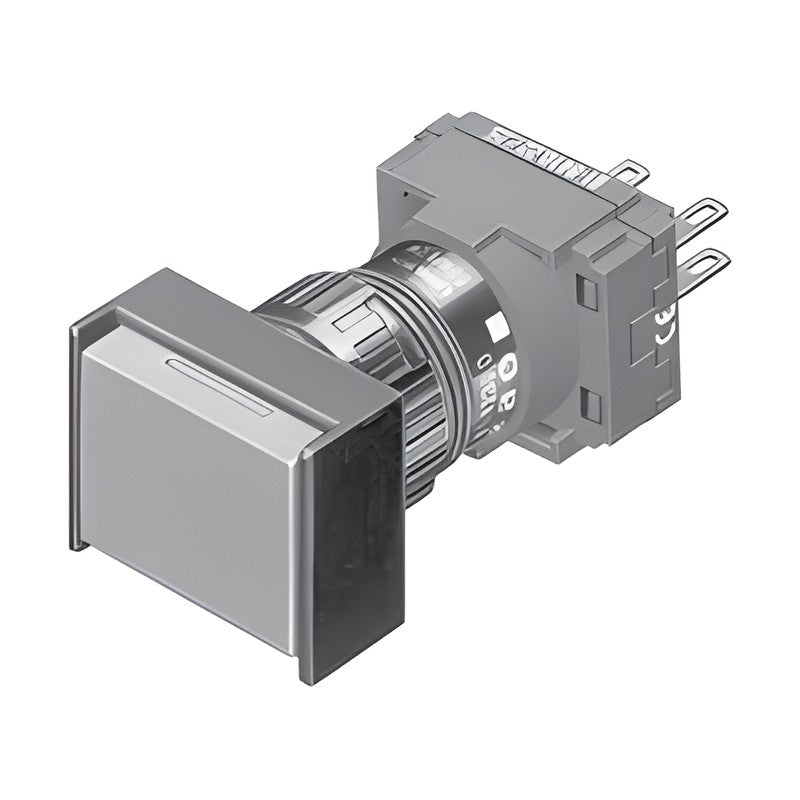

• EAO Series 61 Illuminated Pushbuttons (16 mm)
1 1

EAO Series 61 Illuminated Pushbuttons (16 mm)

EAO Series 61 Illuminated Pushbuttons (16 mm)

Illuminated Pushbuttons for the EAO Series 61 (compact 16 mm modular) HMI component range, listed by part number from the catalogue ordering tables.

Key features

  • Compact 16 mm modular EAO Series 61 system for flush and raised designs
  • Actuator options: Illuminated pushbutton, Illuminated pushbutton round Ø 24 mm
  • Front dimension options: 24 x 24 mm, 18 x 18 mm, 18 x 24 mm, Ø 18 mm
  • Switching action options: B (momentary), C (maintained), B - C
  • Product attribute options: B-C convertible from momentary to
  • Each part number covers the components shown in the catalogue; further parts (e.g. switching elements, LEDs) are selected separately

Specifications

Brand EAO
Product family Illuminated Pushbuttons
Series EAO Series 61 (compact 16 mm modular)
Mounting cut-out Ø 16 mm
Design Raised
Protection IP 65
Catalogue EAO Series 61 catalogue (Edition 06/2017)
Part numbers 14 printed codes
Source EAO Series 61 catalogue (Edition 06/2017), p. 34-36
61-1150.0 Actuator: Illuminated pushbutton | Front dimension: 24 x 24 mm | Switching action: B (momentary) | Product attribute: -
61-1250.0 Actuator: Illuminated pushbutton | Front dimension: 24 x 24 mm | Switching action: C (maintained) | Product attribute: -
61-1350.0 Actuator: Illuminated pushbutton | Front dimension: 24 x 24 mm | Switching action: B - C | Product attribute: B-C convertible from momentary to
61-1120.0 Actuator: Illuminated pushbutton | Front dimension: 18 x 18 mm | Switching action: B (momentary) | Product attribute: -
61-1220.0 Actuator: Illuminated pushbutton | Front dimension: 18 x 18 mm | Switching action: C (maintained) | Product attribute: -
61-1320.0 Actuator: Illuminated pushbutton | Front dimension: 18 x 18 mm | Switching action: B - C | Product attribute: B-C convertible from momentary to
61-1130.0 Actuator: Illuminated pushbutton | Front dimension: 18 x 24 mm | Switching action: B (momentary) | Product attribute: -
61-1230.0 Actuator: Illuminated pushbutton | Front dimension: 18 x 24 mm | Switching action: C (maintained) | Product attribute: -
61-1330.0 Actuator: Illuminated pushbutton | Front dimension: 18 x 24 mm | Switching action: B - C | Product attribute: B-C convertible from momentary to
61-1110.0 Actuator: Illuminated pushbutton | Front dimension: Ø 18 mm | Switching action: B (momentary) | Product attribute: -
61-1210.0 Actuator: Illuminated pushbutton | Front dimension: Ø 18 mm | Switching action: C (maintained) | Product attribute: -
61-1310.0 Actuator: Illuminated pushbutton | Front dimension: Ø 18 mm | Switching action: B - C | Product attribute: B-C convertible from momentary to
61-1140.0 Actuator: Illuminated pushbutton round Ø 24 mm | Front dimension: - | Switching action: B (momentary) | Product attribute: -
61-1240.0 Actuator: Illuminated pushbutton round Ø 24 mm | Front dimension: - | Switching action: C (maintained) | Product attribute: -
Illuminated PushbuttonsEAO
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 61 Illuminated Pushbuttons (16 mm)

Brand EAO·Illuminated Pushbuttons

Available part numbers (14)

61-1150.0, 61-1250.0, 61-1350.0, 61-1120.0, 61-1220.0, 61-1320.0, 61-1130.0, 61-1230.0, 61-1330.0, 61-1110.0 + 4 more — see full table ↓

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
61-1150.0Actuator: Illuminated pushbutton | Front dimension: 24 x 24 mm | Switching action: B (momentary) | Product attribute: -
61-1250.0Actuator: Illuminated pushbutton | Front dimension: 24 x 24 mm | Switching action: C (maintained) | Product attribute: -
61-1350.0Actuator: Illuminated pushbutton | Front dimension: 24 x 24 mm | Switching action: B - C | Product attribute: B-C convertible from momentary to
61-1120.0Actuator: Illuminated pushbutton | Front dimension: 18 x 18 mm | Switching action: B (momentary) | Product attribute: -
61-1220.0Actuator: Illuminated pushbutton | Front dimension: 18 x 18 mm | Switching action: C (maintained) | Product attribute: -
61-1320.0Actuator: Illuminated pushbutton | Front dimension: 18 x 18 mm | Switching action: B - C | Product attribute: B-C convertible from momentary to
61-1130.0Actuator: Illuminated pushbutton | Front dimension: 18 x 24 mm | Switching action: B (momentary) | Product attribute: -
61-1230.0Actuator: Illuminated pushbutton | Front dimension: 18 x 24 mm | Switching action: C (maintained) | Product attribute: -
61-1330.0Actuator: Illuminated pushbutton | Front dimension: 18 x 24 mm | Switching action: B - C | Product attribute: B-C convertible from momentary to
61-1110.0Actuator: Illuminated pushbutton | Front dimension: Ø 18 mm | Switching action: B (momentary) | Product attribute: -
61-1210.0Actuator: Illuminated pushbutton | Front dimension: Ø 18 mm | Switching action: C (maintained) | Product attribute: -
61-1310.0Actuator: Illuminated pushbutton | Front dimension: Ø 18 mm | Switching action: B - C | Product attribute: B-C convertible from momentary to
61-1140.0Actuator: Illuminated pushbutton round Ø 24 mm | Front dimension: - | Switching action: B (momentary) | Product attribute: -
61-1240.0Actuator: Illuminated pushbutton round Ø 24 mm | Front dimension: - | Switching action: C (maintained) | Product attribute: -
