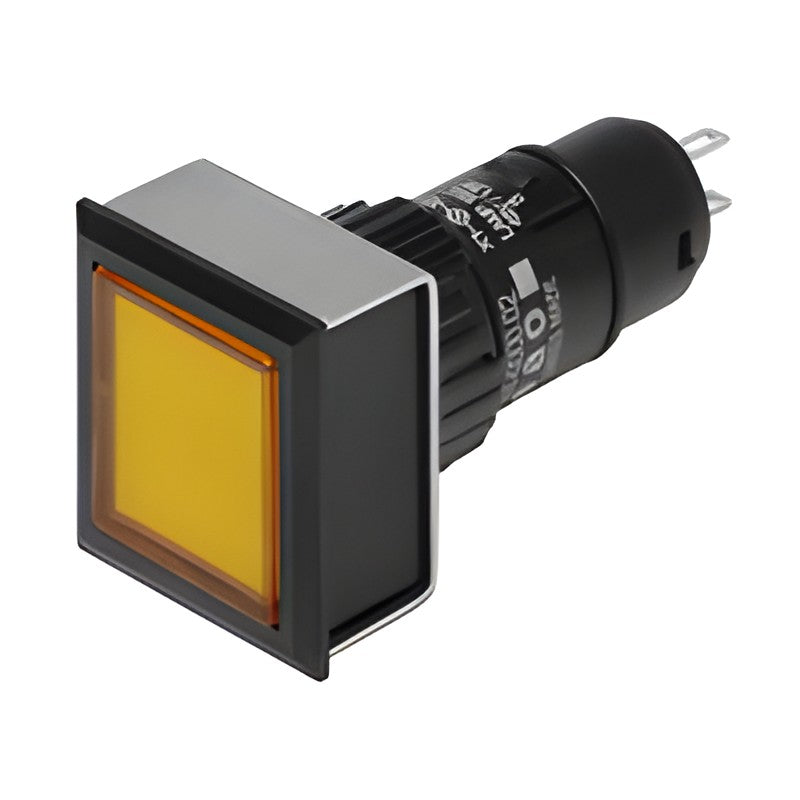

EAO Series 61 Indicators (16 mm)

EAO Series 61 Indicators (16 mm)

Indicators for the EAO Series 61 (compact 16 mm modular) HMI component range, listed by part number from the catalogue ordering tables.

Key features

  • Compact 16 mm modular EAO Series 61 system for flush and raised designs
  • Actuator options: Indicator complete square, Indicator square, flush design, Indicator complete, Indicator complete Ø 24 mm, Indicator and more
  • Front dimension options: 24 x 24 mm, 18 x 18 mm, 18 x 24 mm, Ø 18 mm
  • Terminal options: Solder 2.8 x 0.5 mm
  • Each part number covers the components shown in the catalogue; further parts (e.g. switching elements, LEDs) are selected separately
  • 12 part numbers exactly as printed in the ordering tables

Specifications

Brand EAO
Product family Indicators
Series EAO Series 61 (compact 16 mm modular)
Mounting cut-out Ø 16 mm
Design Flush / Raised
Protection IP 65
Catalogue EAO Series 61 catalogue (Edition 06/2017)
Part numbers 12 printed codes
Source EAO Series 61 catalogue (Edition 06/2017), p. 4-33
61-0000.02 Actuator: Indicator complete square | Front dimension: - | Terminal: Solder 2.8 x 0.5 mm
61-0009.0 Actuator: Indicator square, flush design | Front dimension: - | Terminal: -
61-0050.02 Actuator: Indicator complete | Front dimension: 24 x 24 mm | Terminal: Solder 2.8 x 0.5 mm
61-0020.02 Actuator: Indicator complete | Front dimension: 18 x 18 mm | Terminal: Solder 2.8 x 0.5 mm
61-0030.02 Actuator: Indicator complete | Front dimension: 18 x 24 mm | Terminal: Solder 2.8 x 0.5 mm
61-0010.02 Actuator: Indicator complete | Front dimension: Ø 18 mm | Terminal: Solder 2.8 x 0.5 mm
61-0040.02 Actuator: Indicator complete Ø 24 mm | Front dimension: - | Terminal: Solder 2.8 x 0.5 mm
61-0059.0 Actuator: Indicator | Front dimension: 24 x 24 mm | Terminal: -
61-0029.0 Actuator: Indicator | Front dimension: 18 x 18 mm | Terminal: -
61-0039.0 Actuator: Indicator | Front dimension: 18 x 24 mm | Terminal: -
61-0019.0 Actuator: Indicator | Front dimension: Ø 18 mm | Terminal: -
61-0049.0 Actuator: Indicator Ø 24 mm | Front dimension: - | Terminal: -
Indicator LightsEAO
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 61 Indicators (16 mm)

Brand EAO·Indicator Lights

Available part numbers (12)

61-0000.02, 61-0009.0, 61-0050.02, 61-0020.02, 61-0030.02, 61-0010.02, 61-0040.02, 61-0059.0, 61-0029.0, 61-0039.0 + 2 more — see full table ↓

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
61-0000.02Actuator: Indicator complete square | Front dimension: - | Terminal: Solder 2.8 x 0.5 mm
61-0009.0Actuator: Indicator square, flush design | Front dimension: - | Terminal: -
61-0050.02Actuator: Indicator complete | Front dimension: 24 x 24 mm | Terminal: Solder 2.8 x 0.5 mm
61-0020.02Actuator: Indicator complete | Front dimension: 18 x 18 mm | Terminal: Solder 2.8 x 0.5 mm
61-0030.02Actuator: Indicator complete | Front dimension: 18 x 24 mm | Terminal: Solder 2.8 x 0.5 mm
61-0010.02Actuator: Indicator complete | Front dimension: Ø 18 mm | Terminal: Solder 2.8 x 0.5 mm
61-0040.02Actuator: Indicator complete Ø 24 mm | Front dimension: - | Terminal: Solder 2.8 x 0.5 mm
61-0059.0Actuator: Indicator | Front dimension: 24 x 24 mm | Terminal: -
61-0029.0Actuator: Indicator | Front dimension: 18 x 18 mm | Terminal: -
61-0039.0Actuator: Indicator | Front dimension: 18 x 24 mm | Terminal: -
61-0019.0Actuator: Indicator | Front dimension: Ø 18 mm | Terminal: -
61-0049.0Actuator: Indicator Ø 24 mm | Front dimension: - | Terminal: -
