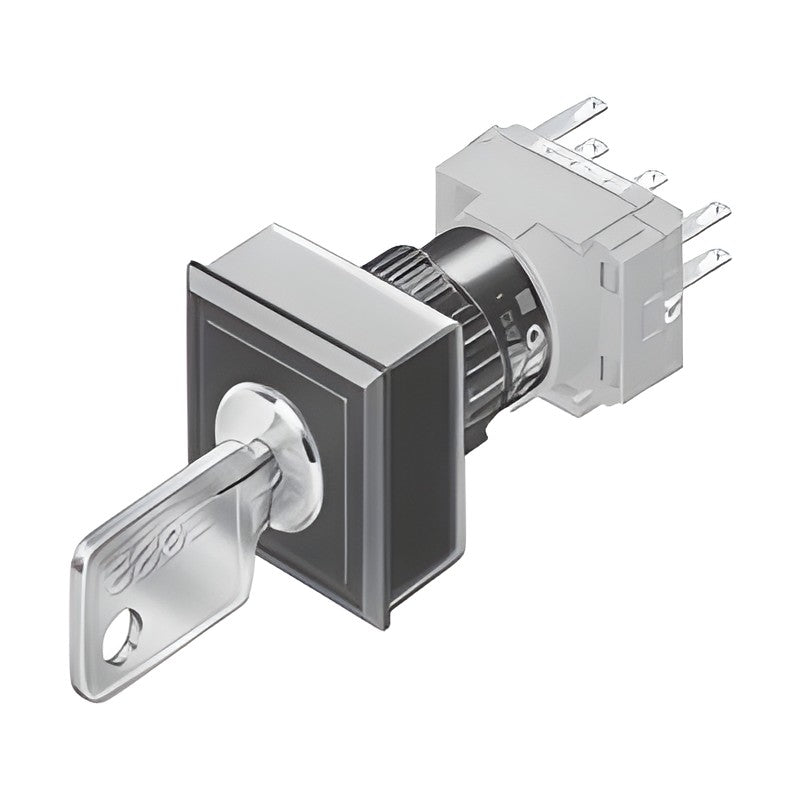

EAO Series 61 Keylock Switches (16 mm)

EAO Series 61 Keylock Switches (16 mm)

Keylock Switches for the EAO Series 61 (compact 16 mm modular) HMI component range, listed by part number from the catalogue ordering tables.

Key features

  • Compact 16 mm modular EAO Series 61 system for flush and raised designs
  • Actuator options: Keylock switch 2 positions square, Keylock switch 3 positions square
  • Switching action options: A - B; B = 42°, A - C; C = 90°, B - A - B; B = 42° / 42°, C - A - B; C = 90°, B = 42°, B - A - C; B = 42°, C = 90° and more
  • Key remove options: A, C, A + C, C + A, C - - and more
  • Each part number covers the components shown in the catalogue; further parts (e.g. switching elements, LEDs) are selected separately
  • 17 part numbers exactly as printed in the ordering tables

Specifications

Brand EAO
Product family Keylock Switches
Series EAO Series 61 (compact 16 mm modular)
Mounting cut-out Ø 16 mm
Design Flush
Protection IP 65
Catalogue EAO Series 61 catalogue (Edition 06/2017)
Part numbers 17 printed codes
Source EAO Series 61 catalogue (Edition 06/2017), p. 16-19
61-2101.0/D Actuator: Keylock switch 2 positions square | Switching action: A - B; B = 42° | Key remove: A
61-2201.0/D Actuator: Keylock switch 2 positions square | Switching action: A - C; C = 90° | Key remove: A
61-2203.0/D Actuator: Keylock switch 2 positions square | Switching action: A - C; C = 90° | Key remove: C
61-2205.0/D Actuator: Keylock switch 2 positions square | Switching action: A - C; C = 90° | Key remove: A + C
61-2501.0/D Actuator: Keylock switch 3 positions square | Switching action: B - A - B; B = 42° / 42° | Key remove: A
61-2801.0/D Actuator: Keylock switch 3 positions square | Switching action: C - A - B; C = 90°, B = 42° | Key remove: A
61-2802.0/D Actuator: Keylock switch 3 positions square | Switching action: C - A - B; C = 90°, B = 42° | Key remove: C
61-2804.0/D Actuator: Keylock switch 3 positions square | Switching action: C - A - B; C = 90°, B = 42° | Key remove: C + A
61-2701.0/D Actuator: Keylock switch 3 positions square | Switching action: B - A - C; B = 42°, C = 90° | Key remove: A
61-2705.0/D Actuator: Keylock switch 3 positions square | Switching action: B - A - C; B = 42°, C = 90° | Key remove: A + C
61-2601.0/D Actuator: Keylock switch 3 positions square | Switching action: C - A - C; C = 90° / 90° | Key remove: A
61-2602.0/D Actuator: Keylock switch 3 positions square | Switching action: C - A - C; C = 90° / 90° | Key remove: C - -
61-2603.0/D Actuator: Keylock switch 3 positions square | Switching action: C - A - C; C = 90° / 90° | Key remove: - - C
61-2604.0/D Actuator: Keylock switch 3 positions square | Switching action: C - A - C; C = 90° / 90° | Key remove: C + A
61-2605.0/D Actuator: Keylock switch 3 positions square | Switching action: C - A - C; C = 90° / 90° | Key remove: A + C
61-2606.0/D Actuator: Keylock switch 3 positions square | Switching action: C - A - C; C = 90° / 90° | Key remove: C + C
61-2607.0/D Actuator: Keylock switch 3 positions square | Switching action: C - A - C; C = 90° / 90° | Key remove: C + A + C
Key SwitchesEAO
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 61 Keylock Switches (16 mm)

Brand EAO·Key Switches

Available part numbers (17)

61-2101.0/D, 61-2201.0/D, 61-2203.0/D, 61-2205.0/D, 61-2501.0/D, 61-2801.0/D, 61-2802.0/D, 61-2804.0/D, 61-2701.0/D, 61-2705.0/D + 7 more — see full table ↓
