• EAO Series 61 Protective Covers (16 mm)
1 1

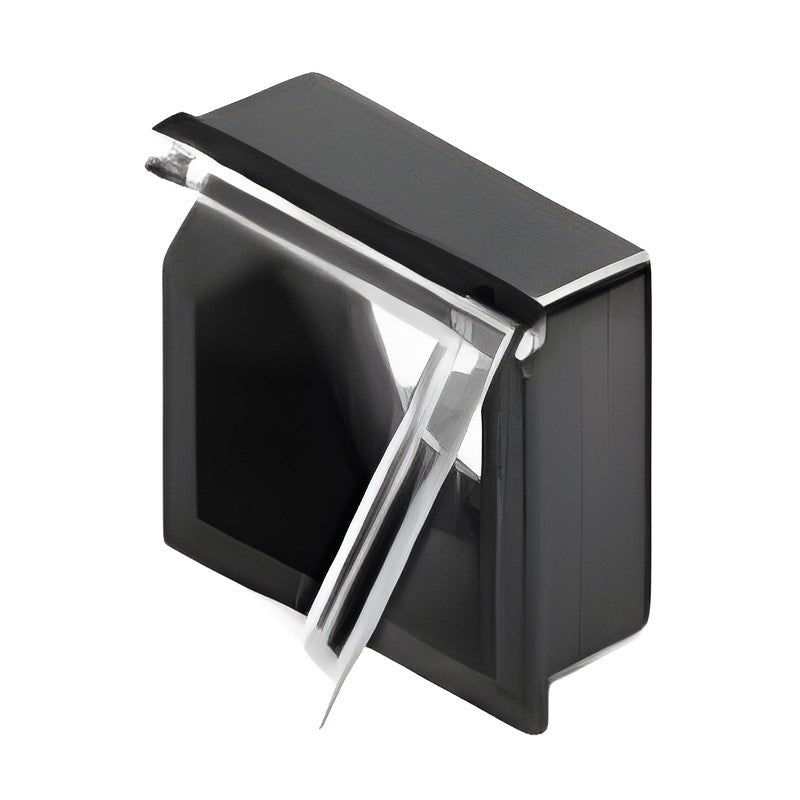

EAO Series 61 Protective Covers (16 mm)

EAO Series 61 Protective Covers (16 mm)

Protective Covers for the EAO Series 61 (compact 16 mm modular) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

  • Compact 16 mm modular EAO Series 61 system for flush and raised designs
  • Item options: Protective cover flush design, Protective cover, Protective cover raised design, Blind plug flush design, Blind plug and more
  • Colour options: black
  • Product attribute options: hinged, with means for sealing, for, slide by side, with means not for, hinged, with means not for sealing, for
  • Dimension options: 24 x 24 mm, 24 x 30 mm, Ø 25 mm, 18 x 18 mm, 18 x 24 mm and more
  • 13 part numbers exactly as printed in the ordering tables

Specifications

Brand EAO
Product family Protective Covers
Series EAO Series 61 (compact 16 mm modular)
Mounting cut-out Ø 16 mm
Catalogue EAO Series 61 catalogue (Edition 06/2017)
Part numbers 13 printed codes
Source EAO Series 61 catalogue (Edition 06/2017), p. 69-72
61-9921.0 Item: Protective cover flush design | Colour: - | Product attribute: hinged, with means for sealing, for | Dimension: - | Material: Plastic | Mounting cut-out: 21 x 21 mm
61-9922.0 Item: Protective cover flush design | Colour: - | Product attribute: hinged, with means for sealing, for | Dimension: - | Material: Plastic | Mounting cut-out: 21 x 27 mm
61-9924.0 Item: Protective cover flush design | Colour: - | Product attribute: slide by side, with means not for | Dimension: - | Material: Plastic | Mounting cut-out: Ø 22.5 mm
61-9920.0 Item: Protective cover | Colour: - | Product attribute: hinged, with means not for sealing, for | Dimension: - | Material: PlasticPlastic | Mounting cut-out: Ø 16 mm
51-920 Item: Protective cover raised design | Colour: - | Product attribute: hinged, with means for sealing, for | Dimension: - | Material: Plastic | Mounting cut-out: Ø 16 mm
51-925 Item: Protective cover raised design | Colour: - | Product attribute: hinged, with means for sealing, for | Dimension: - | Material: Plastic | Mounting cut-out: Ø 16 mm
61-9451.0 Item: Blind plug flush design | Colour: black | Product attribute: - | Dimension: 24 x 24 mm | Material: Plastic | Mounting cut-out: 21 x 21 mm
61-9452.0 Item: Blind plug flush design | Colour: black | Product attribute: - | Dimension: 24 x 30 mm | Material: Plastic | Mounting cut-out: 21 x 27 mm
61-9453.0 Item: Blind plug flush design | Colour: black | Product attribute: - | Dimension: Ø 25 mm | Material: Plastic | Mounting cut-out: Ø 22.5 mm
61-9450.0 Item: Blind plug | Colour: black | Product attribute: - | Dimension: 24 x 24 mm | Material: Plastic | Mounting cut-out: Ø 16 mm
51-948.0 Item: Blind plug | Colour: black | Product attribute: - | Dimension: 18 x 18 mm | Material: Plastic | Mounting cut-out: Ø 16 mm
51-947.0 Item: Blind plug raised design | Colour: black | Product attribute: - | Dimension: 18 x 24 mm | Material: Plastic | Mounting cut-out: Ø 16 mm
51-949.0 Item: Blind plug raised design | Colour: black | Product attribute: - | Dimension: Ø 18 mm | Material: Plastic | Mounting cut-out: Ø 16 mm
Pushbutton AccessoriesEAO
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 61 Protective Covers (16 mm)

Brand EAO·Pushbutton Accessories

Available part numbers (13)

61-9921.0, 61-9922.0, 61-9924.0, 61-9920.0, 51-920, 51-925, 61-9451.0, 61-9452.0, 61-9453.0, 61-9450.0 + 3 more — see full table ↓

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
61-9921.0Item: Protective cover flush design | Colour: - | Product attribute: hinged, with means for sealing, for | Dimension: - | Material: Plastic | Mounting cut-out: 21 x 21 mm
61-9922.0Item: Protective cover flush design | Colour: - | Product attribute: hinged, with means for sealing, for | Dimension: - | Material: Plastic | Mounting cut-out: 21 x 27 mm
61-9924.0Item: Protective cover flush design | Colour: - | Product attribute: slide by side, with means not for | Dimension: - | Material: Plastic | Mounting cut-out: Ø 22.5 mm
61-9920.0Item: Protective cover | Colour: - | Product attribute: hinged, with means not for sealing, for | Dimension: - | Material: PlasticPlastic | Mounting cut-out: Ø 16 mm
51-920Item: Protective cover raised design | Colour: - | Product attribute: hinged, with means for sealing, for | Dimension: - | Material: Plastic | Mounting cut-out: Ø 16 mm
51-925Item: Protective cover raised design | Colour: - | Product attribute: hinged, with means for sealing, for | Dimension: - | Material: Plastic | Mounting cut-out: Ø 16 mm
61-9451.0Item: Blind plug flush design | Colour: black | Product attribute: - | Dimension: 24 x 24 mm | Material: Plastic | Mounting cut-out: 21 x 21 mm
61-9452.0Item: Blind plug flush design | Colour: black | Product attribute: - | Dimension: 24 x 30 mm | Material: Plastic | Mounting cut-out: 21 x 27 mm
61-9453.0Item: Blind plug flush design | Colour: black | Product attribute: - | Dimension: Ø 25 mm | Material: Plastic | Mounting cut-out: Ø 22.5 mm
61-9450.0Item: Blind plug | Colour: black | Product attribute: - | Dimension: 24 x 24 mm | Material: Plastic | Mounting cut-out: Ø 16 mm
51-948.0Item: Blind plug | Colour: black | Product attribute: - | Dimension: 18 x 18 mm | Material: Plastic | Mounting cut-out: Ø 16 mm
51-947.0Item: Blind plug raised design | Colour: black | Product attribute: - | Dimension: 18 x 24 mm | Material: Plastic | Mounting cut-out: Ø 16 mm
51-949.0Item: Blind plug raised design | Colour: black | Product attribute: - | Dimension: Ø 18 mm | Material: Plastic | Mounting cut-out: Ø 16 mm
