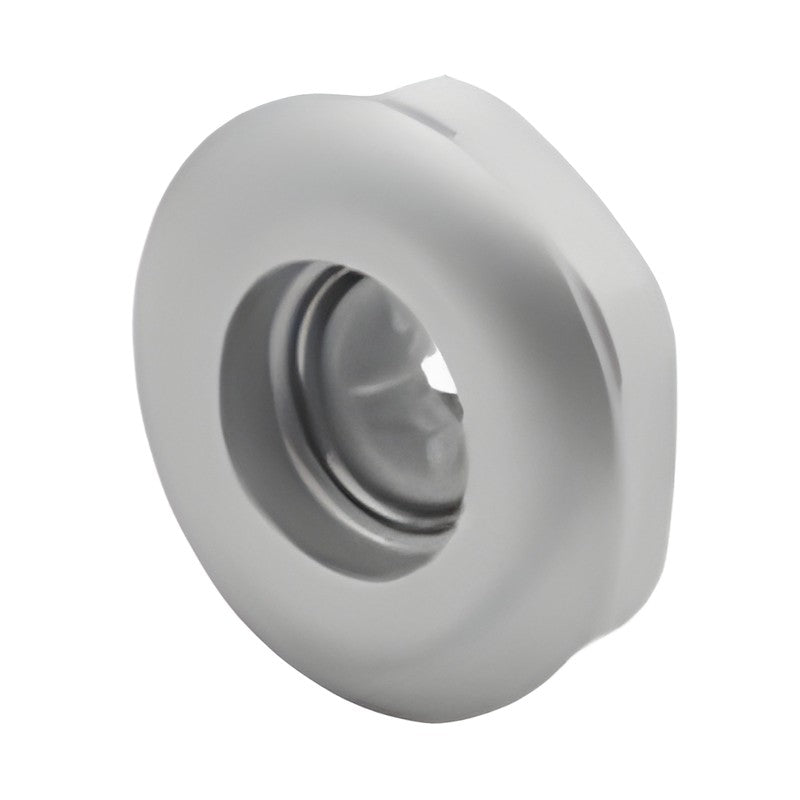

EAO Series 84 Illuminated Pushbuttons (22.5 mm)

Illuminated Pushbuttons for the EAO Series 84 (22.5 mm, Ø 25 mm front) HMI component range, listed by part number from the catalogue ordering tables.

Key features

EAO Series 84 modular system for a 22.5 mm mounting hole with clip-on rear units
Actuator options: Illuminated pushbutton, Pushbutton ring illum., illuminated, Pushbutton ring illum., multi-colour
Size options: Ø 40 mm, Ø 25 mm
Bezel / ring options: Aluminium natural, Plastic black, Aluminium black, Aluminium blue, Aluminium gold and more
Protection options: IP 67, IP 40
11 part numbers exactly as printed in the ordering tables

Specifications

Brand	EAO
Product family	Illuminated Pushbuttons
Series	EAO Series 84 (22.5 mm, Ø 25 mm front)
Mounting cut-out	Ø 22.5 mm with anti-twist device
Design	flush
Switching action	M
Catalogue	EAO Series 84 product information (05.2009)
Part numbers	11 printed codes
Source	EAO Series 84 product information (05.2009), p. 11-14

84-1221.7		Actuator: Illuminated pushbutton \| Size: Ø 40 mm \| Bezel / ring: Aluminium natural \| Protection: IP 67
84-2101.0		Actuator: Illuminated pushbutton \| Size: Ø 25 mm \| Bezel / ring: Plastic black \| Protection: IP 40
84-1201.0		Actuator: Illuminated pushbutton \| Size: Ø 25 mm \| Bezel / ring: Aluminium black \| Protection: IP 67
84-1201.6		Actuator: Illuminated pushbutton \| Size: Ø 25 mm \| Bezel / ring: Aluminium blue \| Protection: IP 67
84-1201.4		Actuator: Illuminated pushbutton \| Size: Ø 25 mm \| Bezel / ring: Aluminium gold \| Protection: IP 67
84-1201.7		Actuator: Illuminated pushbutton \| Size: Ø 25 mm \| Bezel / ring: Aluminium natural \| Protection: IP 67
84-1201.5		Actuator: Illuminated pushbutton \| Size: Ø 25 mm \| Bezel / ring: Aluminium olive-green \| Protection: IP 67
84-1201.2		Actuator: Illuminated pushbutton \| Size: Ø 25 mm \| Bezel / ring: Aluminium red \| Protection: IP 67
84-1101.0		Actuator: Illuminated pushbutton \| Size: Ø 25 mm \| Bezel / ring: Plastic black \| Protection: IP 67
84-1091.7		Actuator: Pushbutton ring illum., illuminated \| Size: Ø 25 mm \| Bezel / ring: Plastic translucent \| Protection: IP 67
84-1081.7		Actuator: Pushbutton ring illum., multi-colour \| Size: Ø 25 mm \| Bezel / ring: Plastic transparent \| Protection: IP 67

Illuminated PushbuttonsEAO

11 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 84 Illuminated Pushbuttons (22.5 mm)

Brand EAO·Illuminated Pushbuttons

Available part numbers (11)

84-1221.7, 84-2101.0, 84-1201.0, 84-1201.6, 84-1201.4, 84-1201.7, 84-1201.5, 84-1201.2, 84-1101.0, 84-1091.7 + 1 more — see full table ↓

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
