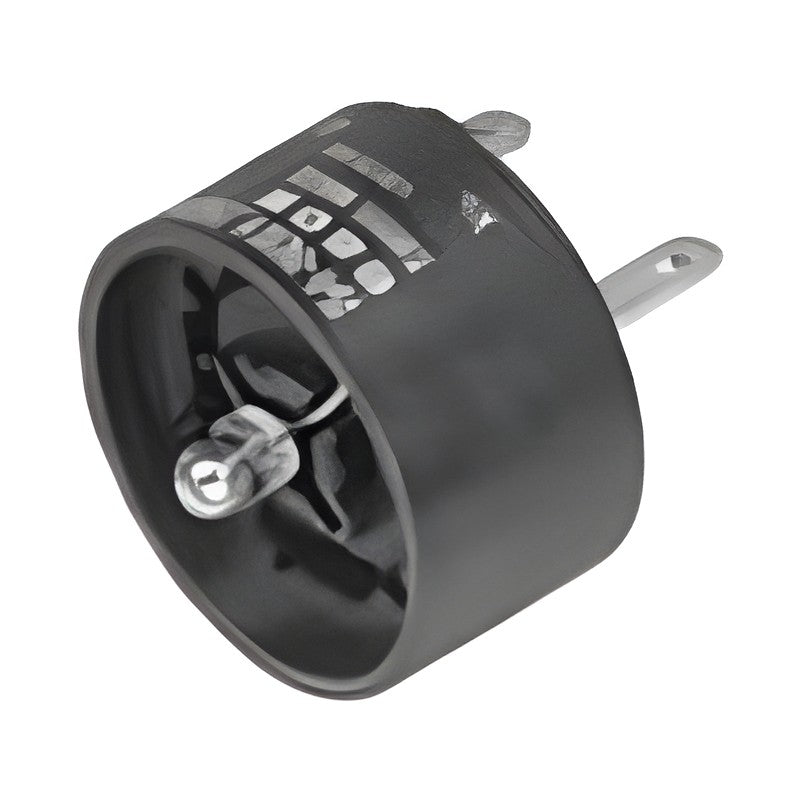

EAO Series 84 Illumination Elements (22.5 mm)

EAO Series 84 Illumination Elements (22.5 mm)

Illumination Elements for the EAO Series 84 (22.5 mm, Ø 25 mm front) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

  • EAO Series 84 modular system for a 22.5 mm mounting hole with clip-on rear units
  • Item options: Illum. element with LED + resistor, Illum. element with Bi-colour illum., Illum. element PCB mounting
  • Illumination options: Single-LED blue, Single-LED green, Single-LED orange, Single-LED red, Single-LED white and more
  • Voltage/current options: 12 VDC, 10 mA, 24 VDC, 10 mA, 24 VDC, 20 mA
  • Terminals options: FR, PT 2.8 s, P
  • 29 part numbers exactly as printed in the ordering tables

Specifications

Brand EAO
Product family Illumination Elements
Series EAO Series 84 (22.5 mm, Ø 25 mm front)
Mounting cut-out Ø 22.5 mm with anti-twist device
Catalogue EAO Series 84 product information (05.2009)
Part numbers 29 printed codes
Source EAO Series 84 product information (05.2009), p. 19-23
84-8001.6340 Item: Illum. element with LED + resistor | Illumination: Single-LED blue | Voltage/current: 12 VDC, 10 mA | Terminals: FR | Protection: IP 40 | Details: -
84-8001.6320 Item: Illum. element with LED + resistor | Illumination: Single-LED blue | Voltage/current: 12 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40 | Details: -
84-8001.6640 Item: Illum. element with LED + resistor | Illumination: Single-LED blue | Voltage/current: 24 VDC, 10 mA | Terminals: FR | Protection: IP 40 | Details: -
84-8001.6620 Item: Illum. element with LED + resistor | Illumination: Single-LED blue | Voltage/current: 24 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40 | Details: -
84-8001.5340 Item: Illum. element with LED + resistor | Illumination: Single-LED green | Voltage/current: 12 VDC, 10 mA | Terminals: FR | Protection: IP 40 | Details: -
84-8001.5320 Item: Illum. element with LED + resistor | Illumination: Single-LED green | Voltage/current: 12 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40 | Details: -
84-8001.5640 Item: Illum. element with LED + resistor | Illumination: Single-LED green | Voltage/current: 24 VDC, 10 mA | Terminals: FR | Protection: IP 40 | Details: -
84-8001.5620 Item: Illum. element with LED + resistor | Illumination: Single-LED green | Voltage/current: 24 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40 | Details: -
84-8001.3340 Item: Illum. element with LED + resistor | Illumination: Single-LED orange | Voltage/current: 12 VDC, 10 mA | Terminals: FR | Protection: IP 40 | Details: -
84-8001.3320 Item: Illum. element with LED + resistor | Illumination: Single-LED orange | Voltage/current: 12 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40 | Details: -
84-8001.3640 Item: Illum. element with LED + resistor | Illumination: Single-LED orange | Voltage/current: 24 VDC, 10 mA | Terminals: FR | Protection: IP 40 | Details: -
84-8001.3620 Item: Illum. element with LED + resistor | Illumination: Single-LED orange | Voltage/current: 24 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40 | Details: -
84-8001.2340 Item: Illum. element with LED + resistor | Illumination: Single-LED red | Voltage/current: 12 VDC, 10 mA | Terminals: FR | Protection: IP 40 | Details: -
84-8001.2320 Item: Illum. element with LED + resistor | Illumination: Single-LED red | Voltage/current: 12 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40 | Details: -
84-8001.2640 Item: Illum. element with LED + resistor | Illumination: Single-LED red | Voltage/current: 24 VDC, 10 mA | Terminals: FR | Protection: IP 40 | Details: -
84-8001.2620 Item: Illum. element with LED + resistor | Illumination: Single-LED red | Voltage/current: 24 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40 | Details: -
84-8001.9340 Item: Illum. element with LED + resistor | Illumination: Single-LED white | Voltage/current: 12 VDC, 10 mA | Terminals: FR | Protection: IP 40 | Details: -
84-8001.9320 Item: Illum. element with LED + resistor | Illumination: Single-LED white | Voltage/current: 12 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40 | Details: -
84-8001.9640 Item: Illum. element with LED + resistor | Illumination: Single-LED white | Voltage/current: 24 VDC, 10 mA | Terminals: FR | Protection: IP 40 | Details: -
84-8001.9620 Item: Illum. element with LED + resistor | Illumination: Single-LED white | Voltage/current: 24 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40 | Details: -
84-8001.4340 Item: Illum. element with LED + resistor | Illumination: Single-LED yellow | Voltage/current: 12 VDC, 10 mA | Terminals: FR | Protection: IP 40 | Details: -
84-8001.4320 Item: Illum. element with LED + resistor | Illumination: Single-LED yellow | Voltage/current: 12 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40 | Details: -
84-8001.4640 Item: Illum. element with LED + resistor | Illumination: Single-LED yellow | Voltage/current: 24 VDC, 10 mA | Terminals: FR | Protection: IP 40 | Details: -
84-8001.4620 Item: Illum. element with LED + resistor | Illumination: Single-LED yellow | Voltage/current: 24 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40 | Details: -
84-8005.8620 Item: Illum. element with Bi-colour illum. | Illumination: Bi-colour LED | Voltage/current: 24 VDC, 20 mA | Terminals: PT 2.8 s | Protection: IP 40 | Details: -
84-8005.8640 Item: Illum. element with Bi-colour illum. | Illumination: red/green | Voltage/current: 24 VDC, 20 mA | Terminals: FR | Protection: IP 67 | Details: -
84-8005.7620 Item: Illum. element with Bi-colour illum. | Illumination: Bi-colour LED | Voltage/current: 24 VDC, 20 mA | Terminals: PT 2.8 s | Protection: IP 40 | Details: -
84-8005.7640 Item: Illum. element with Bi-colour illum. | Illumination: yellow/green | Voltage/current: 24 VDC, 20 mA | Terminals: FR | Protection: IP 67 | Details: -
92-800.042 Item: Illum. element PCB mounting | Illumination: - | Voltage/current: - | Terminals: P | Protection: - | Details: 43
