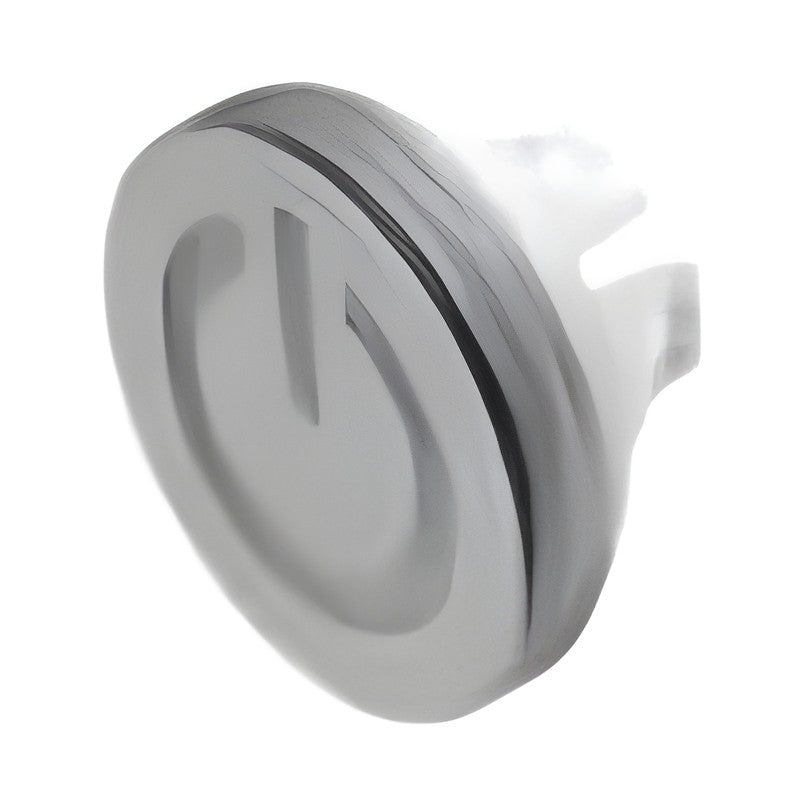

EAO Series 84 Lenses (22.5 mm)

Lenses for the EAO Series 84 (22.5 mm, Ø 25 mm front) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

EAO Series 84 modular system for a 22.5 mm mounting hole with clip-on rear units
Item options: Lens plastic flush - level, illuminative, Lens plastic flush - level, Lens plastic flush - raised, Lens plastic with symbol flush - level, Lens
Lens options: blue transparent, colourless transparent, green transparent, orange transparent, red transparent and more
Mounting type options: level with bezel, raised above bezel
Details options: ON/OFF, Ring, Stand by
72 part numbers exactly as printed in the ordering tables

Specifications

Brand	EAO
Product family	Lenses
Series	EAO Series 84 (22.5 mm, Ø 25 mm front)
Mounting cut-out	Ø 22.5 mm with anti-twist device
Size	Ø 25 mm
Catalogue	EAO Series 84 product information (05.2009)
Part numbers	72 printed codes
Source	EAO Series 84 product information (05.2009), p. 15-17

84-7111.600		Item: Lens plastic flush - level, illuminative \| Lens: blue transparent \| Mounting type: level with bezel \| Details: -
84-7111.700		Item: Lens plastic flush - level, illuminative \| Lens: colourless transparent \| Mounting type: level with bezel \| Details: -
84-7111.500		Item: Lens plastic flush - level, illuminative \| Lens: green transparent \| Mounting type: level with bezel \| Details: -
84-7111.300		Item: Lens plastic flush - level, illuminative \| Lens: orange transparent \| Mounting type: level with bezel \| Details: -
84-7111.200		Item: Lens plastic flush - level, illuminative \| Lens: red transparent \| Mounting type: level with bezel \| Details: -
84-7111.400		Item: Lens plastic flush - level, illuminative \| Lens: yellow transparent \| Mounting type: level with bezel \| Details: -
84-7121.000		Item: Lens plastic flush - level \| Lens: black opaque \| Mounting type: level with bezel \| Details: -
84-7121.800		Item: Lens plastic flush - level \| Lens: grey opaque \| Mounting type: level with bezel \| Details: -
84-7115.600		Item: Lens plastic flush - raised \| Lens: blue transparent \| Mounting type: raised above bezel \| Details: -
84-7115.700		Item: Lens plastic flush - raised \| Lens: colourless transparent \| Mounting type: raised above bezel \| Details: -
84-7115.500		Item: Lens plastic flush - raised \| Lens: green transparent \| Mounting type: raised above bezel \| Details: -
84-7115.300		Item: Lens plastic flush - raised \| Lens: orange transparent \| Mounting type: raised above bezel \| Details: -
84-7115.200		Item: Lens plastic flush - raised \| Lens: red transparent \| Mounting type: raised above bezel \| Details: -
84-7115.400		Item: Lens plastic flush - raised \| Lens: yellow transparent \| Mounting type: raised above bezel \| Details: -
84-7125.000		Item: Lens plastic flush - raised \| Lens: black opaque \| Mounting type: raised above bezel \| Details: -
84-7125.800		Item: Lens plastic flush - raised \| Lens: grey opaque \| Mounting type: raised above bezel \| Details: -
84-7111.602		Item: Lens plastic with symbol flush - level \| Lens: blue transparent \| Mounting type: level with bezel \| Details: ON/OFF
84-7111.702		Item: Lens plastic with symbol flush - level \| Lens: colourless transparent \| Mounting type: level with bezel \| Details: ON/OFF
84-7111.502		Item: Lens plastic with symbol flush - level \| Lens: green transparent \| Mounting type: level with bezel \| Details: ON/OFF
84-7111.202		Item: Lens plastic with symbol flush - level \| Lens: red transparent \| Mounting type: level with bezel \| Details: ON/OFF
84-7111.601		Item: Lens plastic with symbol flush - level \| Lens: blue transparent \| Mounting type: level with bezel \| Details: Ring
84-7111.701		Item: Lens plastic with symbol flush - level \| Lens: colourless transparent \| Mounting type: level with bezel \| Details: Ring
84-7111.501		Item: Lens plastic with symbol flush - level \| Lens: green transparent \| Mounting type: level with bezel \| Details: Ring
84-7111.301		Item: Lens plastic with symbol flush - level \| Lens: orange transparent \| Mounting type: level with bezel \| Details: Ring
84-7111.201		Item: Lens plastic with symbol flush - level \| Lens: red transparent \| Mounting type: level with bezel \| Details: Ring
84-7111.401		Item: Lens plastic with symbol flush - level \| Lens: yellow transparent \| Mounting type: level with bezel \| Details: Ring
84-7111.603		Item: Lens plastic with symbol flush - level \| Lens: blue transparent \| Mounting type: level with bezel \| Details: Stand by
84-7111.703		Item: Lens plastic with symbol flush - level \| Lens: colourless transparent \| Mounting type: level with bezel \| Details: Stand by
84-7111.503		Item: Lens plastic with symbol flush - level \| Lens: green transparent \| Mounting type: level with bezel \| Details: Stand by
84-7111.203		Item: Lens plastic with symbol flush - level \| Lens: red transparent \| Mounting type: level with bezel \| Details: Stand by
84-7202.000		Item: Lens metal convex - level \| Lens: Aluminium black \| Mounting type: level with bezel \| Details: -
84-7202.600		Item: Lens metal convex - level \| Lens: Aluminium blue \| Mounting type: level with bezel \| Details: -
84-7202.400		Item: Lens metal convex - level \| Lens: Aluminium gold \| Mounting type: level with bezel \| Details: -
84-7202.800		Item: Lens metal convex - level \| Lens: Aluminium natural \| Mounting type: level with bezel \| Details: -
84-7202.500		Item: Lens metal convex - level \| Lens: Aluminium olive-green \| Mounting type: level with bezel \| Details: -
84-7202.200		Item: Lens metal convex - level \| Lens: Aluminium red \| Mounting type: level with bezel \| Details: -
84-7201.000		Item: Lens metal flush - level \| Lens: Aluminium black \| Mounting type: level with bezel \| Details: -
84-7201.600		Item: Lens metal flush - level \| Lens: Aluminium blue \| Mounting type: level with bezel \| Details: -
84-7201.400		Item: Lens metal flush - level \| Lens: Aluminium gold \| Mounting type: level with bezel \| Details: -
84-7201.800		Item: Lens metal flush - level \| Lens: Aluminium natural \| Mounting type: level with bezel \| Details: -
84-7201.500		Item: Lens metal flush - level \| Lens: Aluminium olive-green \| Mounting type: level with bezel \| Details: -
84-7201.200		Item: Lens metal flush - level \| Lens: Aluminium red \| Mounting type: level with bezel \| Details: -
84-7205.000		Item: Lens metal flush - raised \| Lens: Aluminium black \| Mounting type: raised above bezel \| Details: -
84-7205.600		Item: Lens metal flush - raised \| Lens: Aluminium blue \| Mounting type: raised above bezel \| Details: -
84-7205.400		Item: Lens metal flush - raised \| Lens: Aluminium gold \| Mounting type: raised above bezel \| Details: -
84-7205.800		Item: Lens metal flush - raised \| Lens: Aluminium natural \| Mounting type: raised above bezel \| Details: -
84-7205.500		Item: Lens metal flush - raised \| Lens: Aluminium olive-green \| Mounting type: raised above bezel \| Details: -
84-7205.200		Item: Lens metal flush - raised \| Lens: Aluminium red \| Mounting type: raised above bezel \| Details: -
84-7202.000A		Item: Lens metal for Ring illum. convex - \| Lens: Aluminium black \| Mounting type: raised above bezel \| Details: -
84-7202.600A		Item: Lens metal for Ring illum. convex - \| Lens: Aluminium blue \| Mounting type: raised above bezel \| Details: -
84-7202.400A		Item: Lens metal for Ring illum. convex - \| Lens: Aluminium gold \| Mounting type: raised above bezel \| Details: -
84-7202.800A		Item: Lens metal for Ring illum. convex - \| Lens: Aluminium natural \| Mounting type: raised above bezel \| Details: -
84-7202.500B		Item: Lens metal for Ring illum. convex - \| Lens: Aluminium olive-green \| Mounting type: raised above bezel \| Details: -
84-7202.200A		Item: Lens metal for Ring illum. convex - \| Lens: Aluminium red \| Mounting type: raised above bezel \| Details: -
84-7205.000A		Item: Lens metal for Ring illum. flush - \| Lens: Aluminium black \| Mounting type: raised above bezel \| Details: -
84-7205.600A		Item: Lens metal for Ring illum. flush - \| Lens: Aluminium blue \| Mounting type: raised above bezel \| Details: -
84-7205.400A		Item: Lens metal for Ring illum. flush - \| Lens: Aluminium gold \| Mounting type: raised above bezel \| Details: -
84-7205.800A		Item: Lens metal for Ring illum. flush - \| Lens: Aluminium natural \| Mounting type: raised above bezel \| Details: -
84-7205.500A		Item: Lens metal for Ring illum. flush - \| Lens: Aluminium olive-green \| Mounting type: raised above bezel \| Details: -
84-7205.200A		Item: Lens metal for Ring illum. flush - \| Lens: Aluminium red \| Mounting type: raised above bezel \| Details: -
84-7211.000		Item: Lens metal with spot flush - level \| Lens: Aluminium black \| Mounting type: level with bezel \| Details: -
84-7211.600		Item: Lens metal with spot flush - level \| Lens: Aluminium blue \| Mounting type: level with bezel \| Details: -
84-7211.400		Item: Lens metal with spot flush - level \| Lens: Aluminium gold \| Mounting type: level with bezel \| Details: -
84-7211.800		Item: Lens metal with spot flush - level \| Lens: Aluminium natural \| Mounting type: level with bezel \| Details: -
84-7211.500		Item: Lens metal with spot flush - level \| Lens: Aluminium olive-green \| Mounting type: level with bezel \| Details: -
84-7211.200		Item: Lens metal with spot flush - level \| Lens: Aluminium red \| Mounting type: level with bezel \| Details: -
84-7215.000		Item: Lens metal with spot flush - raised \| Lens: Aluminium black \| Mounting type: raised above bezel \| Details: -
84-7215.600		Item: Lens metal with spot flush - raised \| Lens: Aluminium blue \| Mounting type: raised above bezel \| Details: -
84-7215.400		Item: Lens metal with spot flush - raised \| Lens: Aluminium gold \| Mounting type: raised above bezel \| Details: -
84-7215.800		Item: Lens metal with spot flush - raised \| Lens: Aluminium natural \| Mounting type: raised above bezel \| Details: -
84-7215.500		Item: Lens metal with spot flush - raised \| Lens: Aluminium olive-green \| Mounting type: raised above bezel \| Details: -
84-7215.200		Item: Lens metal with spot flush - raised \| Lens: Aluminium red \| Mounting type: raised above bezel \| Details: -

Pushbutton AccessoriesEAO

72 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 84 Lenses (22.5 mm)

Brand EAO·Pushbutton Accessories

Available part numbers (72)

84-7111.600, 84-7111.700, 84-7111.500, 84-7111.300, 84-7111.200, 84-7111.400, 84-7121.000, 84-7121.800, 84-7115.600, 84-7115.700 + 62 more — see full table ↓

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
