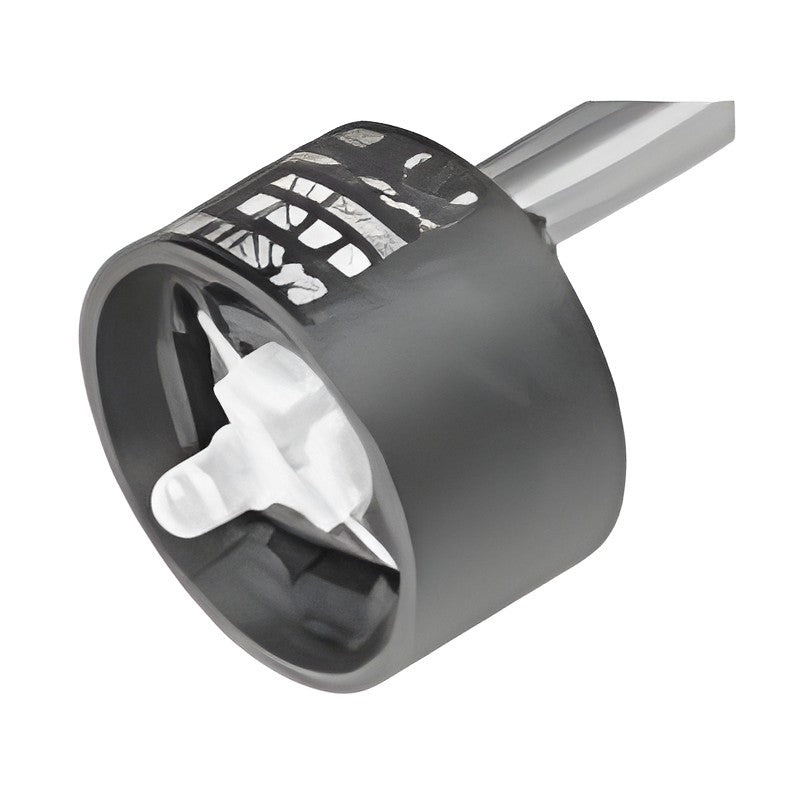

EAO Series 84 Switching Elements (22.5 mm)

EAO Series 84 Switching Elements (22.5 mm)

Switching Elements for the EAO Series 84 (22.5 mm, Ø 25 mm front) HMI component range, listed by part number from the accessories section of the catalogue.

Key features

  • EAO Series 84 modular system for a 22.5 mm mounting hole with clip-on rear units
  • Item options: Switching element illuminated with LED +, Switching element with Bi-colour illum., Switching element non-illuminated, Switching element PCB
  • Illumination options: Single-LED blue, Single-LED green, Single-LED orange, Single-LED red, Single-LED white and more
  • Voltage/current options: 12 VDC, 10 mA, 24 VDC, 10 mA, 24 VDC, 20 mA
  • Terminals options: FR, PT 2.8 s, P
  • 29 part numbers exactly as printed in the ordering tables

Specifications

Brand EAO
Product family Switching Elements
Series EAO Series 84 (22.5 mm, Ø 25 mm front)
Mounting cut-out Ø 22.5 mm with anti-twist device
Contacts 1 NO
Catalogue EAO Series 84 product information (05.2009)
Part numbers 29 printed codes
Source EAO Series 84 product information (05.2009), p. 21-23
84-8511.6340 Item: Switching element illuminated with LED + | Illumination: Single-LED blue | Voltage/current: 12 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.6320 Item: Switching element illuminated with LED + | Illumination: Single-LED blue | Voltage/current: 12 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.6640 Item: Switching element illuminated with LED + | Illumination: Single-LED blue | Voltage/current: 24 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.6620 Item: Switching element illuminated with LED + | Illumination: Single-LED blue | Voltage/current: 24 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.5340 Item: Switching element illuminated with LED + | Illumination: Single-LED green | Voltage/current: 12 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.5320 Item: Switching element illuminated with LED + | Illumination: Single-LED green | Voltage/current: 12 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.5640 Item: Switching element illuminated with LED + | Illumination: Single-LED green | Voltage/current: 24 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.5620 Item: Switching element illuminated with LED + | Illumination: Single-LED green | Voltage/current: 24 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.3340 Item: Switching element illuminated with LED + | Illumination: Single-LED orange | Voltage/current: 12 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.3320 Item: Switching element illuminated with LED + | Illumination: Single-LED orange | Voltage/current: 12 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.3640 Item: Switching element illuminated with LED + | Illumination: Single-LED orange | Voltage/current: 24 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.3620 Item: Switching element illuminated with LED + | Illumination: Single-LED orange | Voltage/current: 24 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.2340 Item: Switching element illuminated with LED + | Illumination: Single-LED red | Voltage/current: 12 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.2320 Item: Switching element illuminated with LED + | Illumination: Single-LED red | Voltage/current: 12 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.2640 Item: Switching element illuminated with LED + | Illumination: Single-LED red | Voltage/current: 24 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.2620 Item: Switching element illuminated with LED + | Illumination: Single-LED red | Voltage/current: 24 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.9340 Item: Switching element illuminated with LED + | Illumination: Single-LED white | Voltage/current: 12 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.9320 Item: Switching element illuminated with LED + | Illumination: Single-LED white | Voltage/current: 12 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.9640 Item: Switching element illuminated with LED + | Illumination: Single-LED white | Voltage/current: 24 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.9620 Item: Switching element illuminated with LED + | Illumination: Single-LED white | Voltage/current: 24 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.4340 Item: Switching element illuminated with LED + | Illumination: Single-LED yellow | Voltage/current: 12 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.4320 Item: Switching element illuminated with LED + | Illumination: Single-LED yellow | Voltage/current: 12 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.4640 Item: Switching element illuminated with LED + | Illumination: Single-LED yellow | Voltage/current: 24 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.4620 Item: Switching element illuminated with LED + | Illumination: Single-LED yellow | Voltage/current: 24 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8515.8640 Item: Switching element with Bi-colour illum. | Illumination: Bi-colour LED red/green | Voltage/current: 24 VDC, 20 mA | Terminals: FR | Protection: IP 67
84-8515.7640 Item: Switching element with Bi-colour illum. | Illumination: Bi-colour LED yellow/green | Voltage/current: 24 VDC, 20 mA | Terminals: FR | Protection: IP 67
84-8510.0040 Item: Switching element non-illuminated | Illumination: - | Voltage/current: - | Terminals: FR | Protection: IP 40
84-8510.0020 Item: Switching element non-illuminated | Illumination: - | Voltage/current: - | Terminals: PT 2.8 s | Protection: IP 40
92-851.342 Item: Switching element PCB mounting | Illumination: - | Voltage/current: - | Terminals: P | Protection: -
Pushbutton AccessoriesEAO
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EAO Series 84 Switching Elements (22.5 mm)

Brand EAO·Pushbutton Accessories

Available part numbers (29)

84-8511.6340, 84-8511.6320, 84-8511.6640, 84-8511.6620, 84-8511.5340, 84-8511.5320, 84-8511.5640, 84-8511.5620, 84-8511.3340, 84-8511.3320 + 19 more — see full table ↓

How to order

Send the EAO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
84-8511.6340Item: Switching element illuminated with LED + | Illumination: Single-LED blue | Voltage/current: 12 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.6320Item: Switching element illuminated with LED + | Illumination: Single-LED blue | Voltage/current: 12 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.6640Item: Switching element illuminated with LED + | Illumination: Single-LED blue | Voltage/current: 24 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.6620Item: Switching element illuminated with LED + | Illumination: Single-LED blue | Voltage/current: 24 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.5340Item: Switching element illuminated with LED + | Illumination: Single-LED green | Voltage/current: 12 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.5320Item: Switching element illuminated with LED + | Illumination: Single-LED green | Voltage/current: 12 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.5640Item: Switching element illuminated with LED + | Illumination: Single-LED green | Voltage/current: 24 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.5620Item: Switching element illuminated with LED + | Illumination: Single-LED green | Voltage/current: 24 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.3340Item: Switching element illuminated with LED + | Illumination: Single-LED orange | Voltage/current: 12 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.3320Item: Switching element illuminated with LED + | Illumination: Single-LED orange | Voltage/current: 12 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.3640Item: Switching element illuminated with LED + | Illumination: Single-LED orange | Voltage/current: 24 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.3620Item: Switching element illuminated with LED + | Illumination: Single-LED orange | Voltage/current: 24 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.2340Item: Switching element illuminated with LED + | Illumination: Single-LED red | Voltage/current: 12 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.2320Item: Switching element illuminated with LED + | Illumination: Single-LED red | Voltage/current: 12 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.2640Item: Switching element illuminated with LED + | Illumination: Single-LED red | Voltage/current: 24 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.2620Item: Switching element illuminated with LED + | Illumination: Single-LED red | Voltage/current: 24 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.9340Item: Switching element illuminated with LED + | Illumination: Single-LED white | Voltage/current: 12 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.9320Item: Switching element illuminated with LED + | Illumination: Single-LED white | Voltage/current: 12 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.9640Item: Switching element illuminated with LED + | Illumination: Single-LED white | Voltage/current: 24 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.9620Item: Switching element illuminated with LED + | Illumination: Single-LED white | Voltage/current: 24 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.4340Item: Switching element illuminated with LED + | Illumination: Single-LED yellow | Voltage/current: 12 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.4320Item: Switching element illuminated with LED + | Illumination: Single-LED yellow | Voltage/current: 12 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8511.4640Item: Switching element illuminated with LED + | Illumination: Single-LED yellow | Voltage/current: 24 VDC, 10 mA | Terminals: FR | Protection: IP 40
84-8511.4620Item: Switching element illuminated with LED + | Illumination: Single-LED yellow | Voltage/current: 24 VDC, 10 mA | Terminals: PT 2.8 s | Protection: IP 40
84-8515.8640Item: Switching element with Bi-colour illum. | Illumination: Bi-colour LED red/green | Voltage/current: 24 VDC, 20 mA | Terminals: FR | Protection: IP 67
84-8515.7640Item: Switching element with Bi-colour illum. | Illumination: Bi-colour LED yellow/green | Voltage/current: 24 VDC, 20 mA | Terminals: FR | Protection: IP 67
84-8510.0040Item: Switching element non-illuminated | Illumination: - | Voltage/current: - | Terminals: FR | Protection: IP 40
84-8510.0020Item: Switching element non-illuminated | Illumination: - | Voltage/current: - | Terminals: PT 2.8 s | Protection: IP 40
92-851.342Item: Switching element PCB mounting | Illumination: - | Voltage/current: - | Terminals: P | Protection: -
