• FAG ARCA-GREASE-GUN Lever Grease Gun and Hoses
1 1

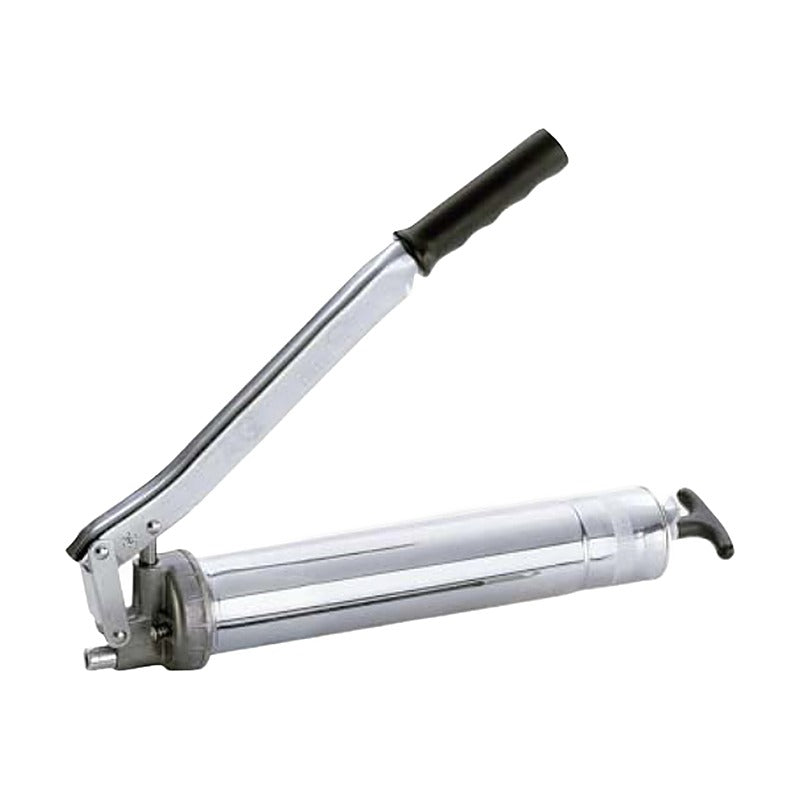

FAG ARCA-GREASE-GUN Lever Grease Gun and Hoses

FAG ARCA-GREASE-GUN Lever Grease Gun and Hoses

The FAG ARCA-GREASE-GUN lever grease gun achieves high lubrication pressures with 400 g cartridges or loose grease, with TWIN-LOCK and EVER-FLOW systems.

Key features

  • TWIN-LOCK system protects the piston guide against wear
  • EVER-FLOW system works with highly viscous grease and low temperatures
  • 400 g cartridges or 500 cm3 loose grease up to NLGI 3
  • Hoses with 4 jaw nozzle or slide coupling available

Specifications

Operating pressure 400 bar
Delivery rate 1.9 cm3/stroke
Thread G1/8
Source Schaeffler Lubricators TPI 252, p. 72-75
ARCA-GREASE-GUN Order no.: 039064115-0000-10 | Type: Lever grease gun | Pressure pipe: 296 mm, zinc-coated steel
ARCA-GREASE-GUN.HOSE Order no.: 039064123-0000-10 | Type: Hose 300 mm, 4 jaw nozzle | Nipple: DIN 71412 taper type
ARCA-GREASE-GUN.HOOK-ON-HOSE Order no.: 039697010-0000-10 | Type: Hose 300 mm, slide coupling F | Nipple: DIN 3404-16 button head
LubricatorsFAG
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG ARCA-GREASE-GUN Lever Grease Gun and Hoses

Brand FAG·Lubricators

Available part numbers (3)

ARCA-GREASE-GUN, ARCA-GREASE-GUN.HOSE, ARCA-GREASE-GUN.HOOK-ON-HOSE

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ARCA-GREASE-GUNOrder no.: 039064115-0000-10 | Type: Lever grease gun | Pressure pipe: 296 mm, zinc-coated steel
ARCA-GREASE-GUN.HOSEOrder no.: 039064123-0000-10 | Type: Hose 300 mm, 4 jaw nozzle | Nipple: DIN 71412 taper type
ARCA-GREASE-GUN.HOOK-ON-HOSEOrder no.: 039697010-0000-10 | Type: Hose 300 mm, slide coupling F | Nipple: DIN 3404-16 button head
