• FAG ARCA-PUMP-BARREL Grease Pistols, Nozzles and Transport Aids
1 1

FAG ARCA-PUMP-BARREL Grease Pistols, Nozzles and Transport Aids

FAG ARCA-PUMP-BARREL Grease Pistols, Nozzles and Transport Aids

Grease pistols, nozzle accessories and transport aids for FAG ARCA-PUMP-BARREL drum pumps, including a metering pistol grease gun with digital flow rate measurement.

Key features

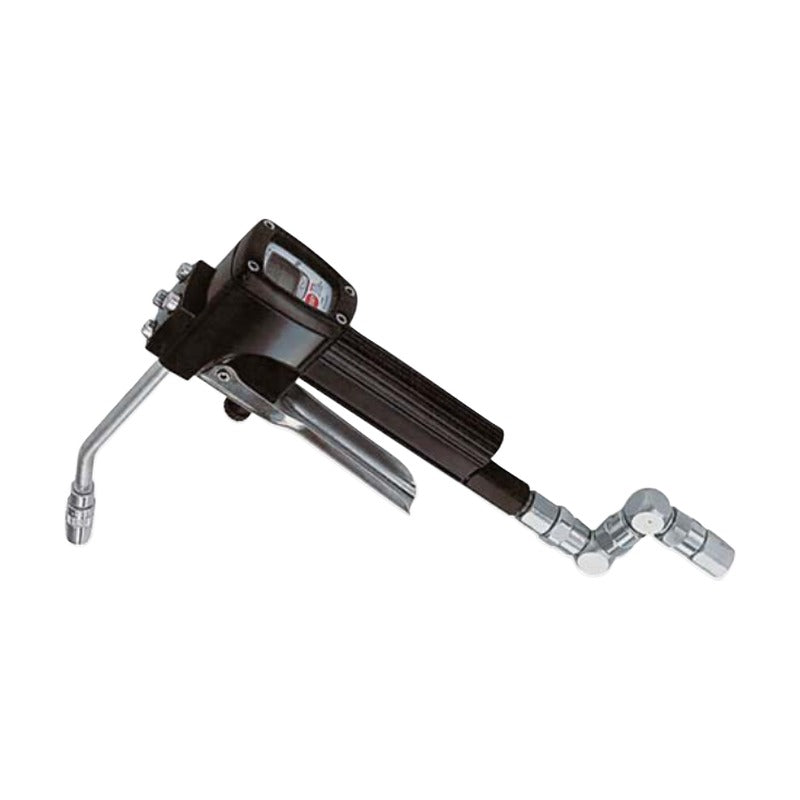

  • Metering pistol displays grease quantity to 0.1 g (max. 999 g)
  • Grease pistols with 400 mm hose or 150 mm pipe
  • 4 jaw nozzle and slide couplings for button head nipples
  • Carry grip and trolleys for containers and drums

Specifications

System ARCA-PUMP-BARREL
Source Schaeffler Lubricators TPI 252, p. 80-82
ARCA-PUMP-BARREL.GUN-METER Order no.: 065353269-0000-10 | Type: Metering pistol grease gun | Detail: 550 bar, 2.5 kg/min, 3% accuracy
ARCA-PUMP-BARREL.GUN-H Order no.: 065353617-0000-10 | Type: Grease pistol | Detail: Hose 400 mm, 4 jaw nozzle
ARCA-PUMP-BARREL.GUN-P Order no.: 065353323-0000-10 | Type: Grease pistol | Detail: Pipe 150 mm, 4 jaw nozzle
ARCA-PUMP-BARREL-S.GUN-HOSE Order no.: 077464478-0000-10 | Type: Hose | Detail: 400 mm, M10x1 both sides
ARCA-PUMP-BARREL-S.GUN-PIPE Order no.: 077464648-0000-10 | Type: Nozzle tube | Detail: 150 mm, M10x1 both sides
ARCA-PUMP-BARREL-S.FIT-4-JAWS Order no.: 077465130-0000-10 | Type: 4 jaw nozzle | Detail: Taper type nipples
ARCA-PUMP-BARREL-S.FIT-HEX16 Order no.: 077590465-0000-10 | Type: Slide coupling, pulling | Detail: Button head 16 mm
ARCA-PUMP-BARREL-S.FIT-HEX16P Order no.: 077590600-0000-10 | Type: Slide coupling, insertion | Detail: Button head 16 mm
ARCA-PUMP-BARREL-S.HANDLE Order no.: 065353803-0000-10 | Type: Carry grip for drum pumps | Detail: 0.6 kg
ARCA-PUMP-BARREL-25-S.TROLLEY Order no.: 077464036-0000-10 | Type: Trolley for containers 20-60 kg | Detail: 5.9 kg
ARCA-PUMP-BARREL-50-S.TROLLEY Order no.: 074444239-0000-10 | Type: Trolley for drums to 410 mm | Detail: 13.7 kg
LubricatorsFAG
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG ARCA-PUMP-BARREL Grease Pistols, Nozzles and Transport Aids

Brand FAG·Lubricators

Available part numbers (11)

ARCA-PUMP-BARREL.GUN-METER, ARCA-PUMP-BARREL.GUN-H, ARCA-PUMP-BARREL.GUN-P, ARCA-PUMP-BARREL-S.GUN-HOSE, ARCA-PUMP-BARREL-S.GUN-PIPE, ARCA-PUMP-BARREL-S.FIT-4-JAWS, ARCA-PUMP-BARREL-S.FIT-HEX16, ARCA-PUMP-BARREL-S.FIT-HEX16P, ARCA-PUMP-BARREL-S.HANDLE, ARCA-PUMP-BARREL-25-S.TROLLEY + 1 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ARCA-PUMP-BARREL.GUN-METEROrder no.: 065353269-0000-10 | Type: Metering pistol grease gun | Detail: 550 bar, 2.5 kg/min, 3% accuracy
ARCA-PUMP-BARREL.GUN-HOrder no.: 065353617-0000-10 | Type: Grease pistol | Detail: Hose 400 mm, 4 jaw nozzle
ARCA-PUMP-BARREL.GUN-POrder no.: 065353323-0000-10 | Type: Grease pistol | Detail: Pipe 150 mm, 4 jaw nozzle
ARCA-PUMP-BARREL-S.GUN-HOSEOrder no.: 077464478-0000-10 | Type: Hose | Detail: 400 mm, M10x1 both sides
ARCA-PUMP-BARREL-S.GUN-PIPEOrder no.: 077464648-0000-10 | Type: Nozzle tube | Detail: 150 mm, M10x1 both sides
ARCA-PUMP-BARREL-S.FIT-4-JAWSOrder no.: 077465130-0000-10 | Type: 4 jaw nozzle | Detail: Taper type nipples
ARCA-PUMP-BARREL-S.FIT-HEX16Order no.: 077590465-0000-10 | Type: Slide coupling, pulling | Detail: Button head 16 mm
ARCA-PUMP-BARREL-S.FIT-HEX16POrder no.: 077590600-0000-10 | Type: Slide coupling, insertion | Detail: Button head 16 mm
ARCA-PUMP-BARREL-S.HANDLEOrder no.: 065353803-0000-10 | Type: Carry grip for drum pumps | Detail: 0.6 kg
ARCA-PUMP-BARREL-25-S.TROLLEYOrder no.: 077464036-0000-10 | Type: Trolley for containers 20-60 kg | Detail: 5.9 kg
ARCA-PUMP-BARREL-50-S.TROLLEYOrder no.: 074444239-0000-10 | Type: Trolley for drums to 410 mm | Detail: 13.7 kg
