FAG ARCALUB Chain Lubrication Pinions, Simplex and Duplex

FAG ARCALUB Chain Lubrication Pinions, Simplex and Duplex

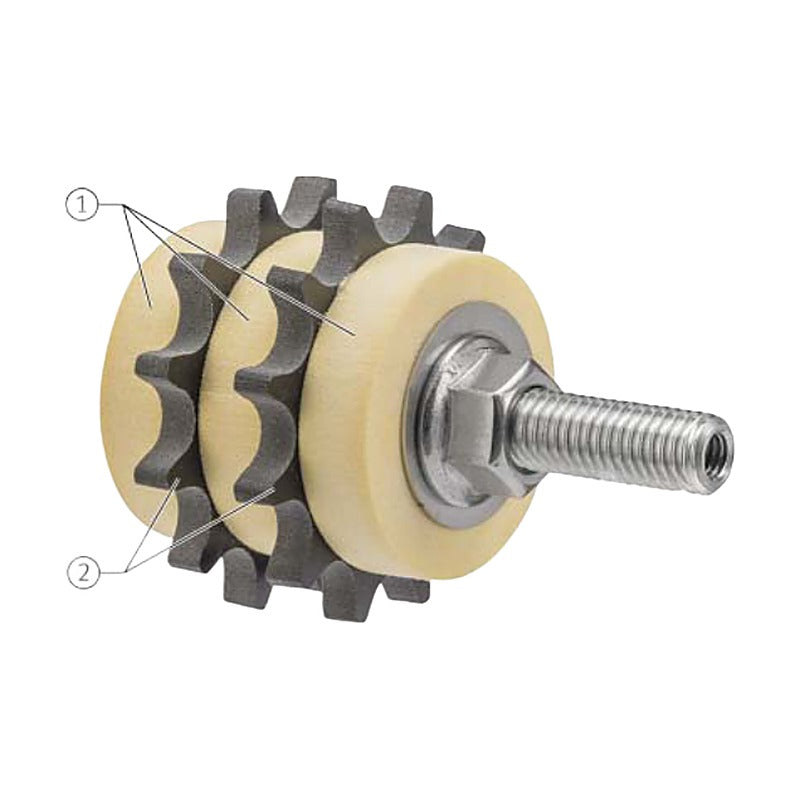

FAG ARCALUB chain lubrication pinions supply chains with oil automatically via open cell PU foam rollers carried in a plastic chain pinion.

Key features

  • PU foam rollers transfer oil to the chain link gaps
  • Plastic pinion runs quietly even at high speed
  • Automatic optimum contact force, no slippage
  • Simplex and duplex designs; axial, radial or spring plate feed
  • Max. circumferential speed 7 m/s

Specifications

Operating temperature -30 to +150 C
Lubricant Oil
Max. speed 7 m/s
Source Schaeffler Lubricators TPI 252, p. 60-65
ARCALUB-X.CHAIN-PINION-08AB1-Z12-G Order no.: 093283490-0000-10 | Chain (ISO 606): 08 A/B-1 | Design: Simplex | Teeth: 12 | Feed: Axial
ARCALUB-X.CHAIN-PINION-08AB1-Z12-W Order no.: 093283504-0000-10 | Chain (ISO 606): 08 A/B-1 | Design: Simplex | Teeth: 12 | Feed: Radial
ARCALUB-X.CHAIN-PINION-08AB1-Z12-WF Order no.: 093283512-0000-10 | Chain (ISO 606): 08 A/B-1 | Design: Simplex | Teeth: 12 | Feed: Radial, spring plate
ARCALUB-X.CHAIN-PINION-10AB1-Z10-G Order no.: 093283547-0000-10 | Chain (ISO 606): 10 A/B-1 | Design: Simplex | Teeth: 10 | Feed: Axial
ARCALUB-X.CHAIN-PINION-10AB1-Z10-W Order no.: 093283555-0000-10 | Chain (ISO 606): 10 A/B-1 | Design: Simplex | Teeth: 10 | Feed: Radial
ARCALUB-X.CHAIN-PINION-10AB1-Z10-WF Order no.: 093283563-0000-10 | Chain (ISO 606): 10 A/B-1 | Design: Simplex | Teeth: 10 | Feed: Radial, spring plate
ARCALUB-X.CHAIN-PINION-12B1-Z8-G Order no.: 093283601-0000-10 | Chain (ISO 606): 12 B-1 | Design: Simplex | Teeth: 8 | Feed: Axial
ARCALUB-X.CHAIN-PINION-12B1-Z8-W Order no.: 093283610-0000-10 | Chain (ISO 606): 12 B-1 | Design: Simplex | Teeth: 8 | Feed: Radial
ARCALUB-X.CHAIN-PINION-16B1-Z8-G Order no.: 093283652-0000-10 | Chain (ISO 606): 16 B-1 | Design: Simplex | Teeth: 8 | Feed: Axial
ARCALUB-X.CHAIN-PINION-16B1-Z8-W Order no.: 093283660-0000-10 | Chain (ISO 606): 16 B-1 | Design: Simplex | Teeth: 8 | Feed: Radial
ARCALUB-X.CHAIN-PINION-16B1-Z8-WF Order no.: 093283679-0000-10 | Chain (ISO 606): 16 B-1 | Design: Simplex | Teeth: 8 | Feed: Radial, spring plate
ARCALUB-X.CHAIN-PINION-08AB2-Z12-G Order no.: 093283520-0000-10 | Chain (ISO 606): 08 A/B-2 | Design: Duplex | Teeth: 12 | Feed: Axial
ARCALUB-X.CHAIN-PINION-08AB2-Z12-W Order no.: 093283539-0000-10 | Chain (ISO 606): 08 A/B-2 | Design: Duplex | Teeth: 12 | Feed: Radial
ARCALUB-X.CHAIN-PINION-10AB2-Z10-G Order no.: 093283571-0000-10 | Chain (ISO 606): 10 A/B-2 | Design: Duplex | Teeth: 10 | Feed: Axial
ARCALUB-X.CHAIN-PINION-10AB2-Z10-W Order no.: 093283580-0000-10 | Chain (ISO 606): 10 A/B-2 | Design: Duplex | Teeth: 10 | Feed: Radial
ARCALUB-X.CHAIN-PINION-10AB2-Z10-WF Order no.: 093283598-0000-10 | Chain (ISO 606): 10 A/B-2 | Design: Duplex | Teeth: 10 | Feed: Radial, spring plate
ARCALUB-X.CHAIN-PINION-12B2-Z8-G Order no.: 093283628-0000-10 | Chain (ISO 606): 12 B-2 | Design: Duplex | Teeth: 8 | Feed: Axial
ARCALUB-X.CHAIN-PINION-12B2-Z8-W Order no.: 093283636-0000-10 | Chain (ISO 606): 12 B-2 | Design: Duplex | Teeth: 8 | Feed: Radial
ARCALUB-X.CHAIN-PINION-12B2-Z8-WF Order no.: 093283644-0000-10 | Chain (ISO 606): 12 B-2 | Design: Duplex | Teeth: 8 | Feed: Radial, spring plate
ARCALUB-X.CHAIN-PINION-16B2-Z8-G Order no.: 093283687-0000-10 | Chain (ISO 606): 16 B-2 | Design: Duplex | Teeth: 8 | Feed: Axial
ARCALUB-X.CHAIN-PINION-16B2-Z8-W Order no.: 093283695-0000-10 | Chain (ISO 606): 16 B-2 | Design: Duplex | Teeth: 8 | Feed: Radial
ARCALUB-X.CHAIN-PINION-16B2-Z8-WF Order no.: 093283709-0000-10 | Chain (ISO 606): 16 B-2 | Design: Duplex | Teeth: 8 | Feed: Radial, spring plate
LubricatorsFAG
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG ARCALUB Chain Lubrication Pinions, Simplex and Duplex

Brand FAG·Lubricators

Available part numbers (22)

ARCALUB-X.CHAIN-PINION-08AB1-Z12-G, ARCALUB-X.CHAIN-PINION-08AB1-Z12-W, ARCALUB-X.CHAIN-PINION-08AB1-Z12-WF, ARCALUB-X.CHAIN-PINION-10AB1-Z10-G, ARCALUB-X.CHAIN-PINION-10AB1-Z10-W, ARCALUB-X.CHAIN-PINION-10AB1-Z10-WF, ARCALUB-X.CHAIN-PINION-12B1-Z8-G, ARCALUB-X.CHAIN-PINION-12B1-Z8-W, ARCALUB-X.CHAIN-PINION-16B1-Z8-G, ARCALUB-X.CHAIN-PINION-16B1-Z8-W + 12 more — see full table ↓
