FAG ARCALUB Lubrication Hoses (PA12, PA6.6) and Hose Cutter

FAG ARCALUB Lubrication Hoses (PA12, PA6.6) and Hose Cutter

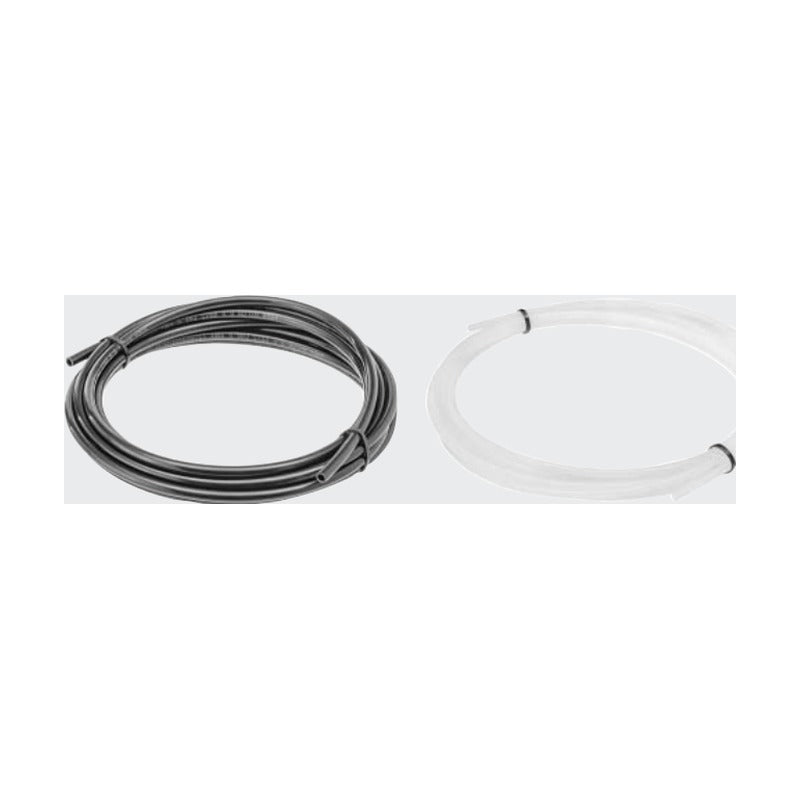

FAG ARCALUB polyamide hoses for grease and oil lubrication lines, suitable for drag chains, plus a hose cutter for secure pressure-tight connections.

Key features

  • Black PA12 / PA6.6 hoses for grease lubrication
  • Transparent PA12 hoses for oil lubrication
  • Suitable for drag chain use, supplied unfilled
  • Hose cutter ensures secure, pressure-tight connection

Specifications

Operating temperature -20 to +80 C
Compressive strength 90 bar at 20 C, 35 bar at 80 C
Source Schaeffler Lubricators TPI 252, p. 50-51
ARCALUB-X.HOSE-4X2,5-PA12-5M Order no.: 093041241-0000-10 | Hose D1 x D2: 4 x 2.5 mm | Material: PA12, black | Length: 5 m
ARCALUB-X.HOSE-4X2,5-PA12-10M Order no.: 093041195-0000-10 | Hose D1 x D2: 4 x 2.5 mm | Material: PA12, black | Length: 10 m
ARCALUB-X.HOSE-PA12-5M Order no.: 076691217-0000-10 | Hose D1 x D2: 6 x 4 mm | Material: PA12, black | Length: 5 m
ARCALUB-X.HOSE-PA12-10M Order no.: 076691497-0000-10 | Hose D1 x D2: 6 x 4 mm | Material: PA12, black | Length: 10 m
ARCALUB-X.HOSE-PA12-50M Order no.: 085842109-0000-10 | Hose D1 x D2: 6 x 4 mm | Material: PA12, black | Length: 50 m
ARCALUB-X.HOSE-PA66-5M Order no.: 083788573-0000-10 | Hose D1 x D2: 8 x 5 mm | Material: PA6.6, black | Length: 5 m
ARCALUB-X.HOSE-PA66-10M Order no.: 083788581-0000-10 | Hose D1 x D2: 8 x 5 mm | Material: PA6.6, black | Length: 10 m
ARCALUB-X.HOSE-PA66-50M Order no.: 083788603-0000-10 | Hose D1 x D2: 8 x 5 mm | Material: PA6.6, black | Length: 50 m
ARCALUB-X.HOSE-PA12-CLEAR-5M Order no.: 075526336-0000-10 | Hose D1 x D2: 6 x 3 mm | Material: PA12, transparent (oil) | Length: 5 m
ARCALUB-X.HOSE-PA12-CLEAR-10M Order no.: 083788441-0000-10 | Hose D1 x D2: 6 x 3 mm | Material: PA12, transparent (oil) | Length: 10 m
ARCALUB-X.HOSE-PA12-CLEAR-25M Order no.: 075527251-0000-10 | Hose D1 x D2: 6 x 3 mm | Material: PA12, transparent (oil) | Length: 25 m
ARCALUB-X.HOSE-PA12-CLEAR-1000M Order no.: 092515851-0000-10 | Hose D1 x D2: 6 x 3 mm | Material: PA12, transparent (oil) | Length: 1 000 m
ARCALUB-X.HOSE-CUTTOOL Order no.: 083788620-0000-10 | Type: Hose cutting tool
LubricatorsFAG
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG ARCALUB Lubrication Hoses (PA12, PA6.6) and Hose Cutter

Brand FAG·Lubricators

Available part numbers (13)

ARCALUB-X.HOSE-4X2,5-PA12-5M, ARCALUB-X.HOSE-4X2,5-PA12-10M, ARCALUB-X.HOSE-PA12-5M, ARCALUB-X.HOSE-PA12-10M, ARCALUB-X.HOSE-PA12-50M, ARCALUB-X.HOSE-PA66-5M, ARCALUB-X.HOSE-PA66-10M, ARCALUB-X.HOSE-PA66-50M, ARCALUB-X.HOSE-PA12-CLEAR-5M, ARCALUB-X.HOSE-PA12-CLEAR-10M + 3 more — see full table ↓

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ARCALUB-X.HOSE-4X2,5-PA12-5MOrder no.: 093041241-0000-10 | Hose D1 x D2: 4 x 2.5 mm | Material: PA12, black | Length: 5 m
ARCALUB-X.HOSE-4X2,5-PA12-10MOrder no.: 093041195-0000-10 | Hose D1 x D2: 4 x 2.5 mm | Material: PA12, black | Length: 10 m
ARCALUB-X.HOSE-PA12-5MOrder no.: 076691217-0000-10 | Hose D1 x D2: 6 x 4 mm | Material: PA12, black | Length: 5 m
ARCALUB-X.HOSE-PA12-10MOrder no.: 076691497-0000-10 | Hose D1 x D2: 6 x 4 mm | Material: PA12, black | Length: 10 m
ARCALUB-X.HOSE-PA12-50MOrder no.: 085842109-0000-10 | Hose D1 x D2: 6 x 4 mm | Material: PA12, black | Length: 50 m
ARCALUB-X.HOSE-PA66-5MOrder no.: 083788573-0000-10 | Hose D1 x D2: 8 x 5 mm | Material: PA6.6, black | Length: 5 m
ARCALUB-X.HOSE-PA66-10MOrder no.: 083788581-0000-10 | Hose D1 x D2: 8 x 5 mm | Material: PA6.6, black | Length: 10 m
ARCALUB-X.HOSE-PA66-50MOrder no.: 083788603-0000-10 | Hose D1 x D2: 8 x 5 mm | Material: PA6.6, black | Length: 50 m
ARCALUB-X.HOSE-PA12-CLEAR-5MOrder no.: 075526336-0000-10 | Hose D1 x D2: 6 x 3 mm | Material: PA12, transparent (oil) | Length: 5 m
ARCALUB-X.HOSE-PA12-CLEAR-10MOrder no.: 083788441-0000-10 | Hose D1 x D2: 6 x 3 mm | Material: PA12, transparent (oil) | Length: 10 m
ARCALUB-X.HOSE-PA12-CLEAR-25MOrder no.: 075527251-0000-10 | Hose D1 x D2: 6 x 3 mm | Material: PA12, transparent (oil) | Length: 25 m
ARCALUB-X.HOSE-PA12-CLEAR-1000MOrder no.: 092515851-0000-10 | Hose D1 x D2: 6 x 3 mm | Material: PA12, transparent (oil) | Length: 1 000 m
ARCALUB-X.HOSE-CUTTOOLOrder no.: 083788620-0000-10 | Type: Hose cutting tool
