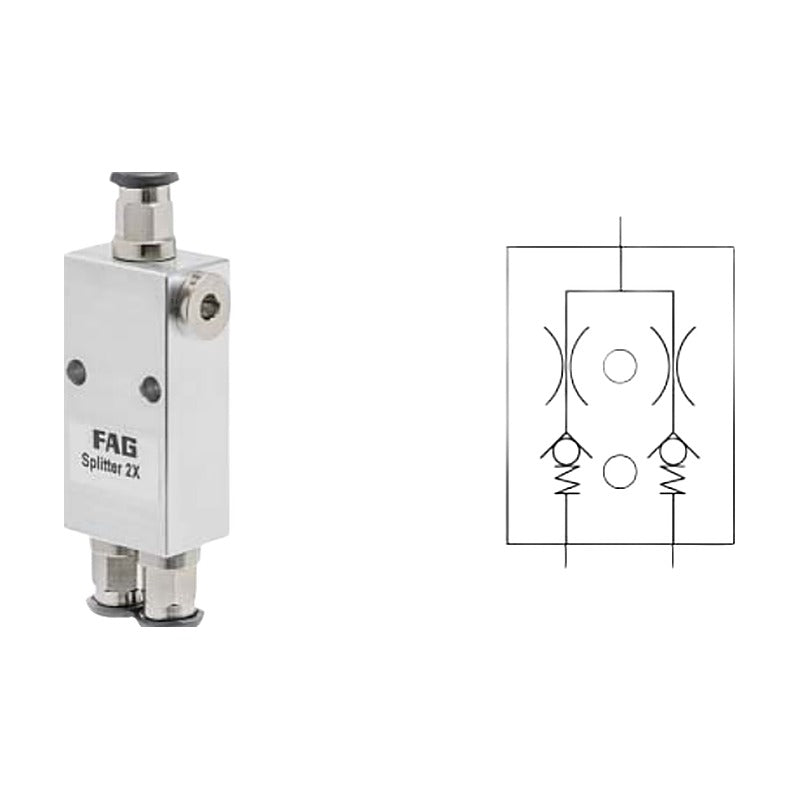

FAG ARCALUB Splitters and Progressive Distributor

FAG ARCALUB Splitters and Progressive Distributor

FAG ARCALUB splitters divide a lubricator outlet into two uniform flows, and progressive distributors split delivery consecutively to several outlets.

Key features

  • Splitters with choke for uniform distribution to 2 outlets
  • Progressive distributor with 3 outlets, 0.025 cm3 metering
  • Aluminium housing, nickel-plated brass connectors
  • Supplied with M10x1 connection fittings for 6 mm hose

Specifications

Operating pressure up to 10 bar (max. 100 bar)
Metering accuracy 10%
Housing Aluminium
Source Schaeffler Lubricators TPI 252, p. 38-41
ARCALUB-X.SPLITTER-2X-STRAIGHT-GREASE Order no.: 081307497-0000-10 | Medium: Grease | Hose: 6 mm | Outlets: 2
ARCALUB-X.SPLITTER-2X-STRAIGHT-OIL Order no.: 074969218-0000-10 | Medium: Oil | Hose: 6 mm | Outlets: 2
ARCALUB-X.PROGDIV-3X-RIGHT-0.05CCM Order no.: 093204060-0000-10 | Type: TS3-25 | Metering: 0.025 cm3 | Outlets: 3
LubricatorsFAG
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG ARCALUB Splitters and Progressive Distributor

Brand FAG·Lubricators

Available part numbers (3)

ARCALUB-X.SPLITTER-2X-STRAIGHT-GREASE, ARCALUB-X.SPLITTER-2X-STRAIGHT-OIL, ARCALUB-X.PROGDIV-3X-RIGHT-0.05CCM

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
