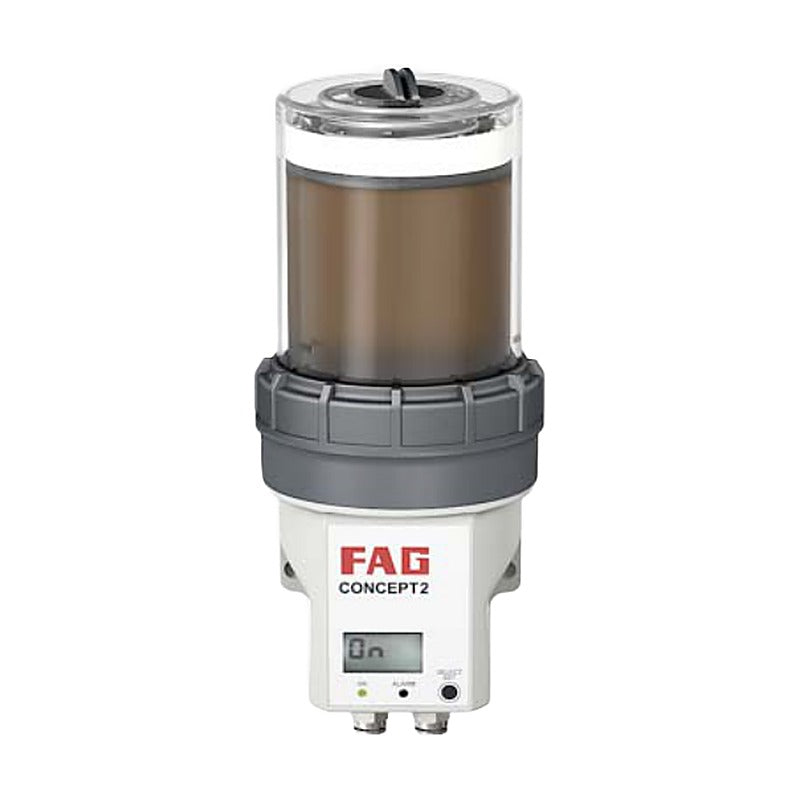

FAG CONCEPT2 Automatic Lubricators (ARCALUB-C2, 2 Outlets)

FAG CONCEPT2 Automatic Lubricators (ARCALUB-C2, 2 Outlets)

The FAG CONCEPT2 is an automatic, pulse-controlled lubricator with two independently operating piston pumps for grease or oil, powered by battery or DC 24 V.

Key features

  • Two piston pumps, 0.15 cm3 per lubrication cycle
  • Programmable pause times 25-925 min (internal) or via PLC
  • Battery (30 bar) or DC 24 V (50 bar) operation
  • 250 cm3 replaceable grease cartridge or 300 cm3 oil container
  • Error messages via display, LED and multi-function interface

Specifications

Outlets 2 (hose D = 6 mm)
Metering 0.15 cm3 per outlet
Operating temperature -20 to +70 C
Protection class IP54
Mass 1 kg
Source Schaeffler Lubricators TPI 252, p. 14, 26
ARCALUB-C2-2P Order no.: 086872931-0000-10 | Supply: 3 V lithium battery | Lubricant: Grease | Pressure: 30 bar
ARCALUB-C2-2P-24VDC Order no.: 086873105-0000-10 | Supply: DC 24 V | Lubricant: Grease | Pressure: 50 bar
ARCALUB-C2-2P-OIL-24VDC Order no.: 092246265-0000-10 | Supply: DC 24 V | Lubricant: Oil (300 cm3) | Pressure: 50 bar
ARCALUB-C2-2P-EKIT Order no.: 092662269-0000-10 | Supply: Battery | Lubricant: Grease | Content: Electric motor retrofit kit
ARCALUB-C2-2P-24VDC-EKIT Order no.: 092662277-0000-10 | Supply: DC 24 V, 10 m cable | Lubricant: Grease | Content: Electric motor retrofit kit
DEMO-ARCALUB-C2-SET Order no.: 089395433-0000-10 | Supply: Mains power pack | Content: Demo case
LubricatorsFAG
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

FAG CONCEPT2 Automatic Lubricators (ARCALUB-C2, 2 Outlets)

Brand FAG·Lubricators

Available part numbers (6)

ARCALUB-C2-2P, ARCALUB-C2-2P-24VDC, ARCALUB-C2-2P-OIL-24VDC, ARCALUB-C2-2P-EKIT, ARCALUB-C2-2P-24VDC-EKIT, DEMO-ARCALUB-C2-SET

How to order

Send the FAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ARCALUB-C2-2POrder no.: 086872931-0000-10 | Supply: 3 V lithium battery | Lubricant: Grease | Pressure: 30 bar
ARCALUB-C2-2P-24VDCOrder no.: 086873105-0000-10 | Supply: DC 24 V | Lubricant: Grease | Pressure: 50 bar
ARCALUB-C2-2P-OIL-24VDCOrder no.: 092246265-0000-10 | Supply: DC 24 V | Lubricant: Oil (300 cm3) | Pressure: 50 bar
ARCALUB-C2-2P-EKITOrder no.: 092662269-0000-10 | Supply: Battery | Lubricant: Grease | Content: Electric motor retrofit kit
ARCALUB-C2-2P-24VDC-EKITOrder no.: 092662277-0000-10 | Supply: DC 24 V, 10 m cable | Lubricant: Grease | Content: Electric motor retrofit kit
DEMO-ARCALUB-C2-SETOrder no.: 089395433-0000-10 | Supply: Mains power pack | Content: Demo case
