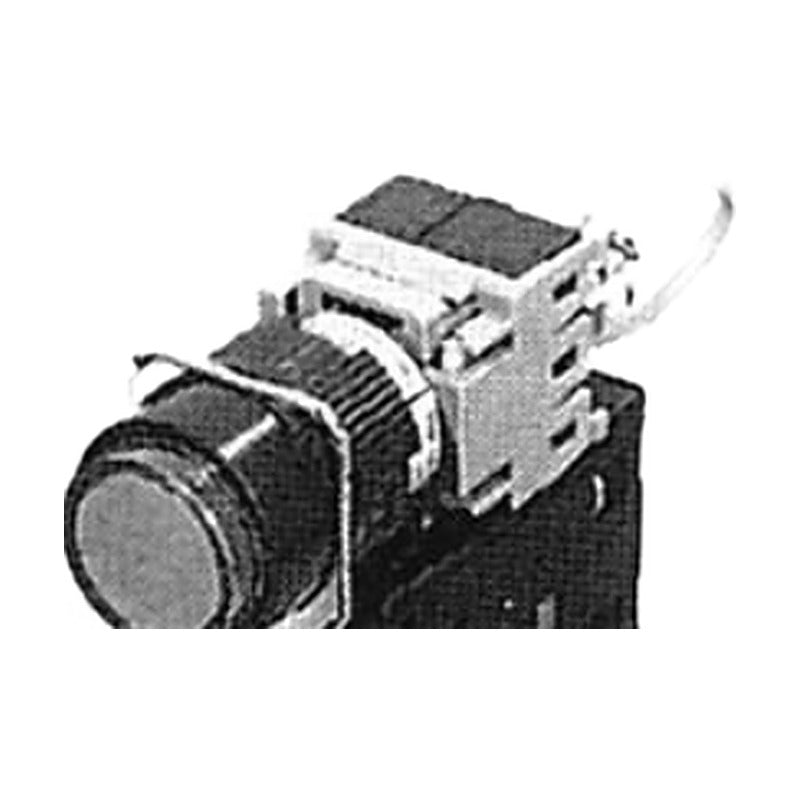

Fuji Electric AH164/AH165 Series Illuminated Pushbuttons (16 mm)

Fuji Electric AH164/AH165 Series Illuminated Pushbuttons (16 mm)

AH164 (dust-tight), AH165 (oil-tight) and AH165-2 series illuminated pushbutton switches in round, square and rectangular operator styles.

Key features

  • Momentary and alternate action
  • Round, square, rectangular and guarded operators
  • LED, incandescent or neon lamps (by series)
  • Lamp voltages 5 V to 220 V as listed in the type designation
  • Contacts 1a1b, 2a2b, 3a3b

Specifications

Mounting 16 mm class panel cut-out
Terminals Solder tab (#110) or wrapping (W suffix)
Ordering Base type + colour + lamp voltage + contacts + lamp type
Example AH165-2LR11E3-W
Series AH164 / AH165 / AH165-2
Source Fuji Electric AH164/AH165 command switch catalogue, p. 4-7
AH164-L Series: AH164 (dust-tight) | Operator: Round extended | Action: Momentary
AH165-L Series: AH165 (oil-tight) | Operator: Round extended | Action: Momentary
AH164-L5 Series: AH164 (dust-tight) | Operator: Round extended | Action: Alternate
AH165-L5 Series: AH165 (oil-tight) | Operator: Round extended | Action: Alternate
AH164-SL Series: AH164 (dust-tight) | Operator: Square flush | Action: Momentary
AH165-SL Series: AH165 (oil-tight) | Operator: Square flush | Action: Momentary
AH164-SL5 Series: AH164 (dust-tight) | Operator: Square flush | Action: Alternate
AH165-SL5 Series: AH165 (oil-tight) | Operator: Square flush | Action: Alternate
AH164-TL Series: AH164 (dust-tight) | Operator: Rectangular flush | Action: Momentary
AH165-TL Series: AH165 (oil-tight) | Operator: Rectangular flush | Action: Momentary
AH164-TL5 Series: AH164 (dust-tight) | Operator: Rectangular flush | Action: Alternate
AH165-TL5 Series: AH165 (oil-tight) | Operator: Rectangular flush | Action: Alternate
AH164-TGL Series: AH164 (dust-tight) | Operator: Guarded rectangular flush | Action: Momentary
AH165-TGL Series: AH165 (oil-tight) | Operator: Guarded rectangular flush | Action: Momentary
AH164-TGL5 Series: AH164 (dust-tight) | Operator: Guarded rectangular flush | Action: Alternate
AH165-TGL5 Series: AH165 (oil-tight) | Operator: Guarded rectangular flush | Action: Alternate
AH164-SGL Series: AH164 (dust-tight) | Operator: Guarded square flush | Action: Momentary
AH165-SGL Series: AH165 (oil-tight) | Operator: Guarded square flush | Action: Momentary
AH164-SGL5 Series: AH164 (dust-tight) | Operator: Guarded square flush | Action: Alternate
AH165-SGL5 Series: AH165 (oil-tight) | Operator: Guarded square flush | Action: Alternate
AH165-2FL Series: AH165-2 (oil-tight) | Operator: Round flush | Action: Momentary
AH165-2FL5 Series: AH165-2 (oil-tight) | Operator: Round flush | Action: Alternate
AH165-2SFL Series: AH165-2 (oil-tight) | Operator: Square flush | Action: Momentary
AH165-2SFL5 Series: AH165-2 (oil-tight) | Operator: Square flush | Action: Alternate
AH165-2EL Series: AH165-2 (oil-tight) | Operator: Round extended | Action: Momentary
AH165-2EL5 Series: AH165-2 (oil-tight) | Operator: Round extended | Action: Alternate
AH165-2SEL Series: AH165-2 (oil-tight) | Operator: Square extended | Action: Momentary
AH165-2SEL5 Series: AH165-2 (oil-tight) | Operator: Square extended | Action: Alternate
AH165-2SCL Series: AH165-2 (oil-tight) | Operator: Square extended recessed | Action: Momentary
AH165-2SCL5 Series: AH165-2 (oil-tight) | Operator: Square extended recessed | Action: Alternate
AH165-2ML Series: AH165-2 (oil-tight) | Operator: Mushroom, round bezel | Action: Momentary
AH165-2YML Series: AH165-2 (oil-tight) | Operator: Mushroom, square bezel | Action: Momentary
AH165-2VL Series: AH165-2 (oil-tight) | Operator: Push-lock, round bezel | Action: Push-lock
AH165-2YVL Series: AH165-2 (oil-tight) | Operator: Push-lock, square bezel | Action: Push-lock
Illuminated PushbuttonsFuji Electric
34 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Fuji Electric AH164/AH165 Series Illuminated Pushbuttons (16 mm)

Brand Fuji Electric·Illuminated Pushbuttons

Available part numbers (34)

AH164-L, AH165-L, AH164-L5, AH165-L5, AH164-SL, AH165-SL, AH164-SL5, AH165-SL5, AH164-TL, AH165-TL + 24 more — see full table ↓

How to order

Send the Fuji Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AH164-LSeries: AH164 (dust-tight) | Operator: Round extended | Action: Momentary
AH165-LSeries: AH165 (oil-tight) | Operator: Round extended | Action: Momentary
AH164-L5Series: AH164 (dust-tight) | Operator: Round extended | Action: Alternate
AH165-L5Series: AH165 (oil-tight) | Operator: Round extended | Action: Alternate
AH164-SLSeries: AH164 (dust-tight) | Operator: Square flush | Action: Momentary
AH165-SLSeries: AH165 (oil-tight) | Operator: Square flush | Action: Momentary
AH164-SL5Series: AH164 (dust-tight) | Operator: Square flush | Action: Alternate
AH165-SL5Series: AH165 (oil-tight) | Operator: Square flush | Action: Alternate
AH164-TLSeries: AH164 (dust-tight) | Operator: Rectangular flush | Action: Momentary
AH165-TLSeries: AH165 (oil-tight) | Operator: Rectangular flush | Action: Momentary
AH164-TL5Series: AH164 (dust-tight) | Operator: Rectangular flush | Action: Alternate
AH165-TL5Series: AH165 (oil-tight) | Operator: Rectangular flush | Action: Alternate
AH164-TGLSeries: AH164 (dust-tight) | Operator: Guarded rectangular flush | Action: Momentary
AH165-TGLSeries: AH165 (oil-tight) | Operator: Guarded rectangular flush | Action: Momentary
AH164-TGL5Series: AH164 (dust-tight) | Operator: Guarded rectangular flush | Action: Alternate
AH165-TGL5Series: AH165 (oil-tight) | Operator: Guarded rectangular flush | Action: Alternate
AH164-SGLSeries: AH164 (dust-tight) | Operator: Guarded square flush | Action: Momentary
AH165-SGLSeries: AH165 (oil-tight) | Operator: Guarded square flush | Action: Momentary
AH164-SGL5Series: AH164 (dust-tight) | Operator: Guarded square flush | Action: Alternate
AH165-SGL5Series: AH165 (oil-tight) | Operator: Guarded square flush | Action: Alternate
AH165-2FLSeries: AH165-2 (oil-tight) | Operator: Round flush | Action: Momentary
AH165-2FL5Series: AH165-2 (oil-tight) | Operator: Round flush | Action: Alternate
AH165-2SFLSeries: AH165-2 (oil-tight) | Operator: Square flush | Action: Momentary
AH165-2SFL5Series: AH165-2 (oil-tight) | Operator: Square flush | Action: Alternate
AH165-2ELSeries: AH165-2 (oil-tight) | Operator: Round extended | Action: Momentary
AH165-2EL5Series: AH165-2 (oil-tight) | Operator: Round extended | Action: Alternate
AH165-2SELSeries: AH165-2 (oil-tight) | Operator: Square extended | Action: Momentary
AH165-2SEL5Series: AH165-2 (oil-tight) | Operator: Square extended | Action: Alternate
AH165-2SCLSeries: AH165-2 (oil-tight) | Operator: Square extended recessed | Action: Momentary
AH165-2SCL5Series: AH165-2 (oil-tight) | Operator: Square extended recessed | Action: Alternate
AH165-2MLSeries: AH165-2 (oil-tight) | Operator: Mushroom, round bezel | Action: Momentary
AH165-2YMLSeries: AH165-2 (oil-tight) | Operator: Mushroom, square bezel | Action: Momentary
AH165-2VLSeries: AH165-2 (oil-tight) | Operator: Push-lock, round bezel | Action: Push-lock
AH165-2YVLSeries: AH165-2 (oil-tight) | Operator: Push-lock, square bezel | Action: Push-lock
